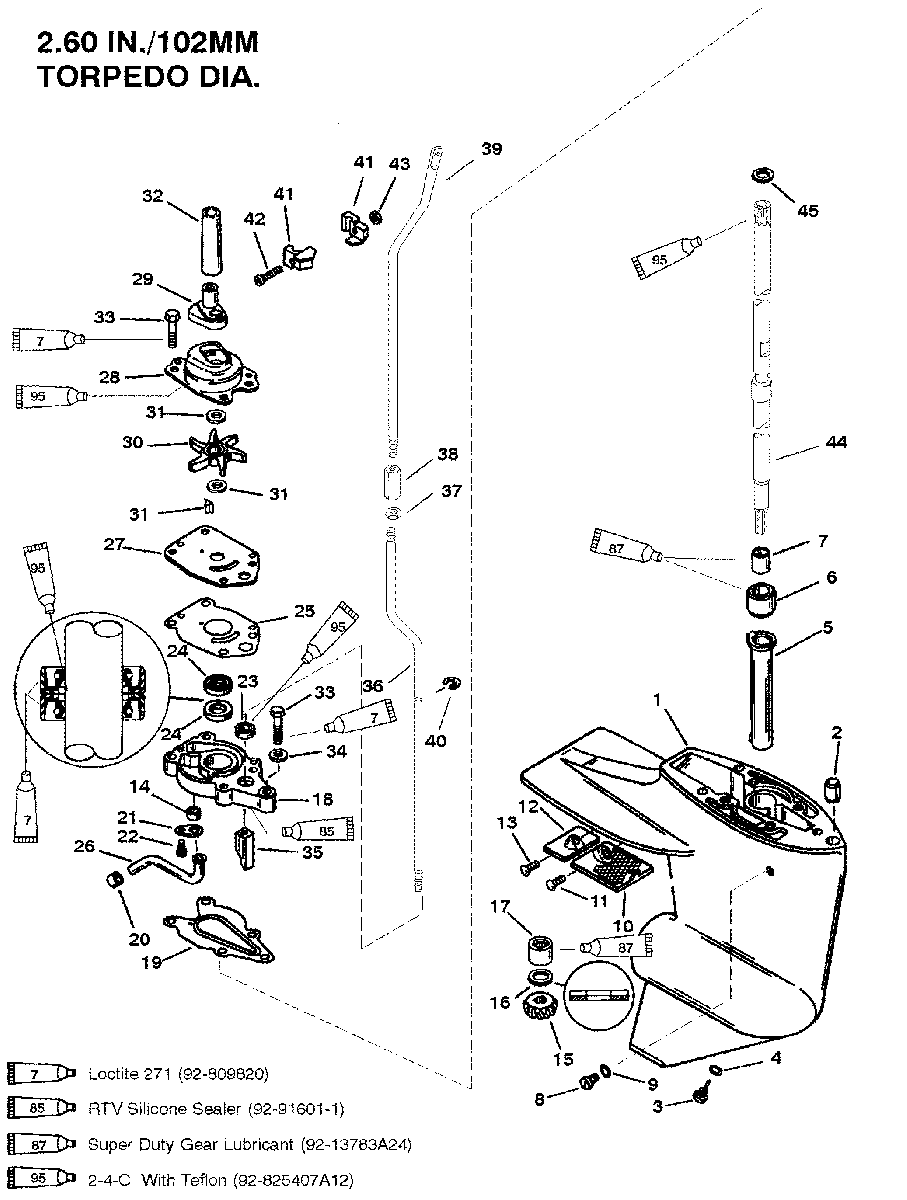

GEAR HOUSING (DRIVE SHAFT)(2.00:1 GEAR RATIO) для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909
-
№АртикулНазвание
-
-1666-8833T25 GEAR HOUSING-COMPLETE
(SHORT) BLACKGEAR HOUSING-COMPLETE
(SHORT) BLACK -
-1666-8833T27 GEAR HOUSING-COMPLETE
(LONG) BLACKGEAR HOUSING-COMPLETE
(LONG) BLACK -
-1666-8833T26 GEAR HOUSING-COMPLETE
(SHORT) GRAYGEAR HOUSING-COMPLETE
(SHORT) GRAY -
-1666-8833T28 GEAR HOUSING-COMPLETE
(LONG) GRAYGEAR HOUSING-COMPLETE
(LONG) GRAY -
11600-8M0083312 GEAR HOUSING
(BLACK)GEAR HOUSING
(BLACK) -
11600-8M0083312 GEAR HOUSING
(GRAY)GEAR HOUSING
(GRAY) -
223-12009 BUSHING-GEAR HOUSINGBUSHING-GEAR HOUSING
-
322-8M0058389 DRAIN SCREWDRAIN SCREW
-
412-191833 SEALING WASHERSEALING WASHER
-
5822244A1 SLEEVE ASSEMBLYSLEEVE ASSEMBLY
-
623-823944 SLEEVESLEEVE
-
723-823943 BUSHINGBUSHING
-
810-79953Q04 SCREW PLUG KITSCREW PLUG KIT
-
912-191833 SEALING WASHERSEALING WASHER
-
1035-421991 SCREENSCREEN
-
1110-13954 SCREWSCREW
-
1297-42121Q02 ANODE ASSEMBLYANODE ASSEMBLY
-
1310-13954 SCREWSCREW
-
1426-42133 SEALSEAL
-
1543-8219251 PINION GEAR (13 TEETH)PINION GEAR (13 TEETH)
-
1612-41369 WASHER-THRUSTWASHER-THRUST
-
1731-22756 BEARINGBEARING
-
1846-42040T5 WATER PUMP BASEWATER PUMP BASE
-
1927-192043 GASKETGASKET
-
2026-33613 SEALSEAL
-
2142375 RETAINERRETAINER
-
2210-48408 SCREWSCREW
-
2325-822236 QUAD RINGQUAD RING
-
2426-413651 OIL SEALOIL SEAL
-
2527-19202001 GASKETGASKET
-
2632-42185A1 WATER TUBEWATER TUBE
-
2742200 FACE PLATEFACE PLATE
-
2846-42089A2 COVER ASSEMBLYCOVER ASSEMBLY
-
2926-421021 SEALSEAL
-
3047-42038Q02 IMPELLERIMPELLER
-
3128-42376A2 KEY ASSEMBLYKEY ASSEMBLY
-
32444671 GUIDEGUIDE
-
3310-82684430 SCREW-WATER PUMPSCREW-WATER PUMP
-
3412-29245 WASHERWASHER
-
3542039 CAM-SHIFTCAM-SHIFT
-
36825536 SHIFT SHAFT
(SHORT)SHIFT SHAFT
(SHORT) -
36826873 SHIFT SHAFT
(LONG)SHIFT SHAFT
(LONG) -
3711-400212 NUTNUT
-
38822419 COUPLERCOUPLER
-
39826875 SHIFT SHAFT (UPPER)SHIFT SHAFT (UPPER)
-
4053-42389 E-RINGE-RING
-
418M0036770 GUIDEGUIDE
-
4210-40011109 SCREWSCREW
-
4311-401385 NUT-GUIDE SCREWNUT-GUIDE SCREW
-
4445-825537 DRIVE SHAFT
(SHORT)DRIVE SHAFT
(SHORT) -
4445-825843 DRIVE SHAFT
(LONG)DRIVE SHAFT
(LONG) -
4512-822248 THRUST WASHERTHRUST WASHER
-
-26-41365A3 SEAL KITSEAL KIT
-
-46-42089A5 REPAIR KITREPAIR KIT
-
-27-825847A95 ENGINE GASKET SETENGINE GASKET SET
