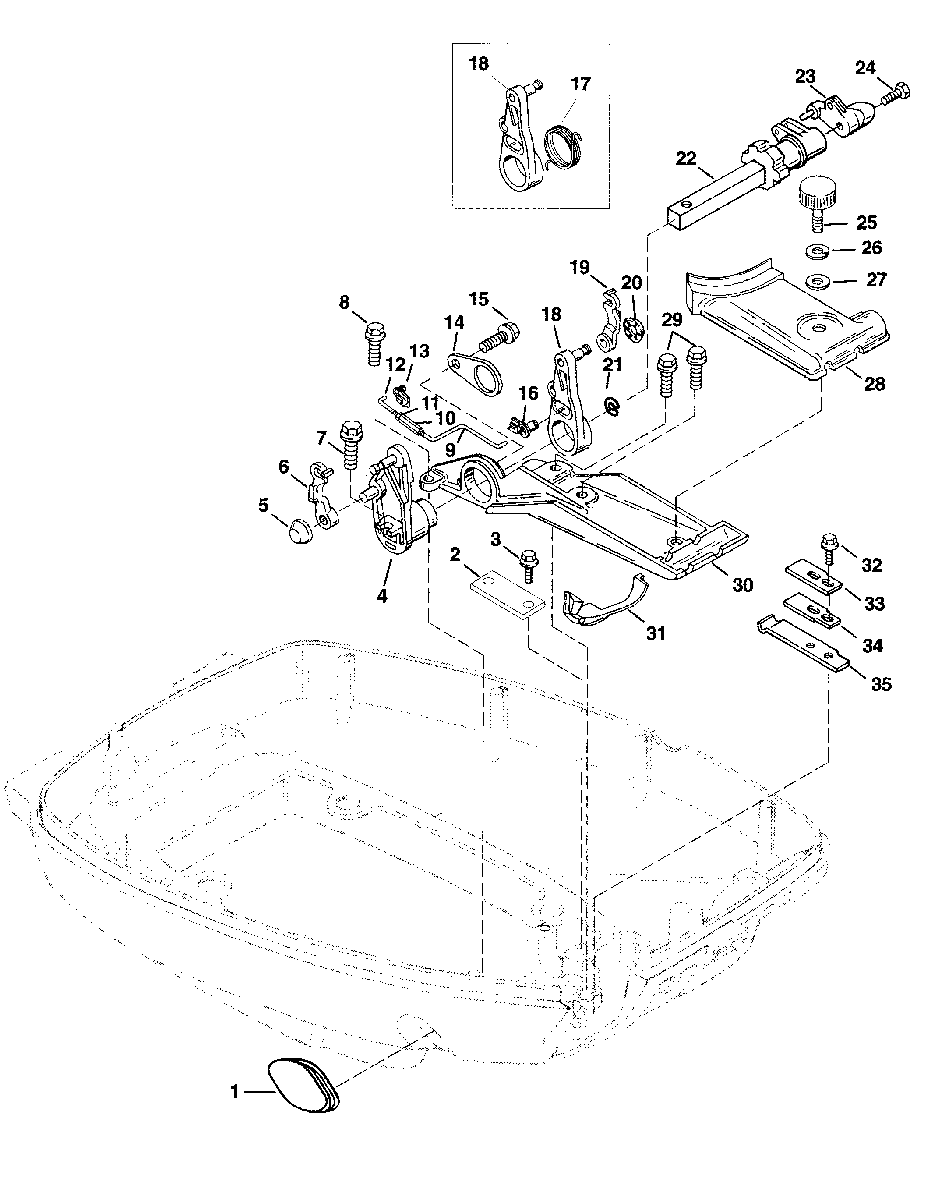

THROTTLE LINKAGE (ELECTRIC-REMOTE CONTROL) для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909
-
№АртикулНазвание
-
1826037 PLUGPLUG
-
28280471 STRAPSTRAP
-
310-4006731 SCREW (M6 X 16)SCREW (M6 X 16)
-
4826025A1 SHIFT ARMSHIFT ARM
-
511-825677 NUT-PUSHNUT-PUSH
-
6822459 RETAINERRETAINER
-
710-82239312 SCREW (M5 X 12)SCREW (M5 X 12)
-
810-8M4503518 SCREW (M6 X 20)SCREW (M6 X 20)
-
9828050 LINKLINK
-
10826065 LINK-JOINTLINK-JOINT
-
1111-8237515 NUTNUT
-
12825790 THROTTLE LINKTHROTTLE LINK
-
13826137 LINK-JOINTLINK-JOINT
-
14826034 PLATEPLATE
-
1510-4006731 SCREW (M6 X 16)SCREW (M6 X 16)
-
16828049 SLIDESLIDE
-
17NLA SPRING
(DESIGN I - ORDER 826028A2)SPRING
(DESIGN I - ORDER 826028A2) -
18826028A2 THROTTLE ARMTHROTTLE ARM
-
19822459 RETAINERRETAINER
-
2011-825677 NUT-PUSHNUT-PUSH
-
2153-8237951 E CLIPE CLIP
-
22852494A5 SHIFT SHAFTSHIFT SHAFT
-
23826063 INTERLOCK LEVERINTERLOCK LEVER
-
2410-40011111 SCREW (M5 X 35)SCREW (M5 X 35)
-
2510-825510 SCREWSCREW
-
2613-400256 LOCKWASHERLOCKWASHER
-
2712-4002316 WASHERWASHER
-
28826031 COVERCOVER
-
2910-8M4503518 SCREW (M6 X 20)SCREW (M6 X 20)
-
308260241 PLATFORMPLATFORM
-
31828007 SEALSEAL
-
3210-82239312 SCREW (M5 X 12)SCREW (M5 X 12)
-
33824994 PLATEPLATE
-
3424-824993 SPRINGSPRING
-
3524-824992 SPRINGSPRING
