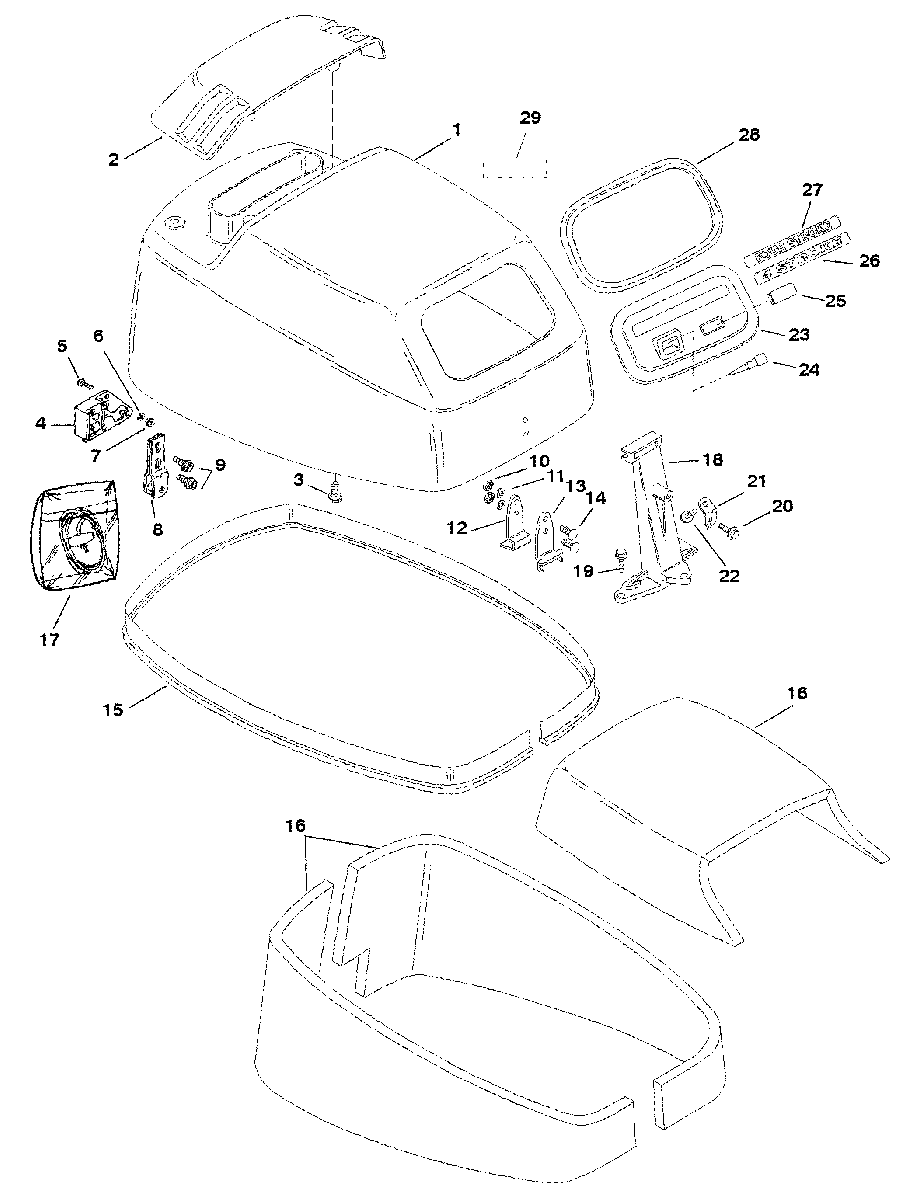

TOP COWL для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909
-
№АртикулНазвание
-
1114-854654T3 TOP COWL
(BLACK) S/N-0H013400 & UPTOP COWL
(BLACK) S/N-0H013400 & UP -
1114-854654T4 TOP COWL
(SILVER) S/N-0H013400 & UPTOP COWL
(SILVER) S/N-0H013400 & UP -
1114-854654T3 TOP COWL
(BLACK) S/N-0H013399 & BELOWTOP COWL
(BLACK) S/N-0H013399 & BELOW -
1114-854654T4 TOP COWL
(SILVER) S/N-0H013399 & BELOWTOP COWL
(SILVER) S/N-0H013399 & BELOW -
2825554F1 AIR INLET SHIELD
(BLACK) S/N-0H013399 & BELOWAIR INLET SHIELD
(BLACK) S/N-0H013399 & BELOW -
2825554F2 AIR INLET SHIELD
(SILVER) S/N-0H013399 & BELOWAIR INLET SHIELD
(SILVER) S/N-0H013399 & BELOW -
310-4006731 SCREW (M6 X 16)
S/N-0H013399 & BELOWSCREW (M6 X 16)
S/N-0H013399 & BELOW -
48M0038412 BRACKET (REAR)BRACKET (REAR)
-
510-8231871 SCREW (M4 X 14.5)SCREW (M4 X 14.5)
-
613-26995 LOCKWASHERLOCKWASHER
-
711-8237515 NUTNUT
-
8893763 BRACKETBRACKET
-
910-4006731 SCREW (M6 X 16)SCREW (M6 X 16)
-
1011-8237515 NUTNUT
-
1113-26995 LOCKWASHERLOCKWASHER
-
12826649 LATCHLATCH
-
13827702T COVERCOVER
-
1410-8231871 SCREW (M4 X 14.5)SCREW (M4 X 14.5)
-
158M0043391 SEALSEAL
-
16825567A1 SOUND BLANKET KITSOUND BLANKET KIT
-
1747341A11 STARTER ROPESTARTER ROPE
-
188258271 SUPPORTSUPPORT
-
1910-8M4503518 SCREW (M6 X 20)SCREW (M6 X 20)
-
2010-82129114 SCREW (M6 X 14)SCREW (M6 X 14)
-
21827501 BRACKETBRACKET
-
2210-40011126 SCREW (M6 X 13)SCREW (M6 X 13)
-
23825655A5 HANDLE REST
I.D. OF REST ROPE HOLE IS 1/4 IN.HANDLE REST
I.D. OF REST ROPE HOLE IS 1/4 IN. -
2419-822513 PLUG (REMOTE CONTROL)
I.D. OF REST ROPE HOLE IS 1/4 IN.PLUG (REMOTE CONTROL)
I.D. OF REST ROPE HOLE IS 1/4 IN. -
23825655A5 HANDLE REST
I.D. OF REST ROPE HOLE IS 1/3 IN.HANDLE REST
I.D. OF REST ROPE HOLE IS 1/3 IN. -
2419-822513002 PLUG
I.D. OF REST ROPE HOLE IS 1/3 IN.PLUG
I.D. OF REST ROPE HOLE IS 1/3 IN. -
2519-827870 PLUG-LIGHT (REMOTE CONTROL)PLUG-LIGHT (REMOTE CONTROL)
-
2637-8302584 DECAL
(BLACK/TRACKER) (S/N-0H013399 & BELOW)DECAL
(BLACK/TRACKER) (S/N-0H013399 & BELOW) -
2737-8500534 DECAL
(BLACK/TRACKER) (S/N-0H013400 & UP)DECAL
(BLACK/TRACKER) (S/N-0H013400 & UP) -
2737-8500534 DECAL
(GRAY) (S/N-0H009515 & UP)DECAL
(GRAY) (S/N-0H009515 & UP) -
2737-8263367 DECAL
(GRAY) (S/N-0H009514 & BELOW)DECAL
(GRAY) (S/N-0H009514 & BELOW) -
288249952 SEALSEAL
-
2937-855577A23 DECAL-EPA INFO
(1998)DECAL-EPA INFO
(1998)
