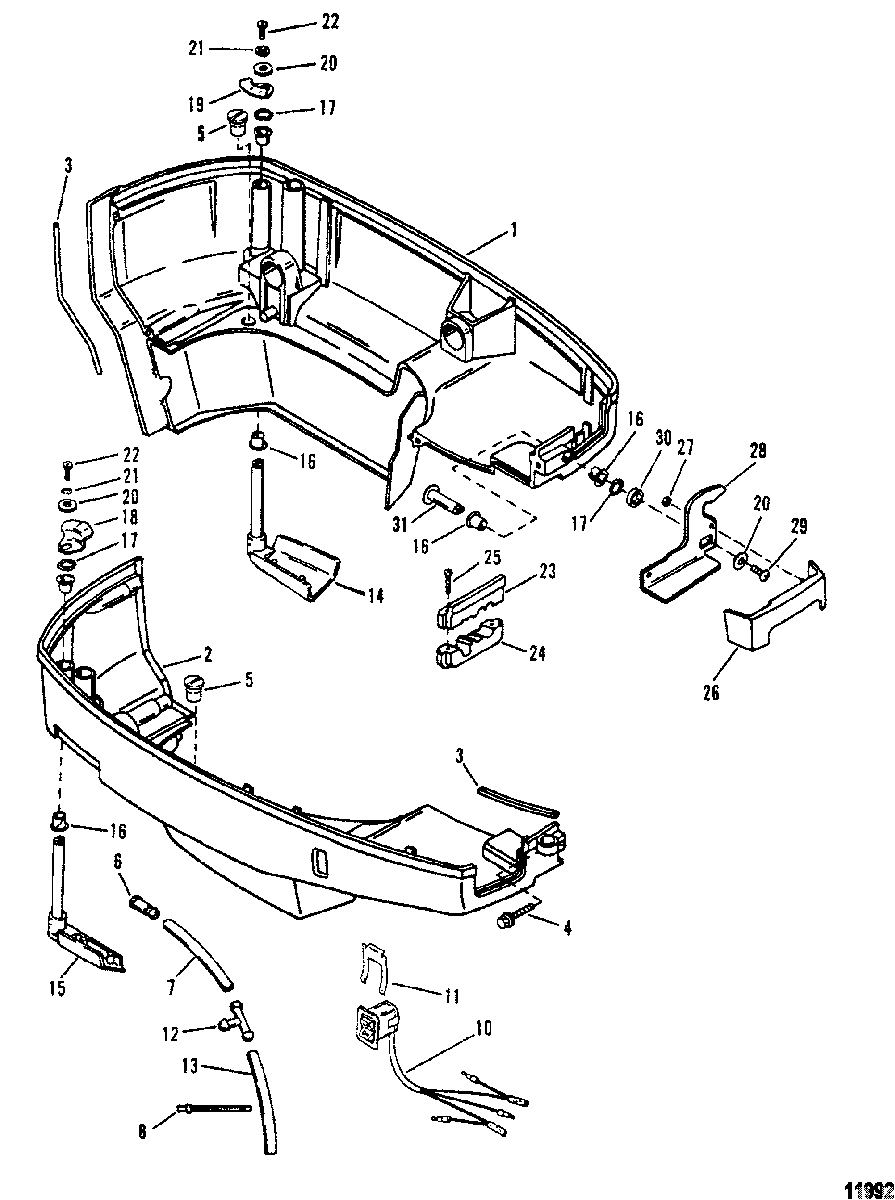

BOTTOM COWL для Mercury - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
12197-9744A16 BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)
PORTBOTTOM COWL ASSEMBLY (BLACK)(Without Decals)
PORT -
12197-9744A16 BOTTOM COWL ASSEMBLY , Gray (Without Decals)
PORTBOTTOM COWL ASSEMBLY , Gray (Without Decals)
PORT -
12197-9744A16 BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)
PORTBOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)
PORT -
22197-9745A5 BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)
STARBOARDBOTTOM COWL ASSEMBLY (BLACK)(Without Decals)
STARBOARD -
22197-9745A6 BOTTOM COWL ASSEMBLY (GRAY)(Without Decals)
STARBOARDBOTTOM COWL ASSEMBLY (GRAY)(Without Decals)
STARBOARD -
22197-9745A7 BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)
STARBOARDBOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)
STARBOARD -
318701A1 SEAL KITSEAL KIT
-
410-18699 SCREW, (.250-20 x 1.320) (STARBOARD)SCREW, (.250-20 x 1.320) (STARBOARD)
-
521-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
622-813613 FITTINGFITTING
-
732-8M0108355 HOSE, (57.00 Inches Bulk)HOSE, (57.00 Inches Bulk)
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1087-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
118M0032848 RETAINERRETAINER
-
1222-815914 T-FITTINGT-FITTING
-
1332-77653101 HOSE, (24.500 Inches Bulk)HOSE, (24.500 Inches Bulk)
-
1419648A2 HANDLE ASSEMBLY (BLACK)
PORTHANDLE ASSEMBLY (BLACK)
PORT -
1419648A2 HANDLE ASSEMBLY (GRAY)
PORTHANDLE ASSEMBLY (GRAY)
PORT -
1419648A7 HANDLE ASSEMBLY (TRACKER)
PORTHANDLE ASSEMBLY (TRACKER)
PORT -
1519647A3 HANDLE ASSEMBLY (BLACK)
STARBOARDHANDLE ASSEMBLY (BLACK)
STARBOARD -
1519647A3 HANDLE ASSEMBLY (GRAY)
STARBOARDHANDLE ASSEMBLY (GRAY)
STARBOARD -
1519647A7 HANDLE ASSEMBLY (TRACKER)
STARBOARDHANDLE ASSEMBLY (TRACKER)
STARBOARD -
1623-65830 NYLINERNYLINER
-
1713-99611 WAVE WASHERWAVE WASHER
-
1819369 PAWLPAWL
-
1919370 PAWLPAWL
-
2012-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
2113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2210-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2354-19749 CLAMPCLAMP
-
2454-197481 CLAMPCLAMP
-
2510-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
2618872A1 COVER ASSEMBLY (BLACK)COVER ASSEMBLY (BLACK)
-
2618872A1 COVER ASSEMBLY (GRAY)COVER ASSEMBLY (GRAY)
-
2618872A4 COVER ASSEMBLY (TRACKER)COVER ASSEMBLY (TRACKER)
-
2711-8136921 LOCKNUTLOCKNUT
-
288130764 FRONT HANDLEFRONT HANDLE
-
2910-181921 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
3023-19666 BUSHINGBUSHING
-
3118727 RODROD
