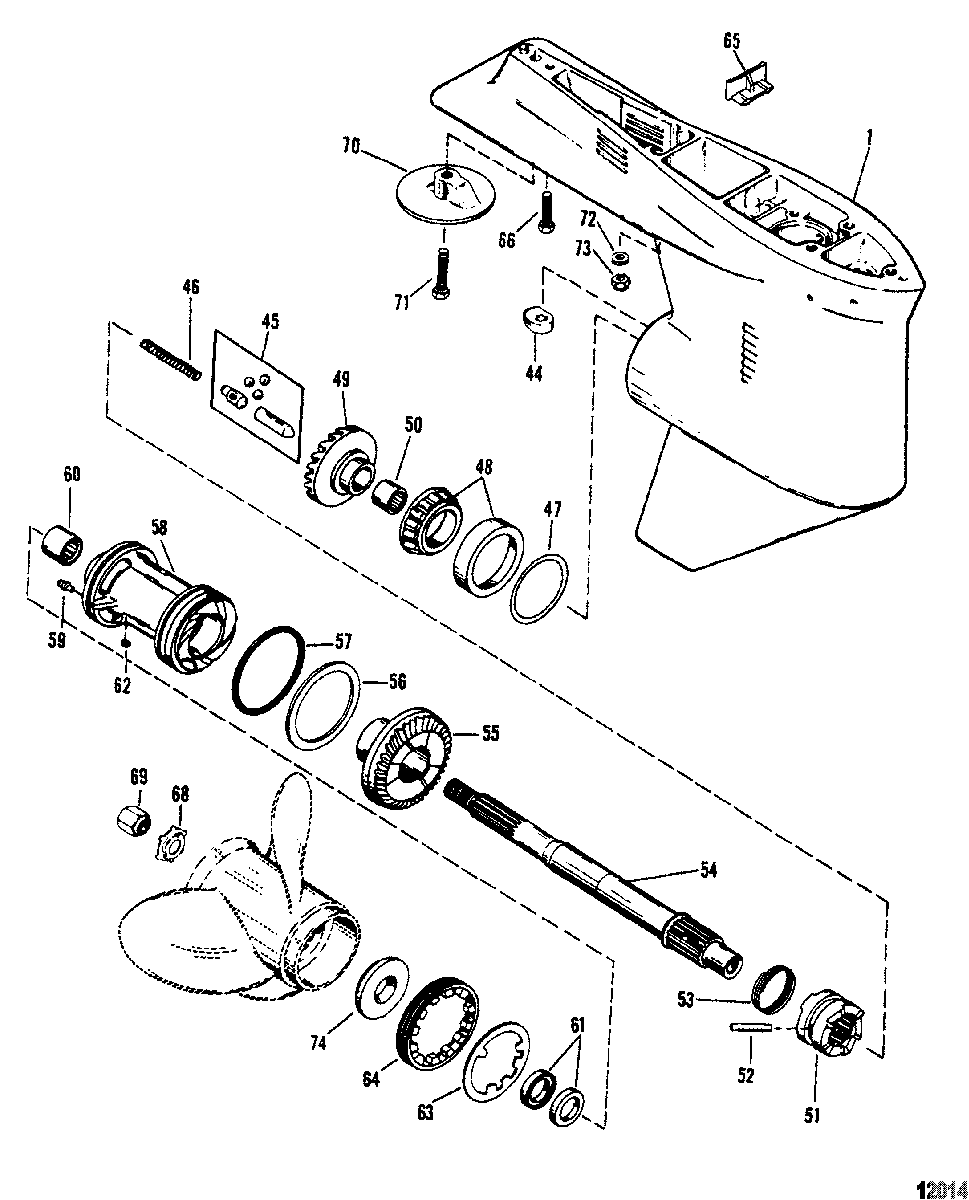

GEAR HSG(PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO) для Mercury - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
44760394 CAM, Shift ControlCAM, Shift Control
-
45850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
4624-30622 SPRINGSPRING
-
4715-8M0063266 SHIM SETSHIM SET
-
4831-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4943-16279A2 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5031-30895T BEARING, NeedleBEARING, Needle
-
5152-822539T CLUTCHCLUTCH
-
5217-8M0100263 PIN, CrossPIN, Cross
-
5324-30893 SPRINGSPRING
-
5444-12238T PROPELLER SHAFTPROPELLER SHAFT
-
55N.S.S. Not Sold Separate, Reverse Gear (PART OF 43-16279A2)Not Sold Separate, Reverse Gear (PART OF 43-16279A2)
-
5612-76358 THRUST WASHERTHRUST WASHER
-
5725-29976 O-RINGO-RING
-
5841529T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5922-98727 FITTING, GreaseFITTING, Grease
-
6031-30956T BEARING, NeedleBEARING, Needle
-
6126-76868 SEALSEAL
-
6228-30281 KEYKEY
-
6314-52700 TAB WASHERTAB WASHER
-
6452699 COVERCOVER
-
658M0039169 FILLER BLOCKFILLER BLOCK
-
6610-65210 SCREW, (.375-16 x 1.00)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSCREW, (.375-16 x 1.00)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
6814-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
6911-52707Q1 PROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTPROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7097-31640Q4 TRIM TAB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTRIM TAB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7110-806327 SCREW, (.437-14 x 1.750)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSCREW, (.437-14 x 1.750)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7212-45176 WASHER, (.453 x .812 x .105) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, (.453 x .812 x .105) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7311-34933 NUT, (.437-20) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTNUT, (.437-20) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7413191Q01 THRUST WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTHRUST WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-27-815791A92 GASKET SET, Engine
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTGASKET SET, Engine
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-26-89238A2 SEAL KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSEAL KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
