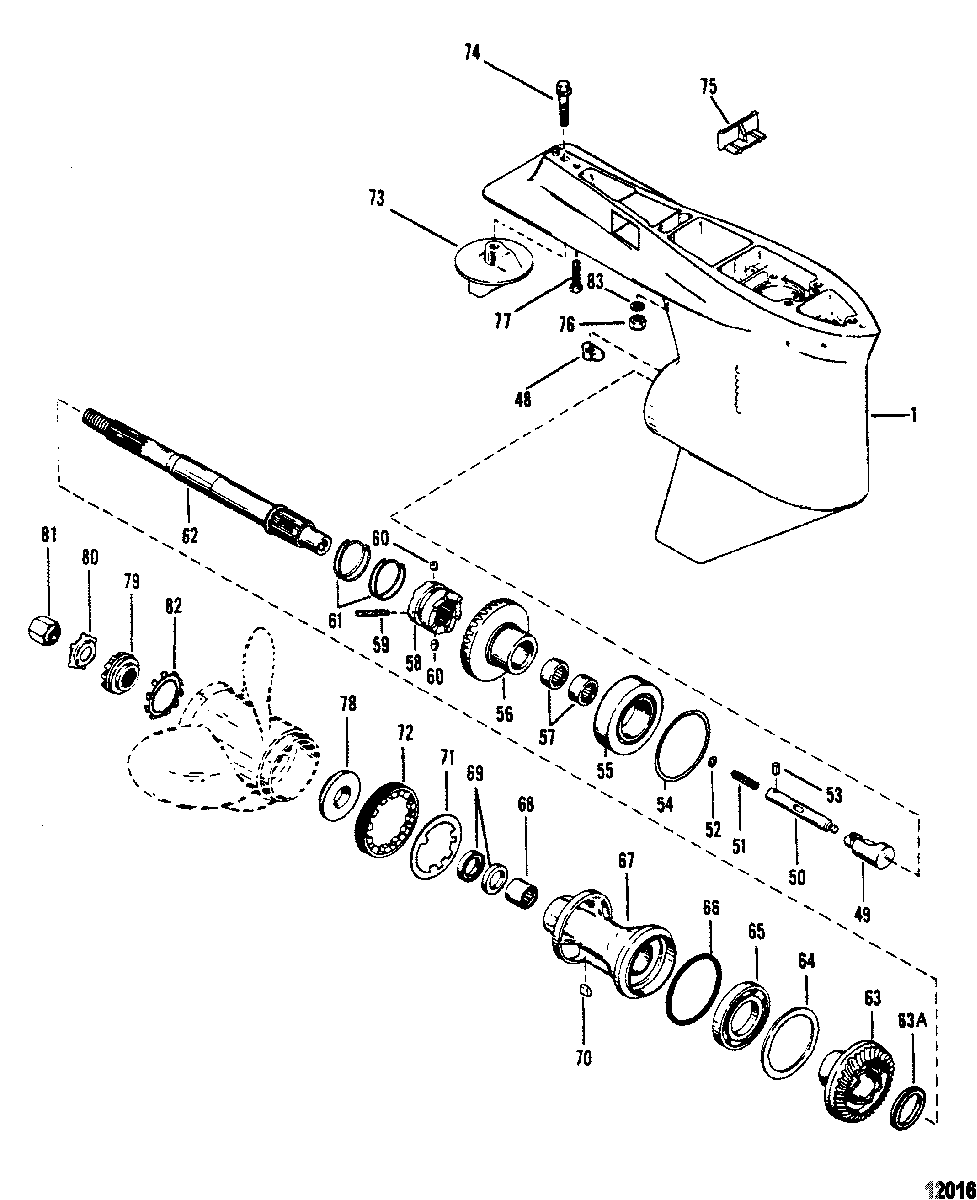

GEAR HOUSING(PROPSHAFT) для Mercury - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (BLACK)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (GRAY)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)
-
11647-9148T49 GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)
-
4989594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
48789562 SHIFT CAMSHIFT CAM
-
5079911A1 RODROD
-
5124-79910 SPRINGSPRING
-
5212-78910 WASHERWASHER
-
5317-8M0084245 PINPIN
-
5415-47397A1 SHIM SET (.002-3-5-10)SHIM SET (.002-3-5-10)
-
5531-78172A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
5643-44102A2 GEAR ASSEMBLY, Forward (135/150) (INCLS. REVERSE GEAR)
SN# 0G052417 & BelowGEAR ASSEMBLY, Forward (135/150) (INCLS. REVERSE GEAR)
SN# 0G052417 & Below -
5643-44102A7 GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)
SN# 0G052418 & UpGEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)
SN# 0G052418 & Up -
5643-16294A5 GEAR SET, HIGH ALTITUDE - 2.3:1 GEAR RATIOGEAR SET, HIGH ALTITUDE - 2.3:1 GEAR RATIO
-
5643-44104T2 GEAR ASSEMBLY, Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)
SN# 0G052417 & BelowGEAR ASSEMBLY, Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)
SN# 0G052417 & Below -
5643-44104A8 GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)
SN# 0G052418 & UpGEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)
SN# 0G052418 & Up -
5731-549281 BEARING, RollerBEARING, Roller
-
5852-8M0100493 CLUTCHCLUTCH
-
5917-8M0084243 PIN, CrossPIN, Cross
-
6017-78909 PIN, DetentPIN, Detent
-
6124-78962 SPRINGSPRING
-
6244-94148 PROPELLER SHAFTPROPELLER SHAFT
-
63N.S.S. Not Sold Separate, Reverse Gear (Part of Forward Gear Set)
SN# 0G052417 & BelowNot Sold Separate, Reverse Gear (Part of Forward Gear Set)
SN# 0G052417 & Below -
6343-824987A2 GEAR ASSEMBLY, Reverse (135/150)
SN# 0G052418 & UpGEAR ASSEMBLY, Reverse (135/150)
SN# 0G052418 & Up -
6343-824986A2 GEAR ASSEMBLY, Reverse (175/200/XR6/MAG. III)
SN# 0G052418 & UpGEAR ASSEMBLY, Reverse (175/200/XR6/MAG. III)
SN# 0G052418 & Up -
63A23-824108 SPACER
SN# 0G052418 & UpSPACER
SN# 0G052418 & Up -
64681001 RING, ThrustRING, Thrust
-
6530-88957T BEARING, BallBEARING, Ball
-
6625-31534 O-RINGO-RING
-
6743567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-30956T BEARING, NeedleBEARING, Needle
-
6926-76868 SEALSEAL
-
7028-30281 KEYKEY
-
7114-79447 TAB WASHERTAB WASHER
-
728M2000347 RETAINERRETAINER
-
7397-31640Q4 TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)
-
7331640T07 TRIM TAB (USE WITH GEAR HOUSING W/ANODES)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)
-
7410-806327 SCREW, (.437-14 x 1.750) (1-5/8")SCREW, (.437-14 x 1.750) (1-5/8")
-
758M0039169 FILLER BLOCKFILLER BLOCK
-
7611-34933 NUT, (.437-20) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTNUT, (.437-20) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7710-65210 SCREW, (.375-16 x 1.00)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSCREW, (.375-16 x 1.00)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7812-835467Q01 THRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTHRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
7912-31211Q03 WASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8014-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8111-52707Q1 PROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTPROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8213-423511 LOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTLOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8312-45176 WASHER, (.453 x .812 x .105) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, (.453 x .812 x .105) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-27-815791A92 GASKET SET, Engine
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTGASKET SET, Engine
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-26-89238A2 SEAL KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSEAL KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
