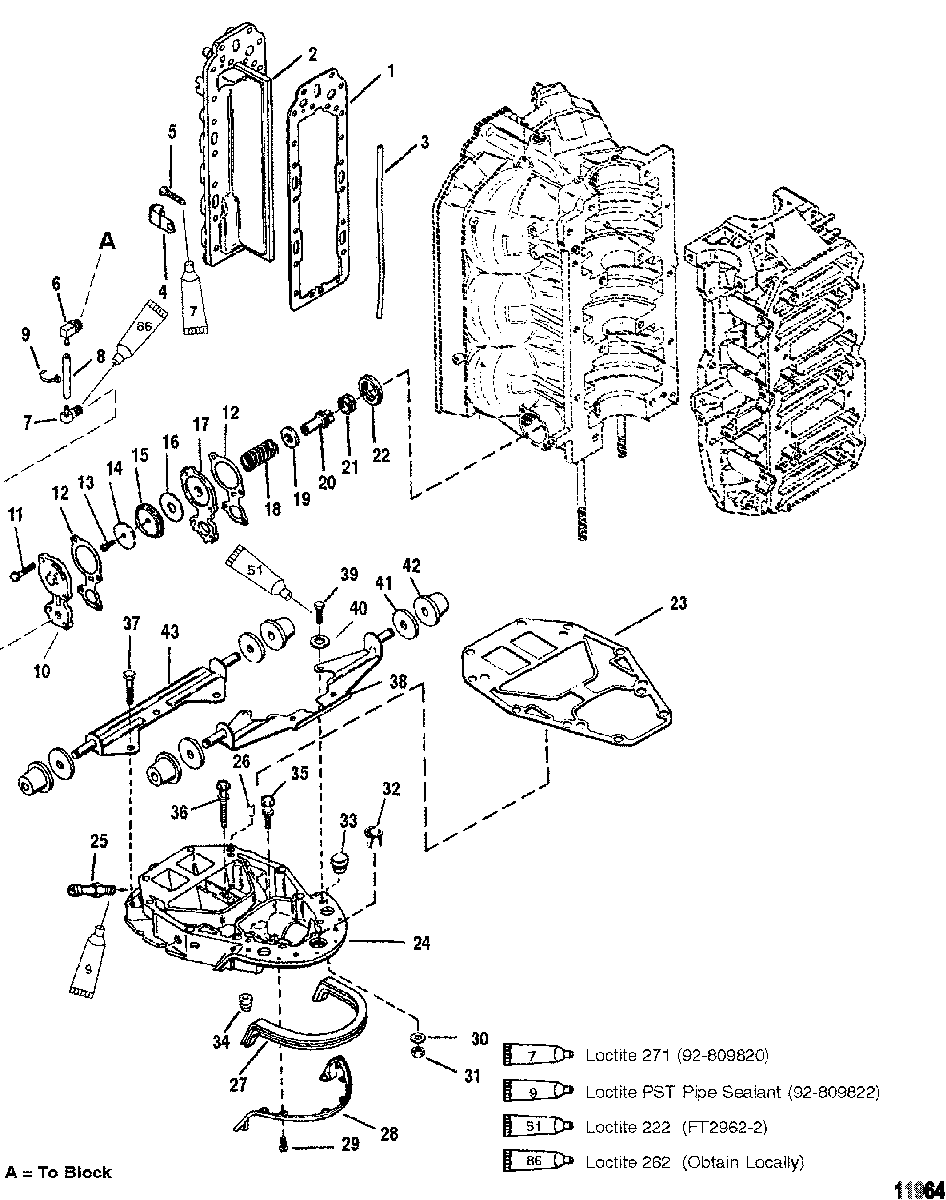

EXHAUST MANIFOLD AND EXHAUST PLATE для Mercury - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
127-190503 GASKETGASKET
-
2827323A2 PLATE, DividerPLATE, Divider
-
326-814754 SEAL, (12.50 Inches)SEAL, (12.50 Inches)
-
454-814634 CLAMPCLAMP
-
510-8263561 SCREW AND WASHER, (.312-18 x 1.500)SCREW AND WASHER, (.312-18 x 1.500)
-
622-8144301 FITTING, (.500-14)FITTING, (.500-14)
-
722-920071 FITTING, (.250-18) (90 DEGREES)FITTING, (.250-18) (90 DEGREES)
-
832-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 23.5 Inches)HOSE, (57.00 Inches Bulk) (Cut to 23.5 Inches)
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
108M0039767 COVERCOVER
-
1110-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1227-78690002 GASKETGASKET
-
1310-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1412-76451 WASHERWASHER
-
15144791 DIAPHRAGMDIAPHRAGM
-
1616496 DEFLECTOR, WaterDEFLECTOR, Water
-
1716497A1 PLATEPLATE
-
1824-64878 SPRING, (Black)SPRING, (Black)
-
1912-85303 WASHERWASHER
-
2014480 POPPETPOPPET
-
2125-64872 GROMMETGROMMET
-
2265848 CARRIERCARRIER
-
2327-991764 GASKETGASKET
-
2418260T2 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
2522-89772Q1 CONNECTOR, (.125-27) (STRAIGHT)CONNECTOR, (.125-27) (STRAIGHT)
-
2617-43044 PIN, DowelPIN, Dowel
-
278M0043164 SEALSEAL
-
28680101 BRACKETBRACKET
-
2910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3012-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
3111-69254 NUTNUT
-
3223-27132 BUSHINGBUSHING
-
3325-19564001 GROMMETGROMMET
-
3425-12602002 GROMMET
SN# 0G201874 & BelowGROMMET
SN# 0G201874 & Below -
3425-19565002 GROMMET
SN# 0G201875 & UpGROMMET
SN# 0G201875 & Up -
3510-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
3610-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
3710-898833 SCREW, (.375-16 x 3.50)SCREW, (.375-16 x 3.50)
-
38812905T BRACKET ASSEMBLYBRACKET ASSEMBLY
-
3910-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
4012-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
4112-187031 WASHERWASHER
-
4225-18778001 GROMMETGROMMET
-
4318578T09 BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-812817R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & BelowPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & Below -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & UpPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & Up -
-823434R97 POWERHEAD ASSEMBLY
(Tracker 150)POWERHEAD ASSEMBLY
(Tracker 150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
