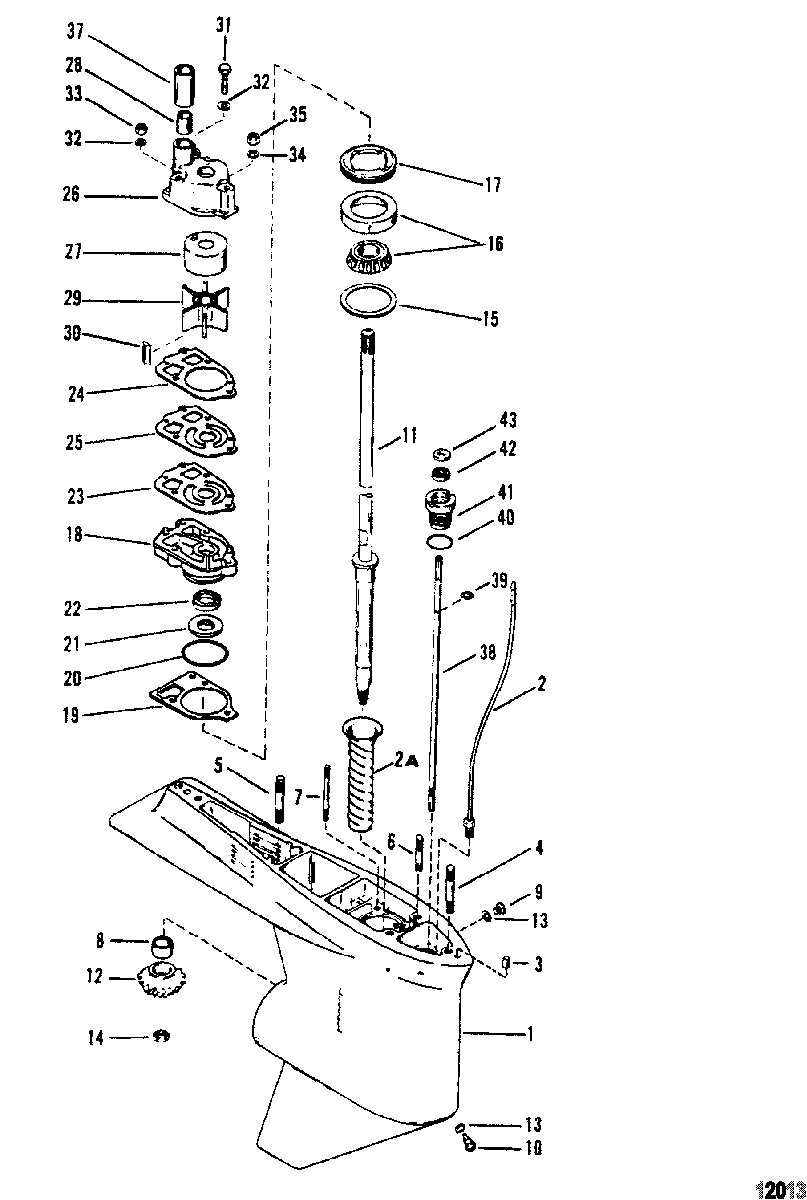

GEAR HSG(DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO) для Mercury - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
222-85822A10 CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)
-
2A23-43998 SLEEVE (OLD DESIGN)SLEEVE (OLD DESIGN)
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
416-786382 STUD, (.438 x 3.12)STUD, (.438 x 3.12)
-
516-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-35934A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
910-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
1022-8M0058389 SCREW, MagneticSCREW, Magnetic
-
1145-815168 DRIVESHAFTDRIVESHAFT
-
12N.S.S. Not Sold Separate, Pinion Gear (PART OF 43-16279A2)Not Sold Separate, Pinion Gear (PART OF 43-16279A2)
-
1312-191833 WASHER, FiberWASHER, Fiber
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING, RollerBEARING, Roller
-
178245191 RETAINERRETAINER
-
1846-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2126-89238 SEAL, OilSEAL, Oil
-
2226-16977 SEAL, OilSEAL, Oil
-
2327-8M0090319 GASKETGASKET
-
2427-858524 GASKETGASKET
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2748752T INSERTINSERT
-
2826-38970 SEALSEAL
-
2947-89984T3 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3723-29804T SLEEVESLEEVE
-
388152641 SHIFT SHAFT (USE W/O E-RING)SHIFT SHAFT (USE W/O E-RING)
-
388152641 SHIFT SHAFT, LOWER
USE WITH E-RINGSHIFT SHAFT, LOWER
USE WITH E-RING -
3953-29641 E RING
USE WITH E-RINGE RING
USE WITH E-RING -
4025-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4123-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4226-8164641 SEAL, OilSEAL, Oil
-
4312-77674 WASHER, SHIFT SHAFT BUSHINGWASHER, SHIFT SHAFT BUSHING
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
