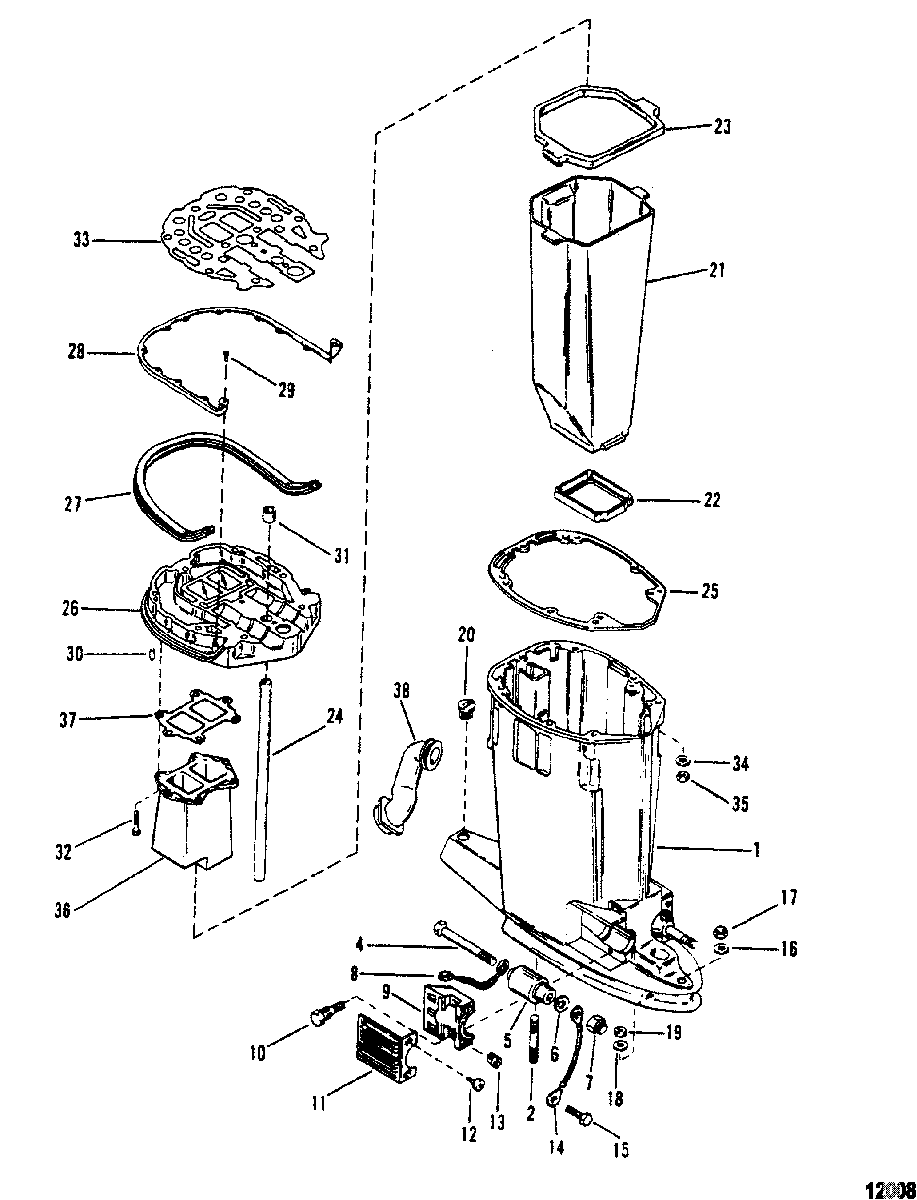

DRIVESHAFT HOUSING AND EXHAUST TUBE для Mercury - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11590-8343T10 HOUSING ASSEMBLY, Driveshaft (BLACK)
LONGHOUSING ASSEMBLY, Driveshaft (BLACK)
LONG -
11590-8343T10 HOUSING ASSEMBLY, Driveshaft (GRAY)
LONGHOUSING ASSEMBLY, Driveshaft (GRAY)
LONG -
11590-8343T12 HOUSING ASSEMBLY, Driveshaft (TRACKER)
LONGHOUSING ASSEMBLY, Driveshaft (TRACKER)
LONG -
13503-813563T1 HOUSING ASSEMBLY, Driveshaft (BLACK)
X-LONGHOUSING ASSEMBLY, Driveshaft (BLACK)
X-LONG -
13503-813563T1 HOUSING ASSEMBLY, Driveshaft (GRAY)
X-LONGHOUSING ASSEMBLY, Driveshaft (GRAY)
X-LONG -
11590-8343A13 HOUSING ASSEMBLY, Driveshaft (JET) (BLACK)HOUSING ASSEMBLY, Driveshaft (JET) (BLACK)
-
11590-8343A13 HOUSING ASSEMBLY, Driveshaft (JET) (GRAY)HOUSING ASSEMBLY, Driveshaft (JET) (GRAY)
-
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
410-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
577327 MOUNT (LONG)(JET)MOUNT (LONG)(JET)
-
577327 MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)
-
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-898832 NUT, (.500-20)NUT, (.500-20)
-
888238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
954-8M0036782 CLAMPCLAMP
-
1010-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
11100-8M4500752 COVER, Black (BLACK)COVER, Black (BLACK)
-
11100-8M4500752 COVER (GRAY)COVER (GRAY)
-
11100-8M4500752 COVER (TRACKER)COVER (TRACKER)
-
1210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1311-35521 NUTNUT
-
1488238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1510-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1612-48926 WASHERWASHER
-
1711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1812-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2019-64649 PLUGPLUG
-
2118276T TUBE, ExhaustTUBE, Exhaust
-
2266350001 SEAL (LOWER)SEAL (LOWER)
-
238M0039076 SEAL (UPPER)SEAL (UPPER)
-
2432-8M0042788 TUBE, Water (LONG)(JET)TUBE, Water (LONG)(JET)
-
2432-8M0042790 TUBE (X-LONG)TUBE (X-LONG)
-
2527-991734 GASKETGASKET
-
2618233A20 PLATE ASSEMBLYPLATE ASSEMBLY
-
278M0043165 SEALSEAL
-
2868011 BRACKETBRACKET
-
2910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3017-43044 PIN, DowelPIN, Dowel
-
3126-38970 SEALSEAL
-
3210-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
3327-183076 GASKETGASKET
-
3412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
3511-69254 NUTNUT
-
36812834A2 EXTENSION, Exhaust
(135/175/XR6/MAGNUM III/TRACKER)EXTENSION, Exhaust
(135/175/XR6/MAGNUM III/TRACKER) -
36879288T71 EXTENSION, Exhaust (150/200)(JET)EXTENSION, Exhaust (150/200)(JET)
-
3727-782461 GASKETGASKET
-
38814618 BOOTBOOT
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
