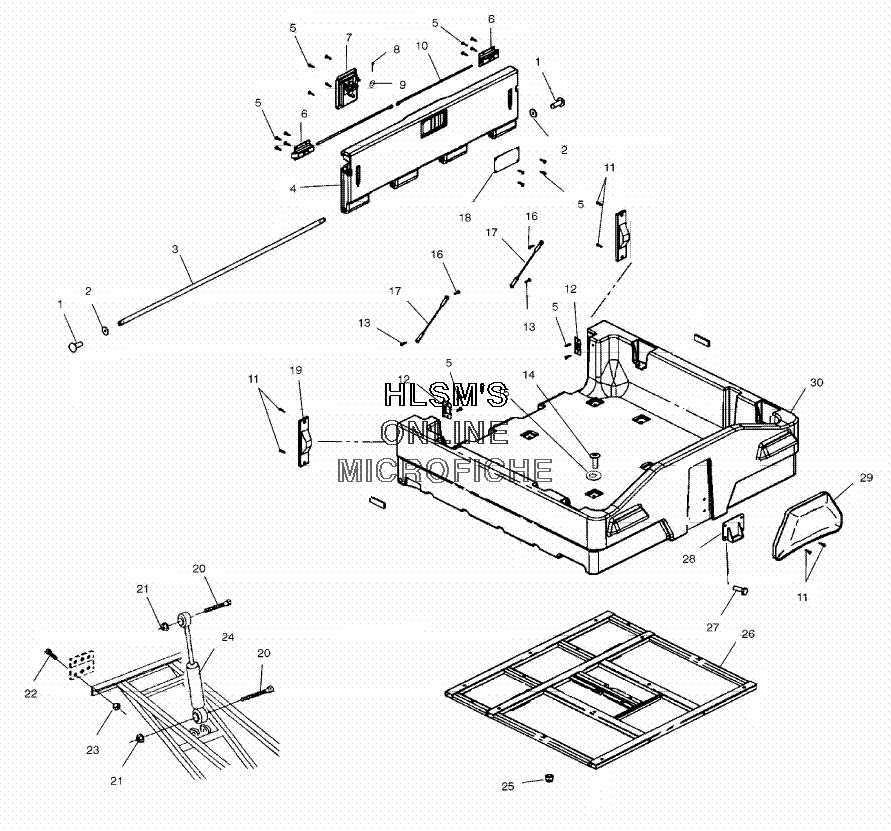

BED - REAR для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27555931 WASHERWASHER
-
35132358 ROD, HINGE TAILGATEROD, HINGE TAILGATE
-
45433388 TAILGATE, PLASTICTAILGATE, PLASTIC
-
57517561 SCREWSCREW
-
65433656 LATCH, FLSHBLT T-GATE (BLACK)LATCH, FLSHBLT T-GATE (BLACK)
-
75433655 LATCH, PADDLE T-GATE (BLACK)LATCH, PADDLE T-GATE (BLACK)
-
87661644 PIN, HITCHPIN, HITCH
-
97556143 WSHR, RUBBER W/METAL BACKWSHR, RUBBER W/METAL BACK
-
105132373 SHFT, TLGATELTCH 5/16,ZINCSHFT, TLGATELTCH 5/16,ZINC
-
117517790 SCREWSCREW
-
125243304 BRACKET, BOX LATCHBRACKET, BOX LATCH
-
137517743 SCREWSCREW
-
147517747 SCREWSCREW
-
157556157 WASHERWASHER
-
167517742 SCREWSCREW
-
177080881 CABLE, TAILGATECABLE, TAILGATE
-
185244068-067 COVER, TAILGATE (BLACK)COVER, TAILGATE (BLACK)
-
192410179 TAILLIGHT W/BRAKE LIGHT ASSY.TAILLIGHT W/BRAKE LIGHT ASSY.
-
194010340 BULB, TAILLIGHTBULB, TAILLIGHT
-
207512329 BOLTBOLT
-
217542324 NUTNUT
-
227512492 SCREWSCREW
-
237542449 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
247041301 SHOCK, DUMPBOXSHOCK, DUMPBOX
-
257547089 NUTNUT
-
261012893-067 WELD, BOX SUPPORT (BLACK)WELD, BOX SUPPORT (BLACK)
-
277515350 SCREWSCREW
-
281013125-067 LATCH, BOX (BLACK)LATCH, BOX (BLACK)
-
292682522-070 BACKREST ASSY. (BLACK)BACKREST ASSY. (BLACK)
-
305433248 BOX, PLASTICBOX, PLASTIC
