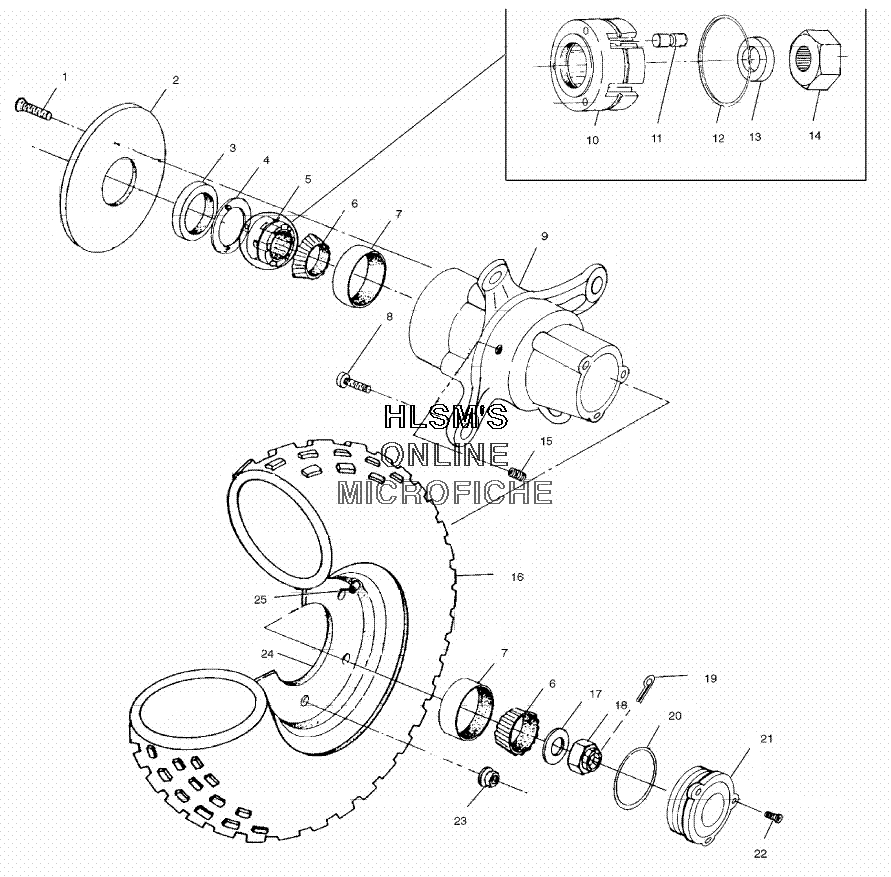

WHEEL - FRONT для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25242935 DISC,BRAKEDISC,BRAKE
-
33610019 SEAL, FRONT HUBSEAL, FRONT HUB
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH, FRONT HUB E/MCLUTCH, FRONT HUB E/M
-
63554506 BEARING,TAPER ROLL.CONEBEARING,TAPER ROLL.CONE
-
73554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
87515523 STUDSTUD
-
91520243 HUB ASSY., SHRT(3-LOBE)W/BRG RACE (INCL. 3,7,8)HUB ASSY., SHRT(3-LOBE)W/BRG RACE (INCL. 3,7,8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLSROLLS
-
123250032 SPRING, GARTERSPRING, GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG, PIPEPLUG, PIPE
-
165410947 TIRE, FR (25X8-12) TRACKERTIRE, FR (25X8-12) TRACKER
-
177556004 WASHERWASHER
-
187542810 NUT, SLOTTEDNUT, SLOTTED
-
197661401 COTTER PINCOTTER PIN
-
205410470 O-RINGO-RING
-
215432611 CAP, HUB 3-LOBE AWDCAP, HUB 3-LOBE AWD
-
227512027 SCREWSCREW
-
237542459 NUT, FLANGEDNUT, FLANGED
-
241520269-117 RIM, FRONT (SILVER)RIM, FRONT (SILVER)
-
251525017 VALVE, RIMVALVE, RIM
