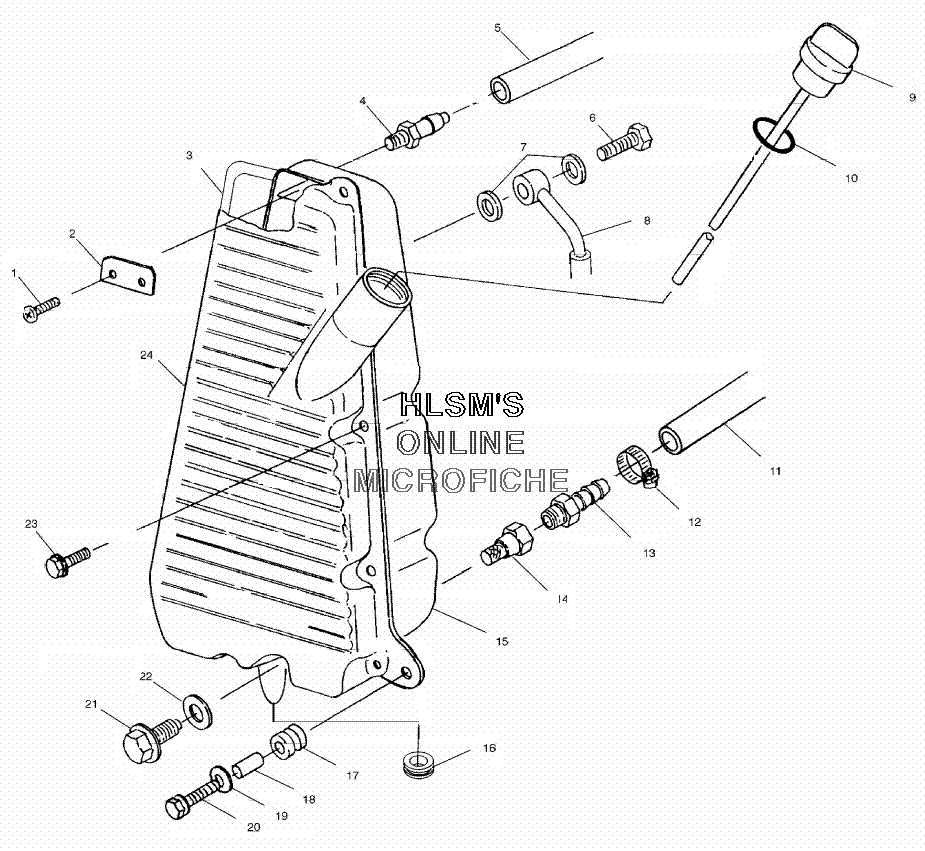

OIL TANK для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17511848 SCREW, SEMSSCREW, SEMS
-
25211523 PLATE, VENT OIL TANKPLATE, VENT OIL TANK
-
35830053 GASKET, OIL RESERVOIRGASKET, OIL RESERVOIR
-
47052163 FITTINGFITTING
-
55411321 LINE, BREATHER SPECIAL (OPT)LINE, BREATHER SPECIAL (OPT)
-
67517102 BOLTBOLT
-
77555896 WASHER, COPPER 14MM.WASHER, COPPER 14MM.
-
87052240 TUBE, BANJO RETURNTUBE, BANJO RETURN
-
95432289 DIPSTICKDIPSTICK
-
105410889 O-RINGO-RING
-
115411846 HOSE, FORMED (3/8 ID.) (OPT)HOSE, FORMED (3/8 ID.) (OPT)
-
127080474 CLAMP, HOSECLAMP, HOSE
-
137052106 FITTING, HOSE BRFITTING, HOSE BR
-
142530014 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
155131255 TANK, RH OILTANK, RH OIL
-
165411042 GROMMETGROMMET
-
175410828 GROMMET, MOUNTING RESERVOIRGROMMET, MOUNTING RESERVOIR
-
185333204 BUSHING, MOUNTINGBUSHING, MOUNTING
-
197558301 WASHERWASHER
-
207512242 SCREWSCREW
-
217051524 PLUG, MAG. 12 M.PLUG, MAG. 12 M.
-
225850135 WASHERWASHER
-
237515158 SCREWSCREW
-
245131785 TANK, OIL (LEFT)TANK, OIL (LEFT)
