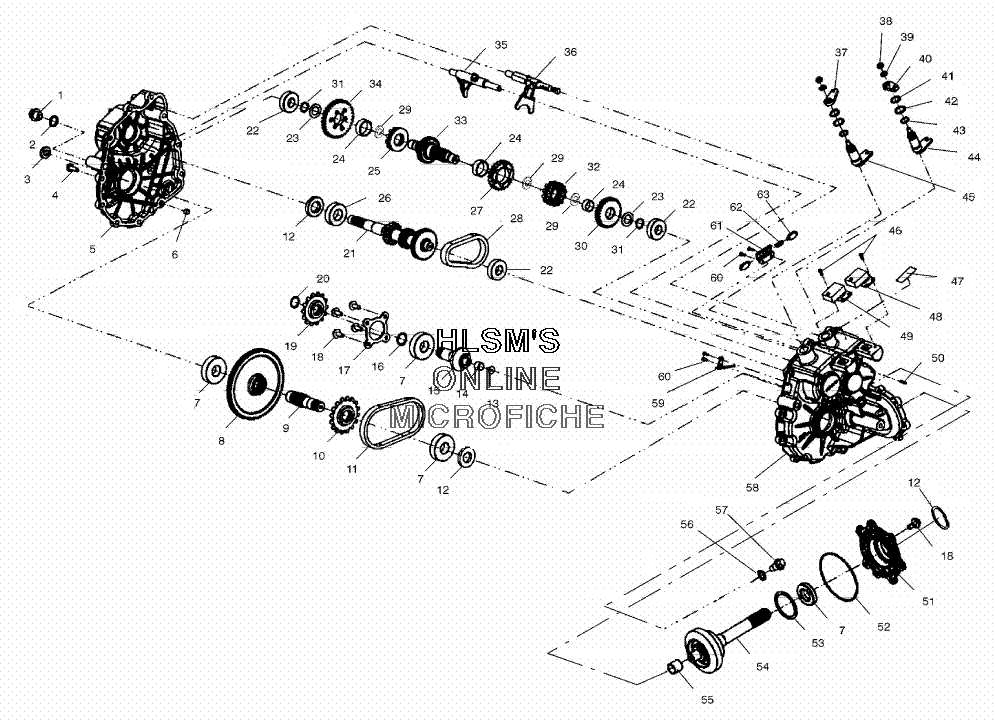

GEARCASE для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
1341291 GEARCASE, HLR (INCL. 1-63)GEARCASE, HLR (INCL. 1-63)
-
13233448 PLUGPLUG
-
23233035 WASHERWASHER
-
33233527 BUSHING, PIVOTBUSHING, PIVOT
-
43233252 SCREWSCREW
-
53233632 GEARCASE (LEFT)GEARCASE (LEFT)
-
63233529 PIPE, KNOCKPIPE, KNOCK
-
73233020 BEARINGBEARING
-
83233360 GEAR, O/P 100 TEETH HCRGEAR, O/P 100 TEETH HCR
-
93233544 SHAFT, OUTPUTSHAFT, OUTPUT
-
103233729 SPROCKET, 15/26 TEETHSPROCKET, 15/26 TEETH
-
113233546 CHAIN, ROLLERCHAIN, ROLLER
-
123233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
133233542 WASHER, THRUSTWASHER, THRUST
-
143233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
153233540 SHAFT, PINION 13 TEETHSHAFT, PINION 13 TEETH
-
163233306 RING, RETAININGRING, RETAINING
-
173233263 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
183233539 SCREWSCREW
-
193233730 SPROCKET, 15/22 TEETHSPROCKET, 15/22 TEETH
-
203233537 RING, RETAININGRING, RETAINING
-
213233704 SHAFT, INPUT HIGH/LOW/REVERSESHAFT, INPUT HIGH/LOW/REVERSE
-
223233018 BEARINGBEARING
-
233233176 WASHERWASHER
-
243233718 BEARING, NDL SPLIT CAGEBEARING, NDL SPLIT CAGE
-
253233732 DOG, ENGAGEMENT LOWDOG, ENGAGEMENT LOW
-
263233019 BEARINGBEARING
-
273233719 SPROCKET, 24 TEETHSPROCKET, 24 TEETH
-
283233036 CHAIN, SILENT (34P)CHAIN, SILENT (34P)
-
293233720 RING, RET-RING (EXTERNAL)RING, RET-RING (EXTERNAL)
-
303233722 GEAR, 30 TEETHGEAR, 30 TEETH
-
313233177 RING, RETAININGRING, RETAINING
-
323233721 DOG, ENGAGEMENT HIGH/REVDOG, ENGAGEMENT HIGH/REV
-
333233733 SHAFT, REVERSE 29 TEETHSHAFT, REVERSE 29 TEETH
-
343233731 GEAR, 33 TEETHGEAR, 33 TEETH
-
353233706 SHIFT FORK, LOWSHIFT FORK, LOW
-
363233633 FORK, SHIFT HIGH/REVFORK, SHIFT HIGH/REV
-
373233547 BELLCRANKBELLCRANK
-
383233055 NUTNUT
-
393233054 WASHERWASHER
-
403233153 BELLCRANKBELLCRANK
-
413233045 RING, RETAININGRING, RETAINING
-
423233040 WASHERWASHER
-
433233548 O-RINGO-RING
-
443233737 SHAFT, SHIFT HIGH/REVERSESHAFT, SHIFT HIGH/REVERSE
-
453233549 SHAFT, SHIFTSHAFT, SHIFT
-
463233691 SCREWSCREW
-
473233636 DECAL, SWITCHDECAL, SWITCH
-
483233635 SWITCH, H/R ITWSWITCH, H/R ITW
-
493233617 SWITCH, ITW 2 POSITIONSWITCH, ITW 2 POSITION
-
503233037 VENTVENT
-
513233556 COVER, SNORKELCOVER, SNORKEL
-
523233555 O-RINGO-RING
-
533233554 SHIMSHIM
-
543233723 SNORKEL, SUBASSY SHAFTSNORKEL, SUBASSY SHAFT
-
553233552 BUSHING, GARLOCKBUSHING, GARLOCK
-
563233324 WASHERWASHER
-
573233711 PLUG, OIL FILLPLUG, OIL FILL
-
583233799 GEARCASE, HLR (RIGHT)GEARCASE, HLR (RIGHT)
-
593233043 DEFLECTOR, OILDEFLECTOR, OIL
-
603233033 SCREW, TAPPING WITH LOCK WASHERSCREW, TAPPING WITH LOCK WASHER
-
613233309 BRACKET, INTERLOCKBRACKET, INTERLOCK
-
623233032 SPRINGSPRING
-
633233308 PIN, INTERLOCKPIN, INTERLOCK
