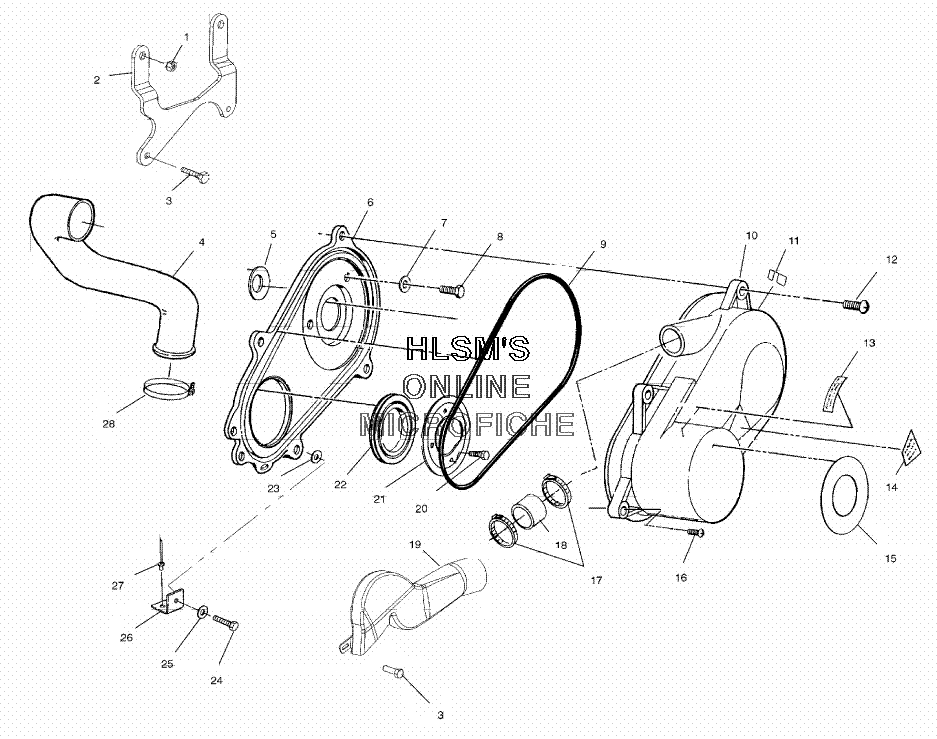

CLUTCH COVER для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17547067 NUTSERT, HEXAGONNUTSERT, HEXAGON
-
25242208-067 BRKT, CLUTCH LOW (BLACK)BRKT, CLUTCH LOW (BLACK)
-
37512232 BOLTBOLT
-
45433427 DUCT, CLUTCH AIR INLETDUCT, CLUTCH AIR INLET
-
55411553 SEAL, CLUTCH CVR INNERSEAL, CLUTCH CVR INNER
-
62201160 COVER, CLUTCH INNER KIT (INCL. 12,16,24)COVER, CLUTCH INNER KIT (INCL. 12,16,24)
-
77555748 WASHERWASHER
-
87512278 BOLTBOLT
-
95521301 SEAL, CLUTCHCOVERSEAL, CLUTCHCOVER
-
105433540 COVER, CLUTCH OUTER HV ST-801COVER, CLUTCH OUTER HV ST-801
-
117670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
127512093 SCREWSCREW
-
137074946 DECAL, SUBSTITUTED BY 707868 (BUILT BEFORE 10/04/99)DECAL, SUBSTITUTED BY 707868 (BUILT BEFORE 10/04/99)
-
137078689 DECAL, (BUILT AFTER 10/04/99)DECAL, (BUILT AFTER 10/04/99)
-
147077377 DECAL, SUBSTITUTED BY 7078689DECAL, SUBSTITUTED BY 7078689
-
157074782 DECAL, AUTO.TRANSMISSIONDECAL, AUTO.TRANSMISSION
-
167512094 SCREWSCREW
-
177080761 STRAP, PANDUIT, 14"STRAP, PANDUIT, 14"
-
185411489 BOOT, DUCT HI-FLOWBOOT, DUCT HI-FLOW
-
195433657 DUCT, AIROUTLET CLUTCHDUCT, AIROUTLET CLUTCH
-
215240409-067 BRKT, CLUTCH SEAL (SUBSTITUTED BY 5242046-067)BRKT, CLUTCH SEAL (SUBSTITUTED BY 5242046-067)
-
225410575 SEAL, COVER CASESEAL, COVER CASE
-
237555932 WASHER,NYLONWASHER,NYLON
-
247512098 SCREWSCREW
-
257555935 WASHERWASHER
-
265242693-067 BRACKET, CLUTCH COVER (BLACK)BRACKET, CLUTCH COVER (BLACK)
-
277661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
287080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
