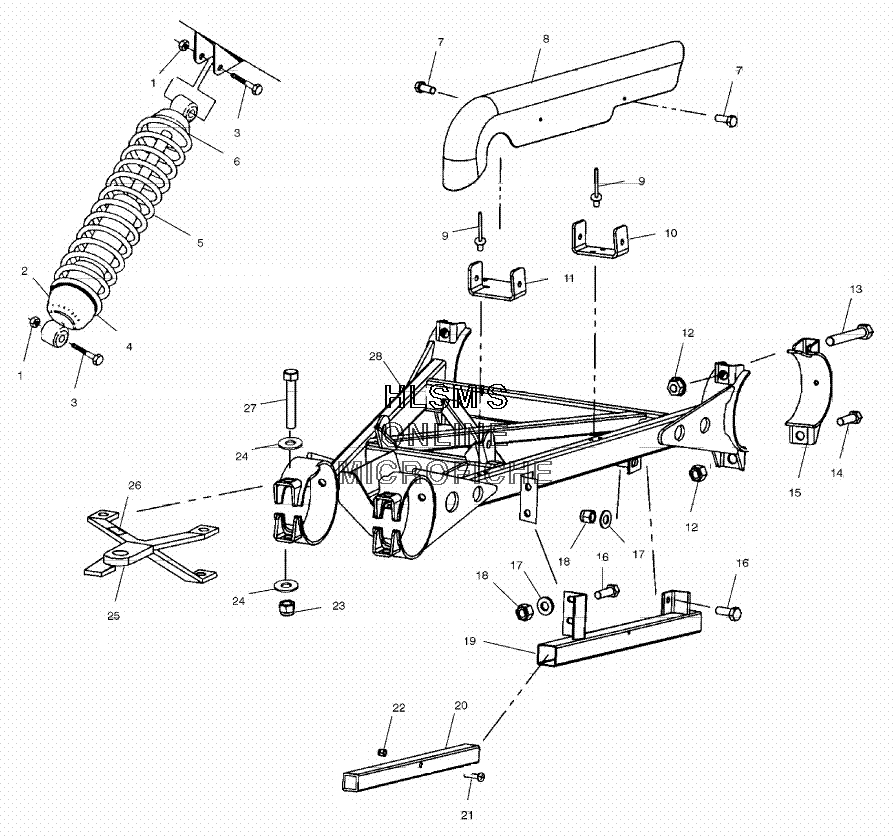

SUSPENSION - SWING ARM WELDMENT - REAR для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOCKNUT, NYLOCK
-
27041819 SHOCK, REARSHOCK, REAR
-
37515415 BOLTBOLT
-
47556142 WASHERWASHER
-
57041880-067 SPRING, COMPSPRING, COMP
-
65241147 RETAINER, SHOCKRETAINER, SHOCK
-
77517386 SCREWSCREW
-
85433539 COVER, CHAIN REARCOVER, CHAIN REAR
-
97661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
105244077-067 MOUNT, CHAIN COVER FRONT (BLACK)MOUNT, CHAIN COVER FRONT (BLACK)
-
115244078-067 MOUNT, CHAIN COVER REAR (BLACK)MOUNT, CHAIN COVER REAR (BLACK)
-
127542522 NUT, FLANGENUT, FLANGE
-
137512569 BOLTBOLT
-
147512520 BOLTBOLT
-
151580067-067 BRACKET, SWING ARM EXT.BRACKET, SWING ARM EXT.
-
167515321 BOLTBOLT
-
177558402 WASHER, STEELWASHER, STEEL
-
187542324 NUTNUT
-
191013021-067 GUARD, CHAIN LOWER EXT (BLACK)GUARD, CHAIN LOWER EXT (BLACK)
-
205521279 GUIDE, REAR CHAINGUIDE, REAR CHAIN
-
217515117 SCREWSCREW
-
227541925 NUTNUT
-
237542503 NUT, LOCKNUT, LOCK
-
247555883 WASHERWASHER
-
252200472 HITCH, CHAIN DRIVEN KIT (INCL. 23,24,27)HITCH, CHAIN DRIVEN KIT (INCL. 23,24,27)
-
267078261 DECAL, HITCH (1225)DECAL, HITCH (1225)
-
277512576 BOLTBOLT
-
281541344-067 SWING ARM, EXT (BLACK)SWING ARM, EXT (BLACK)
