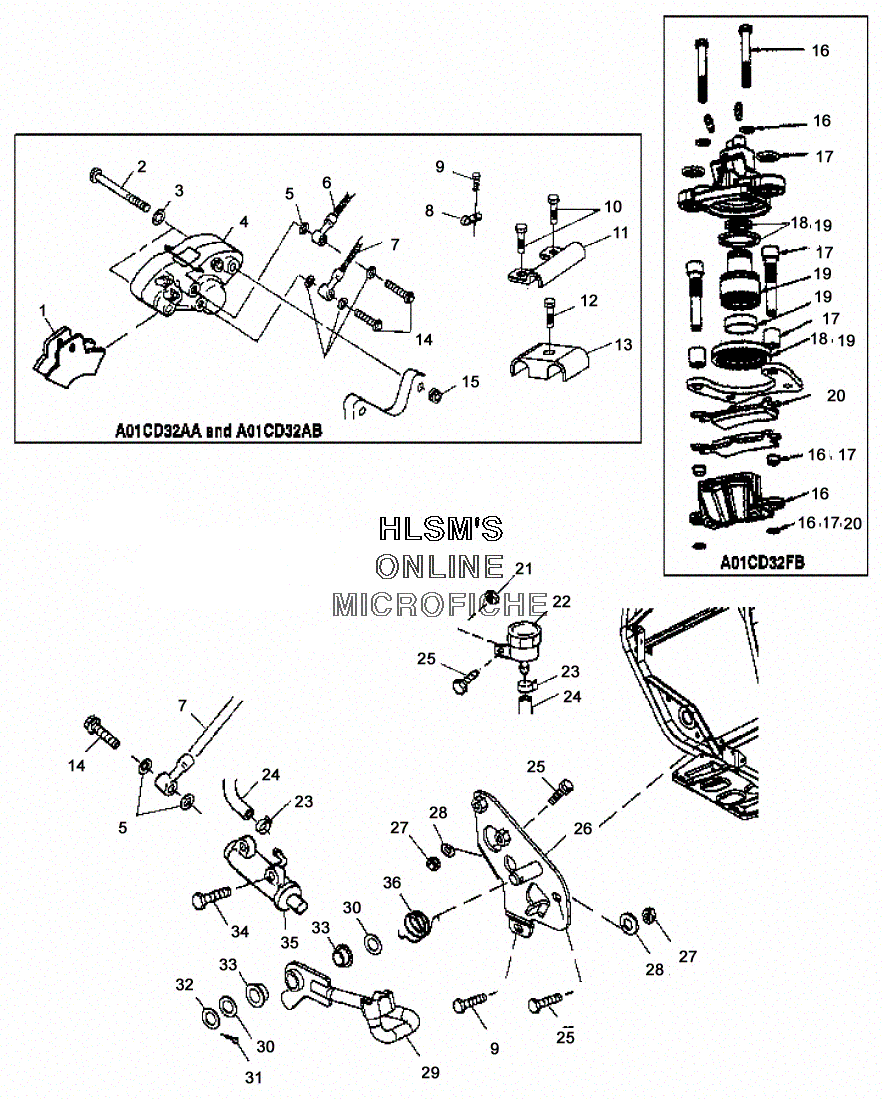

BRAKE - REAR для Polaris MAGNUM 325 4X4 HDS (A01CD32FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
12201189 BRAKEPAD, AXLE WW KIT (REAR) (INCL. SPACER AND PIN)BRAKEPAD, AXLE WW KIT (REAR) (INCL. SPACER AND PIN)
-
27515406 SCREW CAPSCREW CAP
-
37555806 WASHERWASHER
-
41910425 CALIPER ASSY, BRAKE (DH4P)CALIPER ASSY, BRAKE (DH4P)
-
55410988 SEALSEAL
-
71910516 LINE, BRAKE (FT M/C TO RR,SRS,CH)LINE, BRAKE (FT M/C TO RR,SRS,CH)
-
87080573 CLAMP, RUBBER COATED (.562)CLAMP, RUBBER COATED (.562)
-
97517386 SCREWSCREW
-
107512084 SCREWSCREW
-
115434041 CLAMP, BRAKE LINECLAMP, BRAKE LINE
-
127512018 SCREWSCREW
-
137670126 CLIP, RETAINING DUAL (.250'')CLIP, RETAINING DUAL (.250'')
-
141910499 BOLT, BANJOBOLT, BANJO
-
157542403 NUT, LOCKNUT, LOCK
-
162201873 SPACER/WASHER ASSY.SPACER/WASHER ASSY.
-
172201870 SPACER/WASHER ASSY.SPACER/WASHER ASSY.
-
182201872 SEAL, KIT (DH4P)SEAL, KIT (DH4P)
-
192201869 PISTON/SEAL, KIT (DH4P)PISTON/SEAL, KIT (DH4P)
-
202201871 BRAKE PAD, KIT (DH4P)BRAKE PAD, KIT (DH4P)
-
217542153 NUTNUT
-
221930854 RESERVOIR ASSY., BRAKE (REAR)RESERVOIR ASSY., BRAKE (REAR)
-
237080003 CLAMP, HOSECLAMP, HOSE
-
241910331 HOSE, RESERVOIR HBHOSE, RESERVOIR HB
-
257512240 BOLTBOLT
-
261012753-067 MOUNT, PIVOT BRAKE (REAR/BLACK)MOUNT, PIVOT BRAKE (REAR/BLACK)
-
277542122 NUT, LOCKNUT, LOCK
-
287558301 WASHERWASHER
-
291012752-067 BRAKE ROD, HB PVT (BLACK)BRAKE ROD, HB PVT (BLACK)
-
307555919 WASHERWASHER
-
317661401 COTTER PINCOTTER PIN
-
327556090 WASHER, SPRINGWASHER, SPRING
-
335433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
347515158 SCREWSCREW
-
351910311 BRAKE MASTER CYLINDER, FOOT BANJOBRAKE MASTER CYLINDER, FOOT BANJO
-
367041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
