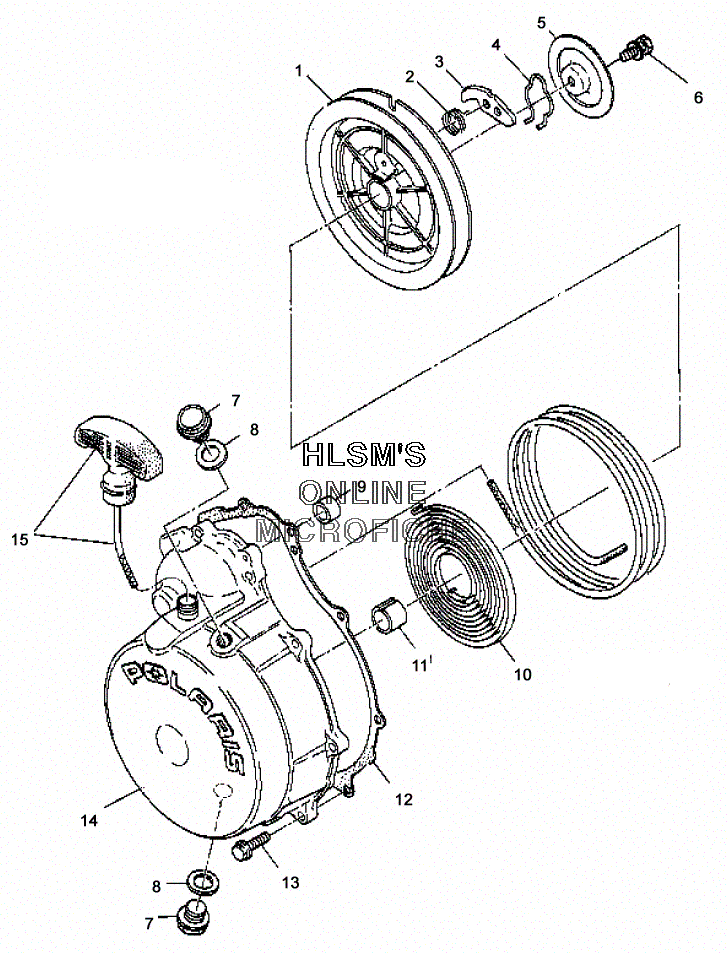

STARTER - RECOIL для Polaris MAGNUM 325 4X4 HDS (A01CD32FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
13084822 REEL, STARTERREEL, STARTER
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53086896 PLATE, FRICTIONPLATE, FRICTION
-
63085266 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
73086749 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRINGSPRING
-
113084750 BUSHBUSH
-
123084933 GASKET, RECOILGASKET, RECOIL
-
133084877 BOLT, FLANGEBOLT, FLANGE
-
143087054 ASSY., RECOIL (INCL. 1-6,9-11,14,15)ASSY., RECOIL (INCL. 1-6,9-11,14,15)
-
143087059 CASE, STARTER (INCL. 11)CASE, STARTER (INCL. 11)
-
153085083 ROPE ASSYROPE ASSY
