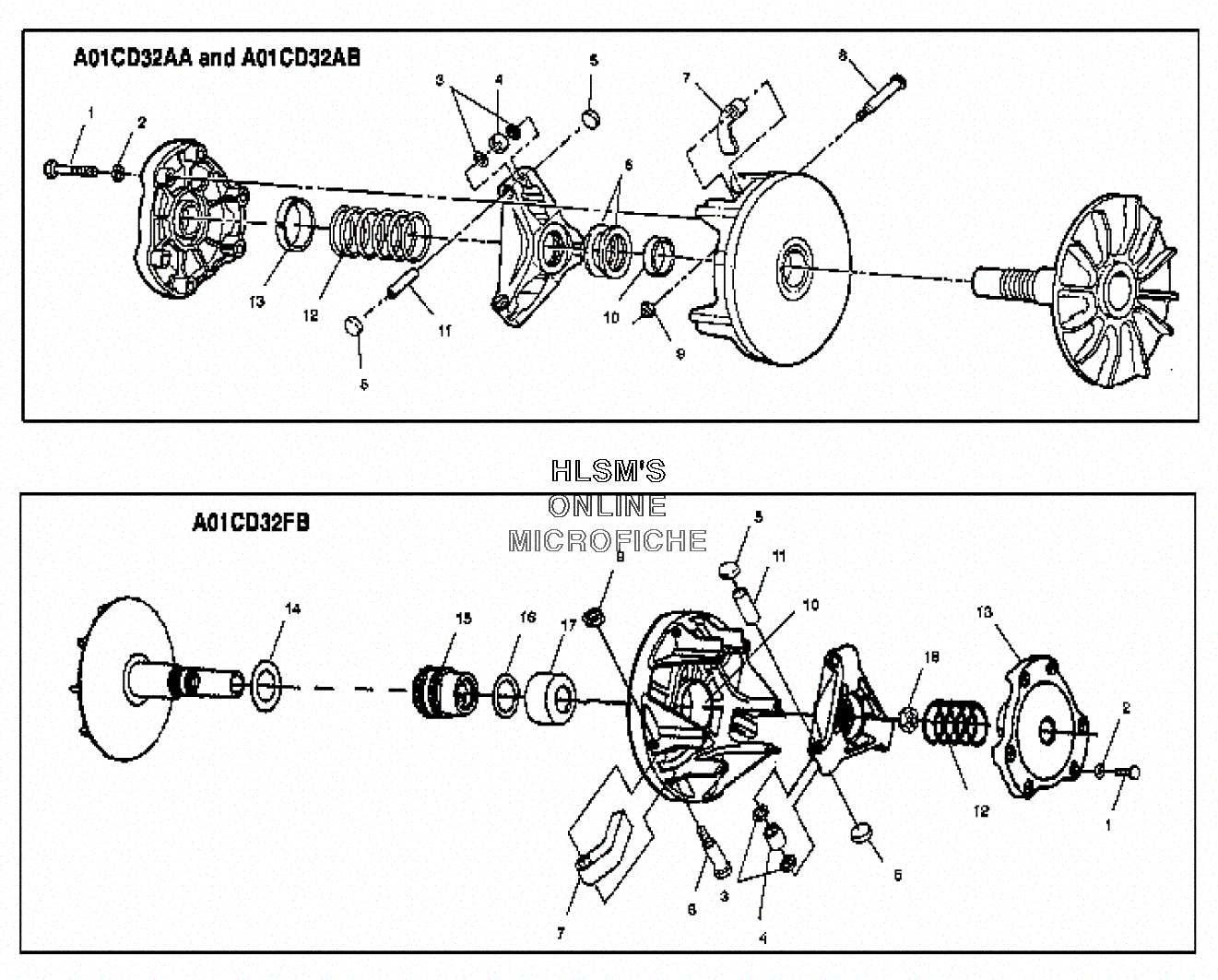

CLUTCH - DRIVE для Polaris MAGNUM 325 4X4 HDS (A01CD32FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
01321706 CLUTCH, DRIVE BRAKING (INCL. ALL LESS 7,12)CLUTCH, DRIVE BRAKING (INCL. ALL LESS 7,12)
-
17512176 SCREWSCREW
-
27552801 LOCK WASHERLOCK WASHER
-
35430945 WASHERWASHER
-
41321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
55431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
75630513 WEIGHT, SHIFT (10MH)WEIGHT, SHIFT (10MH)
-
87512266 BOLT, SPECIALBOLT, SPECIAL
-
97541906 NUT, FLEX LOCNUT, FLEX LOC
-
103585712 BEARINGBEARING
-
115020422 PIN, ROLLERPIN, ROLLER
-
127041157 SPRING, CLUTCHSPRING, CLUTCH
-
133576510 BEARING, COVERBEARING, COVER
-
147556008 WASHER, PTFEWASHER, PTFE
-
151520231 CLUTCH, DRIVE 1-WAY HLRDCLUTCH, DRIVE 1-WAY HLRD
-
167556009 WASHER, BRASSWASHER, BRASS
-
175631119 SPACER, PMSPACER, PM
-
187547130 LIMITING NUT,KIT EBSLIMITING NUT,KIT EBS
