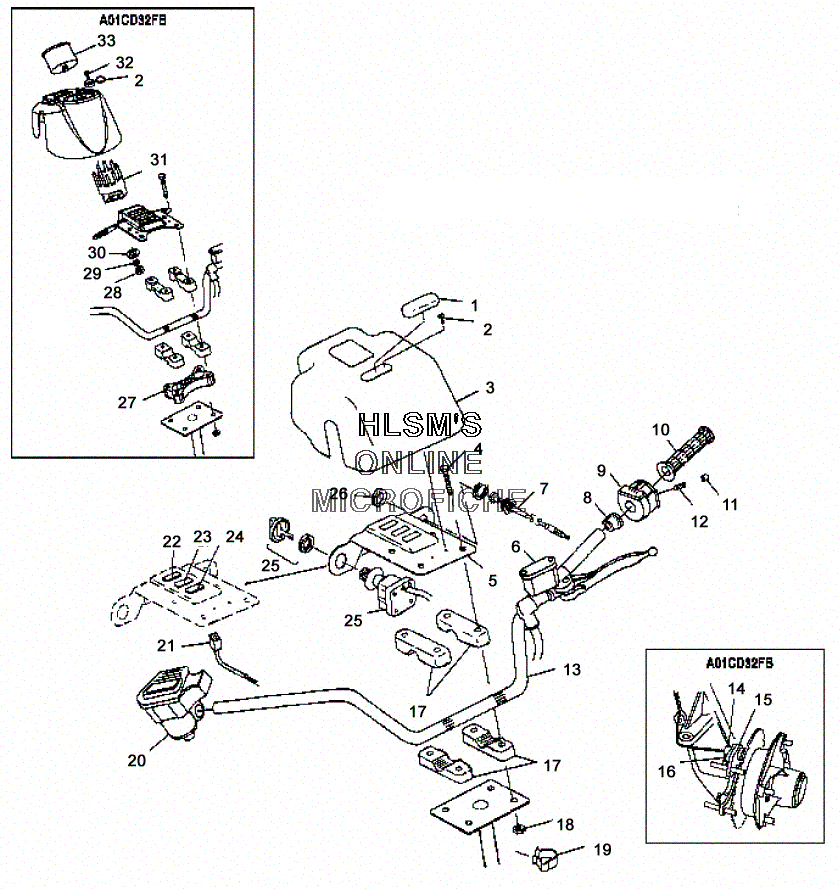

HANDLEBAR для Polaris MAGNUM 325 4X4 HDS (A01CD32FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
15432247-070 COVER, LOGO (BLACK)COVER, LOGO (BLACK)
-
25432420 COVER, SCREW HINGED (BLACK)COVER, SCREW HINGED (BLACK)
-
35433843-070 PANEL, INSTRUMENT (BLACK)PANEL, INSTRUMENT (BLACK)
-
47517224 SCREWSCREW
-
55241698-067 BRACKET, ACCESSORY INSTRUMENT PANEL (BLACK)BRACKET, ACCESSORY INSTRUMENT PANEL (BLACK)
-
77081008 CABLE, CHOKE FRICTION (40'')CABLE, CHOKE FRICTION (40'')
-
85433903 SPACER, SWITCH (LEFT) (99)SPACER, SWITCH (LEFT) (99)
-
94010262 SWITCH, HANDLEBAR H/L/O REV/ORSWITCH, HANDLEBAR H/L/O REV/OR
-
105433834-070 GRIP, HANDLEBAR (7/8 ID, BLACK)GRIP, HANDLEBAR (7/8 ID, BLACK)
-
115432952 PLUG, HOLEPLUG, HOLE
-
127517724 SCREW, SETSCREW, SET
-
135245182-067 TUBE, HANDLEBAR WIDE (BLACK)TUBE, HANDLEBAR WIDE (BLACK)
-
145132382 CAP, HALL SENSORCAP, HALL SENSOR
-
154010298 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
167517658 SCREWSCREW
-
175630629 BLOCK, HANDLEBAR (300)BLOCK, HANDLEBAR (300)
-
187542122 NUT, LOCKNUT, LOCK
-
197080631 CLIP, CABLE RETAINCLIP, CABLE RETAIN
-
212460841 HARNESS, CONTROL PANEL (325, INT'L)HARNESS, CONTROL PANEL (325, INT'L)
-
224040054 INDIC, ''NEUT./REV.''INDIC, ''NEUT./REV.''
-
234040053 INDIC, ''HOT TEMPERATURE''INDIC, ''HOT TEMPERATURE''
-
244010313 INDICATOR, ''P'' PARKINDICATOR, ''P'' PARK
-
254110264 SWITCH, IGNITIONSWITCH, IGNITION
-
255433733 NUT, IGNITION SWITCH HOBBSNUT, IGNITION SWITCH HOBBS
-
254010278 KEY BLANK (6700AND6800 SERIES) (SEE NOTE)KEY BLANK (6700AND6800 SERIES) (SEE NOTE)
-
254010321 KEY BLANK (2700AND2800 SERIES) (SEE NOTE)KEY BLANK (2700AND2800 SERIES) (SEE NOTE)
-
255431964 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
267080922 NUT, CHOKE THD M29 HEXNUT, CHOKE THD M29 HEX
-
275630633 BLOCK, RISER (GEN 4)BLOCK, RISER (GEN 4)
-
287541933 NUT, BRASSNUT, BRASS
-
297558212 WASHER, GA FL-YWASHER, GA FL-Y
-
307555868 WASHER, LOCK (S.S.)WASHER, LOCK (S.S.)
-
313280201 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
327512024 SCREWSCREW
-
333280345 ASSY., SPEEDOMETER (6P, KMH)ASSY., SPEEDOMETER (6P, KMH)
