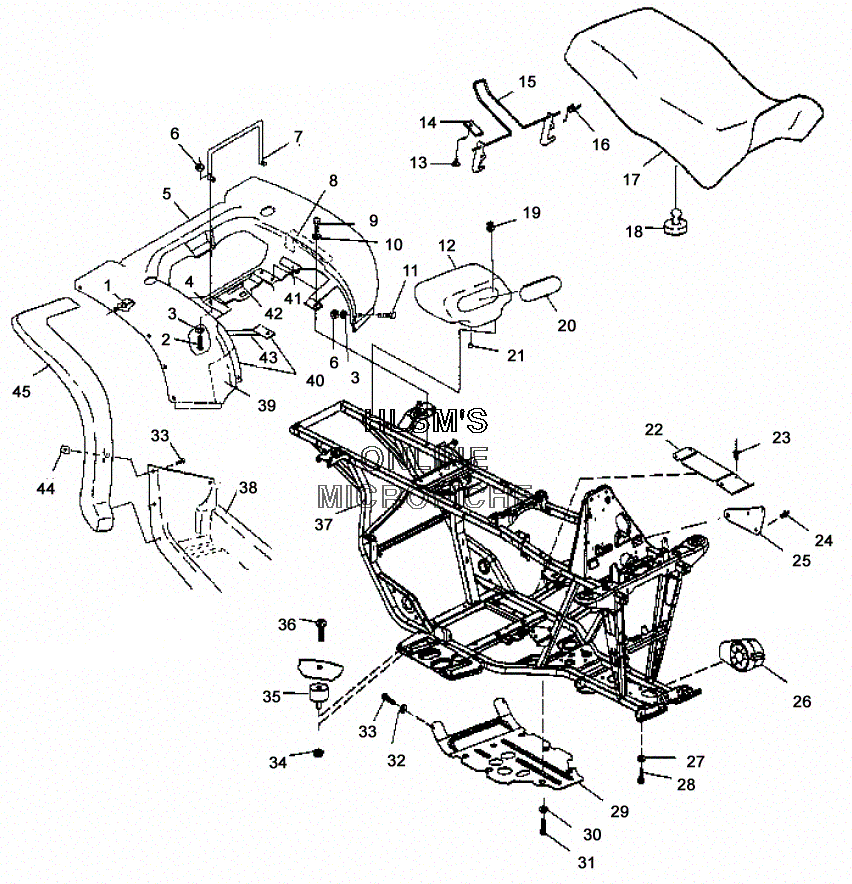

FENDER - REAR W/ SEAT для Polaris MAGNUM 325 4X4 HDS (A01CD32FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
27511930 SCREWSCREW
-
37555792 WASHERWASHER
-
45811107 FOIL, FENDER (REAR)FOIL, FENDER (REAR)
-
55432117-317 FENDER (REAR/GEN 4/GUNMETAL)FENDER (REAR/GEN 4/GUNMETAL)
-
67541925 NUTNUT
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE (3 X 12)FOIL, TAPE (3 X 12)
-
97512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117512085 SCREWSCREW
-
125431786 TOOLBOXTOOLBOX
-
137621403 BLIND RIVETBLIND RIVET
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
151040387 LATCH, SEATLATCH, SEAT
-
167041370 SPRING, LATCHSPRING, LATCH
-
172682441-070 SEAT (BLACK)SEAT (BLACK)
-
172681747-070 COVER, SEAT (BLACK)COVER, SEAT (BLACK)
-
175811104 FOIL, SEATBASE LARGEFOIL, SEATBASE LARGE
-
175811105 FOIL, SEATBASE SMALLFOIL, SEATBASE SMALL
-
185412067 BUMPER, RUBBERBUMPER, RUBBER
-
197517599 BOLT /WASHER (.88)BOLT /WASHER (.88)
-
205431787 COVER, TOOLBOXCOVER, TOOLBOX
-
215410896 CAP, DRAINCAP, DRAIN
-
225243188-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
237661638 RIVET, INTERLOCK, BRIVET, INTERLOCK, B
-
247621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
255243829-067 STRAP, FUEL PUMP MTG (BLACK)STRAP, FUEL PUMP MTG (BLACK)
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
-
295433435 GUARD, ROCKGUARD, ROCK
-
307556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
317517386 SCREWSCREW
-
327558301 WASHERWASHER
-
337512232 BOLT 2BOLT 2
-
347542122 NUT, LOCKNUT, LOCK
-
355411548 MOUNT, RUBBERMOUNT, RUBBER
-
367517264 SCREWSCREW
-
371013263-067 FRAME, MAIN (4X4) (MAG) (BLACK)FRAME, MAIN (4X4) (MAG) (BLACK)
-
385432623-070 FOOTWELL, NYLON (LEFT/BLACK)FOOTWELL, NYLON (LEFT/BLACK)
-
385433397-070 FOOTWELL-PP, MOD (RIGHT/BLACK)FOOTWELL-PP, MOD (RIGHT/BLACK)
-
395811111 FOIL FOAMFOIL FOAM
-
405811106 FOIL, FENDER (FRONT/REAR)FOIL, FENDER (FRONT/REAR)
-
417073761 DECAL, CARBURETOR INFODECAL, CARBURETOR INFO
-
427078396 DECAL, FILTER ELEMENT (ES32)DECAL, FILTER ELEMENT (ES32)
-
435811087 FOIL, FOAM (6X1)FOIL, FOAM (6X1)
-
447670057 NUT, SPEEDNUT, SPEED
-
452873213 GUARD, MUD (BLACK)GUARD, MUD (BLACK)
