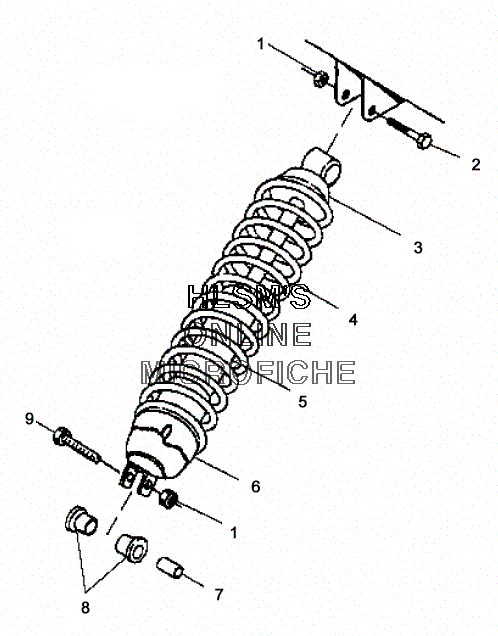

SHOCK ABSORBER для Polaris MAGNUM 325 4X4 HDS (A01CD32FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
17542439 NUT, LOCKNUT, LOCK
-
27515415 BOLTBOLT
-
35241147 RETAINER, SHOCKRETAINER, SHOCK
-
47041815-067 SPRING, COMP (175#,13.6) (BLACK)SPRING, COMP (175#,13.6) (BLACK)
-
57041890 SHOCK, TWIN TUBE CLEVIS (BUILT BEFORE 3/01/01)SHOCK, TWIN TUBE CLEVIS (BUILT BEFORE 3/01/01)
-
57041964 SHOCK, AXLE SRS (REAR) (BUILT AFTER 3/01/01)SHOCK, AXLE SRS (REAR) (BUILT AFTER 3/01/01)
-
65630551 CAM, ADJUST SPRINGCAM, ADJUST SPRING
-
75132021 TUBETUBE
-
85433212 BUSHING, POLYURETHANE (.569 ID)BUSHING, POLYURETHANE (.569 ID)
-
97515438 BOLTBOLT
Все узлы модели:
- AIR BOX ASSY. (BUILT AFTER 1/08/01)
- AIR BOX ASSY. (BUILT BEFORE 1/08/01)
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CV JOINT - BTB
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE SELECTOR MOUNTING
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL COOLING SYSTEM
- OIL PUMP AND OIL FILTER
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- • SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ AXLE
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
