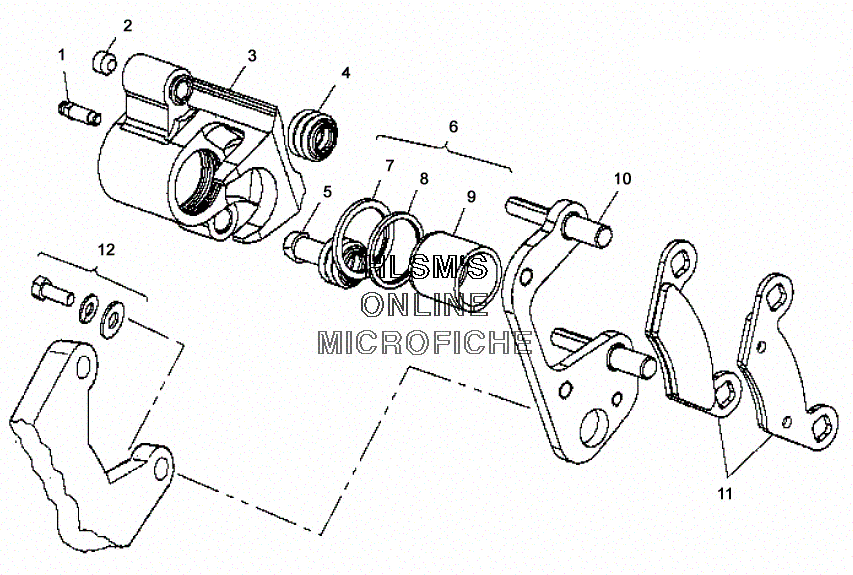

BRAKE - FRONT для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
1A1910547 CALIPER, BRAKE ASSY. (LEFT) (INCL. 1-3,5-10)CALIPER, BRAKE ASSY. (LEFT) (INCL. 1-3,5-10)
-
1A1910548 CALIPER, BRAKE ASSY. (RIGHT) (INCL. 1-3,5-10)CALIPER, BRAKE ASSY. (RIGHT) (INCL. 1-3,5-10)
-
17080352 SCREW, BLEEDERSCREW, BLEEDER
-
27515489 SET SCREW, SOCKET HEADSET SCREW, SOCKET HEAD
-
35132960 CALIPER, BRAKE (LEFT)CALIPER, BRAKE (LEFT)
-
35132961 CALIPER, BRAKE (RIGHT)CALIPER, BRAKE (RIGHT)
-
31930642 BOOT, BRAKE KIT (FRONT)BOOT, BRAKE KIT (FRONT)
-
45410494 BOOT, PIN SEALBOOT, PIN SEAL
-
55410495 BOOT, BUSHINGBOOT, BUSHING
-
61930665 PISTON AND SEAL, KIT (INCL. 7-9)PISTON AND SEAL, KIT (INCL. 7-9)
-
75410779 RING, SQUARE MOLDED (.094)RING, SQUARE MOLDED (.094)
-
85410780 RING, SQUARE MOLDED (.103 X .134)RING, SQUARE MOLDED (.103 X .134)
-
95132294 PISTON AND SEAL, KITPISTON AND SEAL, KIT
-
101910412 MOUNT, ASSY. CALIPERMOUNT, ASSY. CALIPER
-
112201398 BRAKE PADS, AFT (FRONT)BRAKE PADS, AFT (FRONT)
