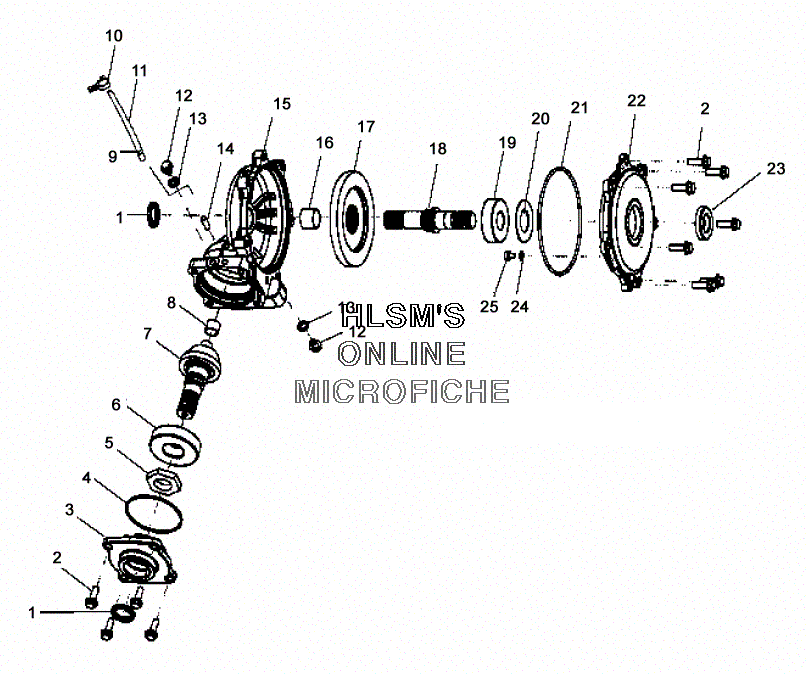

DIFFERENTIAL - FRONT для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
1A1341253 GEARCASE ASSY. (FRONT) (INCL. 1-8,12-25)GEARCASE ASSY. (FRONT) (INCL. 1-8,12-25)
-
13233319 SEALSEAL
-
23233252 SCREWSCREW
-
33233573 GEARCASE, COVERGEARCASE, COVER
-
43233588 O-RING 151O-RING 151
-
53233574 NUTNUT
-
63233589 BEARING, BALLBEARING, BALL
-
73233590 SHAFT, HYPOID 7DP F (10 TEETH)SHAFT, HYPOID 7DP F (10 TEETH)
-
83233591 BUSHINGBUSHING
-
97080307 CLAMPCLAMP
-
107080756 CLIP, SNAP-INCLIP, SNAP-IN
-
118450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
123233253 PLUG, HEX FLANGEPLUG, HEX FLANGE
-
133233254 PLUG, WASHERPLUG, WASHER
-
143233524 TUBE, VENTTUBE, VENT
-
153233592 GEARCASE, HOUSING (FRONT)GEARCASE, HOUSING (FRONT)
-
163233593 BUSHINGBUSHING
-
173233594 GEAR, BEVEL 7DP F (37 TEETH)GEAR, BEVEL 7DP F (37 TEETH)
-
183233595 SHAFT, OUTPUT (FRONT)SHAFT, OUTPUT (FRONT)
-
193233020 BEARINGBEARING
-
203233554 SHIMSHIM
-
213233596 O-RING 225O-RING 225
-
223233597 GEARCASE, COVER OUTPUTGEARCASE, COVER OUTPUT
-
233233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
243233583 SHIMSHIM
-
253233582 THRUST BUTTONTHRUST BUTTON
