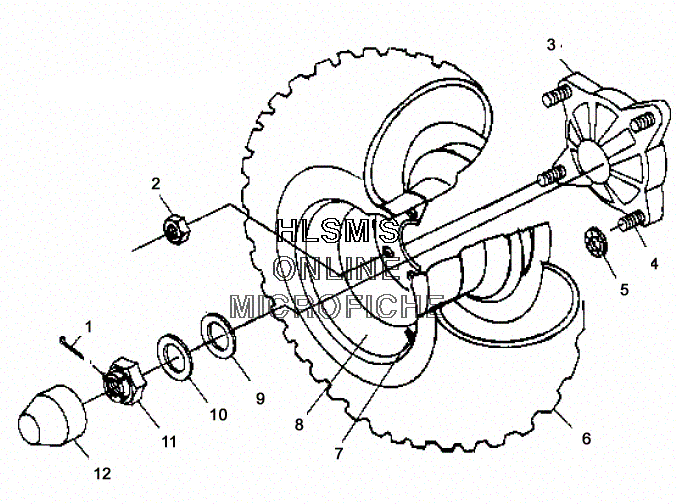

WHEEL - REAR для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
17661404 PIN, COTTERPIN, COTTER
-
27542714 NUT, WHEELNUT, WHEEL
-
35131777 HUB, WHEEL LARGE FLANGE (REAR)HUB, WHEEL LARGE FLANGE (REAR)
-
47512673 BOLT, WHEELBOLT, WHEEL
-
57670081 PUSHNUT, BOLTPUSHNUT, BOLT
-
65411710 TIRE, 24X11.5-10 TITANTIRE, 24X11.5-10 TITAN
-
71525017 VALVE, RIMVALVE, RIM
-
81520183-117 RIM, 8.5/10 (REAR/SILVER)RIM, 8.5/10 (REAR/SILVER)
-
97555745 WASHERWASHER
-
107555796 WASHER, CONEWASHER, CONE
-
117543005 NUT, CASTLENUT, CASTLE
-
125411164 DUSTCOVER, HUBDUSTCOVER, HUB
