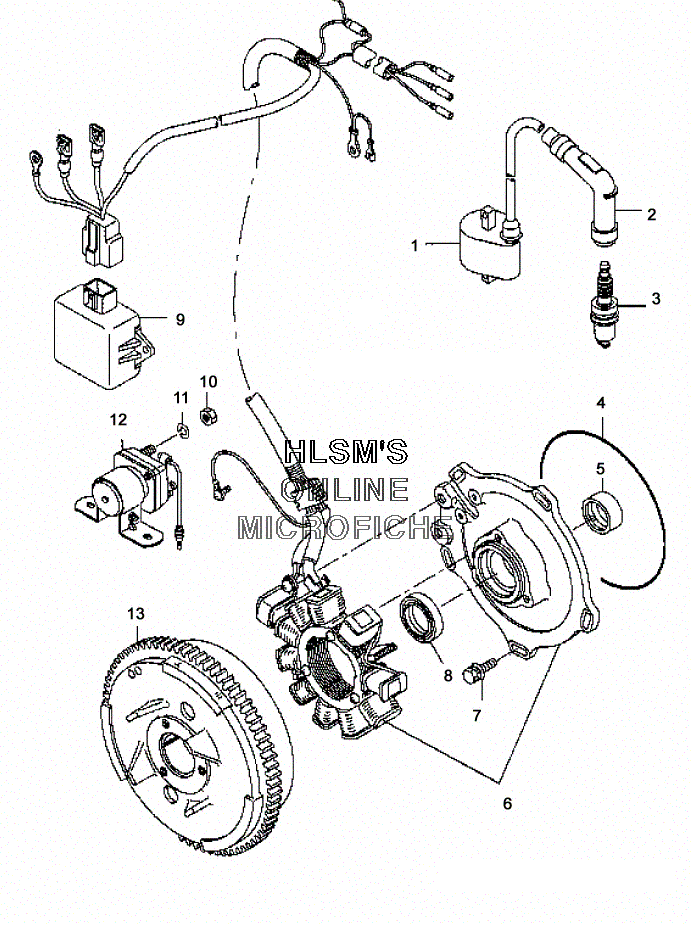

MAGNETO для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
13086484 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
23087037 CAP, SPARK PLUGCAP, SPARK PLUG
-
33084997 SPARKPLUG, BKR6ESPARKPLUG, BKR6E
-
43084978 O-RING (REPLACE W/SAME COLOR)O-RING (REPLACE W/SAME COLOR)
-
43086992 O-RING (RED)O-RING (RED)
-
53086460 BEARING, DRYBEARING, DRY
-
63086904 PLATE, ASSY (INCL. 5,8)PLATE, ASSY (INCL. 5,8)
-
73081657 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
83084973 SEAL, OILSEAL, OIL
-
93086905 CDI, SYSTEMCDI, SYSTEM
-
103083073 NUTNUT
-
113080077 WASHER SPRINGWASHER SPRING
-
123086236 SWITCH, MAGNETICSWITCH, MAGNETIC
-
133086457 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
