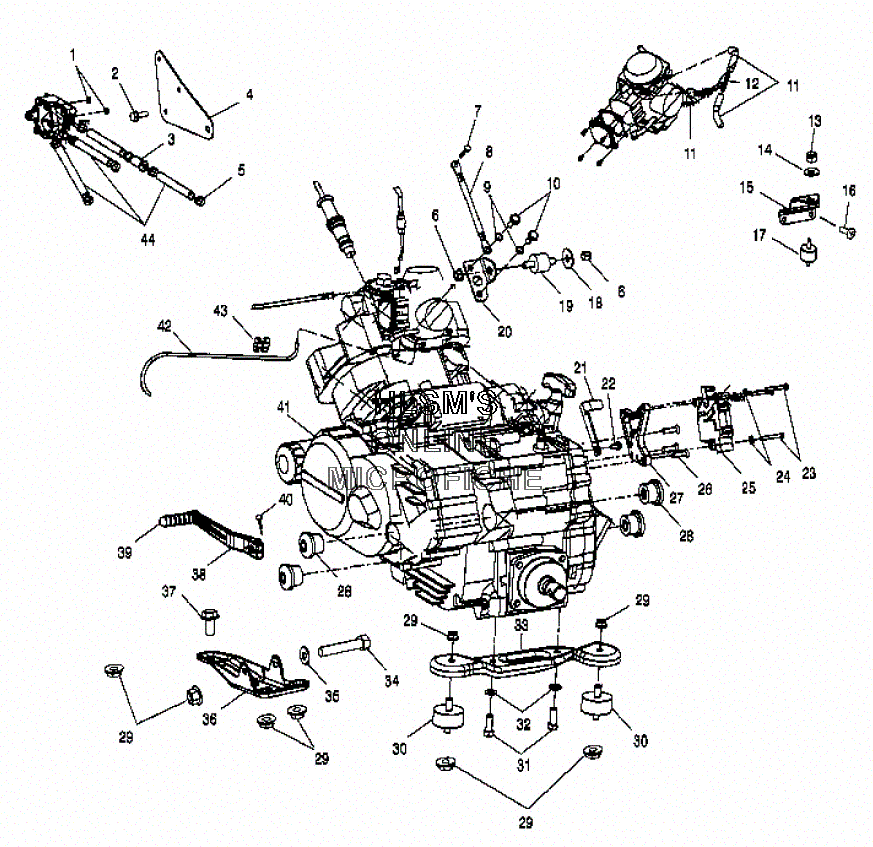

MOUNTING - ENGINE для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
17546601 NUT, NYLOKNUT, NYLOK
-
27517756 SCREWSCREW
-
32530009 FILTER, SMALL IN-LINEFILTER, SMALL IN-LINE
-
45243829-067 STRAP, FUEL PUMP MOUNTING (BLACK)STRAP, FUEL PUMP MOUNTING (BLACK)
-
57080003 CLAMP, HOSECLAMP, HOSE
-
67547089 NUTNUT
-
77517386 SCREWSCREW
-
84010132 CABLE, GROUND ENGINECABLE, GROUND ENGINE
-
97552901 LOCK WASHERLOCK WASHER
-
107512315 BOLTBOLT
-
118450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
127052075 FITTING, TEEFITTING, TEE
-
137542122 NUT, LOCKNUT, LOCK
-
147558301 WASHERWASHER
-
155244058-067 BRACKET, CARBURETOR MOUNT (BLACK)BRACKET, CARBURETOR MOUNT (BLACK)
-
163084205 SCREW AND WASHERSCREW AND WASHER
-
173110050 MOUNT, CARBURETORMOUNT, CARBURETOR
-
187555823 WASHERWASHER
-
193021180 MOUNT, ENGINEMOUNT, ENGINE
-
205244517-067 MOUNT, ENGINE TOP MAN (BLACK)MOUNT, ENGINE TOP MAN (BLACK)
-
215243586-067 LEVER, REVERSE (BLACK)LEVER, REVERSE (BLACK)
-
227517653 SCREWSCREW
-
237510504 SCREWSCREW
-
247555746 BURR, RIVETBURR, RIVET
-
254010265 ACTUATOR, REVERSEACTUATOR, REVERSE
-
267517652 SCREWSCREW
-
275132141 MOUNT, ACTUATOR REVMOUNT, ACTUATOR REV
-
285411927 MOUNT, RUBBER ENGINE MANMOUNT, RUBBER ENGINE MAN
-
297547108 NUTNUT
-
303110045 MOUNT, RUBBER (REAR)MOUNT, RUBBER (REAR)
-
317512492 SCREWSCREW
-
327552603 WASHERWASHER
-
335242984-067 MOUNT, 5 SPEED LOWER (REAR/BLACK)MOUNT, 5 SPEED LOWER (REAR/BLACK)
-
347515406 SCREW CAPSCREW CAP
-
357555806 WASHERWASHER
-
365242905-067 MOUNT, ENGINE LOWER MANUAL (BLACK)MOUNT, ENGINE LOWER MANUAL (BLACK)
-
377517388 SCREWSCREW
-
385631054-067 LEVER, SHIFT (5 SPD) (BLACK)LEVER, SHIFT (5 SPD) (BLACK)
-
395411364 PAD, SHIFT PEDALPAD, SHIFT PEDAL
-
407512225 SCREWSCREW
-
413086945 SHORT BLOCK, ES32PLE03 SEE NOTE:SHORT BLOCK, ES32PLE03 SEE NOTE:
-
428360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)FUEL LINE (1/8 ID 600 CM.) (OPT)
-
437080816 CLIP-T, DUAL 3/16'' LINECLIP-T, DUAL 3/16'' LINE
-
448450040-60 HOSE (OPT)HOSE (OPT)
