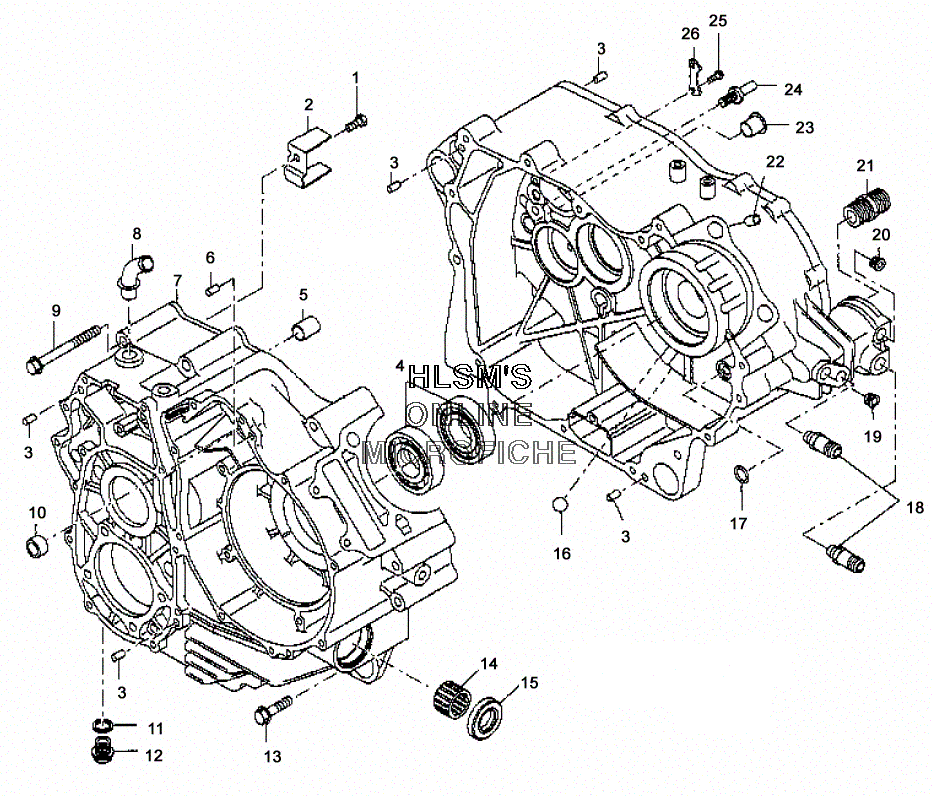

CRANKCASE для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
13087035 BOLT, FLANGEBOLT, FLANGE
-
23086881 PLATE, PARTITIONPLATE, PARTITION
-
33084840 PIN, DOWELPIN, DOWEL
-
43085815 BEARING, BALLBEARING, BALL
-
53086193 BUSHINGBUSHING
-
63080103 PIN, DOWELPIN, DOWEL
-
73086879 ASSY., CRANKCASE (INCL. 3-10,13-16,19,20,23-26)ASSY., CRANKCASE (INCL. 3-10,13-16,19,20,23-26)
-
83085850 PIPEPIPE
-
93084841 BOLT, FLANGEBOLT, FLANGE
-
103083669 BUSHING, STARTERBUSHING, STARTER
-
113082956 GASKETGASKET
-
123083453 PLUGPLUG
-
133085295 BOLT, FLANGEBOLT, FLANGE
-
143086191 BEARING, NEEDLEBEARING, NEEDLE
-
153086192 SEAL, OILSEAL, OIL
-
163086194 BALL, STEELBALL, STEEL
-
173086880 O-RINGO-RING
-
185133073 FITTINGFITTING
-
193086397 PLUG, FLANGEPLUG, FLANGE
-
203084862 PLUG, BLINDPLUG, BLIND
-
213084849 UNION, OIL PUMPUNION, OIL PUMP
-
223084838 PIN, STRAIGHTPIN, STRAIGHT
-
233086197 BUSHBUSH
-
243086195 PIN, STOPPERPIN, STOPPER
-
253081890 SCREWSCREW
-
263086196 PLATE, BEARINGPLATE, BEARING
