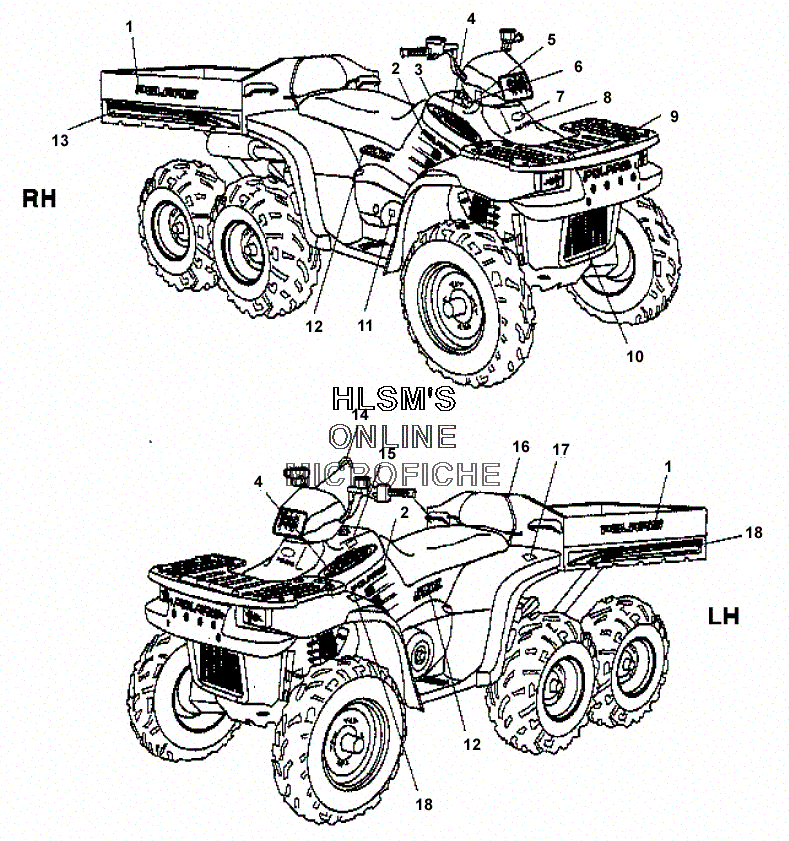

DECALS для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска
-
№АртикулНазвание
-
17078537 DECAL,''POLARIS'',BOXDECAL,''POLARIS'',BOX
-
27078443 DECAL,''POLARIS'',SDPNL,WHTDECAL,''POLARIS'',SDPNL,WHT
-
37078254 DECAL, AGE WARNINGDECAL, AGE WARNING
-
47170036 DECAL-TANK SIDE,''BIG BOSS''DECAL-TANK SIDE,''BIG BOSS''
-
57078003 DECAL-HEADLIGHT ADJUSTMENTDECAL-HEADLIGHT ADJUSTMENT
-
67079780 DECAL, WARNING, AWD SWITCHDECAL, WARNING, AWD SWITCH
-
77078465 DECAL, STAR LOGODECAL, STAR LOGO
-
87079773 DECAL-''POLARIS'',FR CVRDECAL-''POLARIS'',FR CVR
-
97079295 DECAL-WARN,FR RACK,75 LBS DISCDECAL-WARN,FR RACK,75 LBS DISC
-
107078045 DECAL-''LIQUID COOLED'',RADIATORDECAL-''LIQUID COOLED'',RADIATOR
-
117078577 DECAL,DRAIN RECOILDECAL,DRAIN RECOIL
-
127079964 DECAL-''6X6'',LHDECAL-''6X6'',LH
-
127079965 DECAL-''6X6'',RHDECAL-''6X6'',RH
-
137079966 DECAL-STRIPE,BOX,LHDECAL-STRIPE,BOX,LH
-
137079967 DECAL-STRIPE,BOX,RHDECAL-STRIPE,BOX,RH
-
147079520 DECAL-IGNITION,GEN 4,LOWER PODDECAL-IGNITION,GEN 4,LOWER POD
-
157079604 DECAL, WARNING, OVERRIDE, AWDDECAL, WARNING, OVERRIDE, AWD
-
167079316 DECAL, WARNING, CONTAINER/PASSENGERDECAL, WARNING, CONTAINER/PASSENGER
-
177079293 DECAL, TIRE PRESSUREDECAL, TIRE PRESSURE
-
187079292 DECAL-WARN,DISC,6X6DECAL-WARN,DISC,6X6
Все узлы модели:
- AIR BOX ASSY.
- BED - REAR
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE (LEFT HAND)
- BRAKE - MASTER CYLINDER W/ BRAKE LINE (RIGHT HAND)
- BRAKE - REAR CALIPER
- BRAKE - REAR CALIPER MOUNTING W/ BRAKE LINES
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- • DECALS
- DIFFERENTIAL - FRONT
- DRIVE - MIDDLE
- DRIVE - REAR AXLE
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEAR SELECTOR MOUNTING
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/02/02)
- OIL TANK (IF BUILT BEFORE 1/02/02)
- RACK AND BUMPER MOUNTING - FRONT
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- SUSPENSION - SWING ARM STABILIZER - REAR
- SUSPENSION - SWING ARM WELDMENT - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR AND MIDDLE
