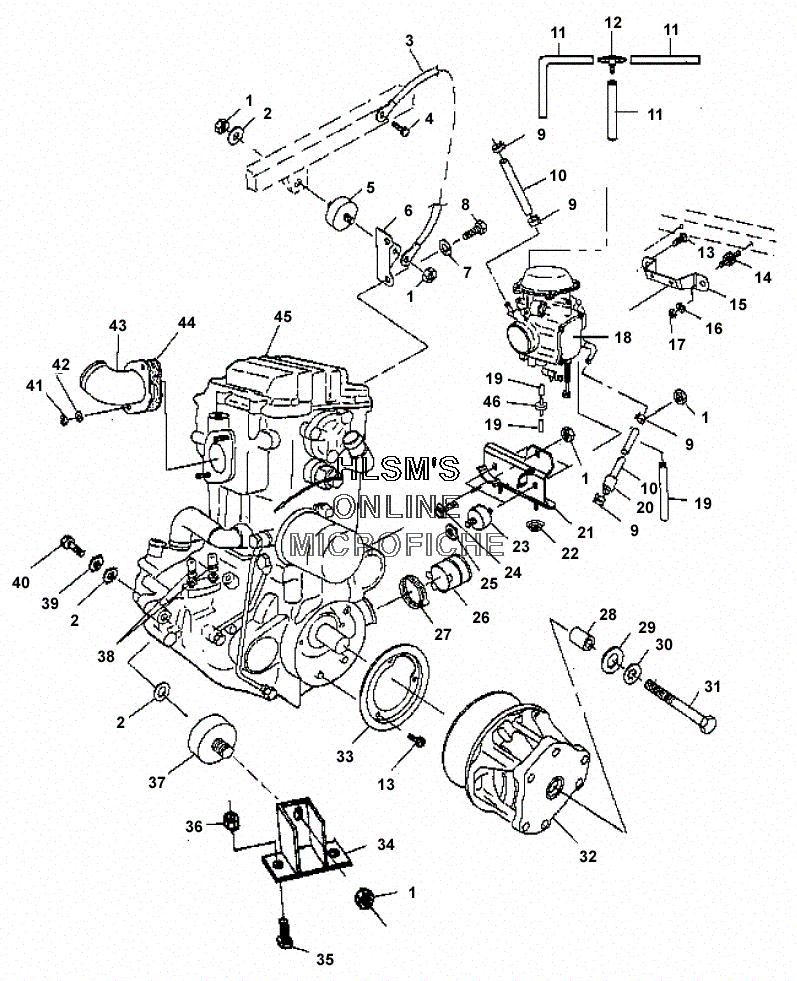

MOUNTING - ENGINE для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
27555801 WASHERWASHER
-
34010132 CABLE,GND-ENGINECABLE,GND-ENGINE
-
47512232 BOLTBOLT
-
53110044 MOUNT,RUBBER,TOPMOUNT,RUBBER,TOP
-
65242674-067 BRKT,ENG.MT,TOP,BLKBRKT,ENG.MT,TOP,BLK
-
77552901 LOCK WASHERLOCK WASHER
-
87512315 BOLTBOLT
-
97080003 CLAMP,HOSECLAMP,HOSE
-
108450040-600 FUEL LINE [1/4 ID 600 CM.] [OPT]FUEL LINE [1/4 ID 600 CM.] [OPT]
-
118450003-1525 FUEL LINE [1/4 ID 1525 CM.] [OPT]FUEL LINE [1/4 ID 1525 CM.] [OPT]
-
127052075 FITTING, TEEFITTING, TEE
-
133084205 SCREW AND WASHERSCREW AND WASHER
-
143110032 MOUNT, RUBBERMOUNT, RUBBER
-
155243803-067 BRKT,CARB,MOUNT,BLKBRKT,CARB,MOUNT,BLK
-
167552605 WASHERWASHER
-
177542105 NUT HEXNUT HEX
-
198360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
208450080-58 SHEATH-REFLECTSLEEVESHEATH-REFLECTSLEEVE
-
211012883-067 MOUNT,ENGINE,REAR,500,BLKMOUNT,ENGINE,REAR,500,BLK
-
227547089 NUT-3/8-16 FLG LOCK-YNUT-3/8-16 FLG LOCK-Y
-
233110046 MOUNT,RUBBER,FRONTMOUNT,RUBBER,FRONT
-
247517289 SCREW ,SCREW ,
-
257555806 WASHERWASHER
-
265410421 BOOT,CLUTCH INTAKEBOOT,CLUTCH INTAKE
-
277080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
285430261 BUSHING - RETAINING BOLTBUSHING - RETAINING BOLT
-
295210748 WASHERWASHER
-
307575202 WASHER LOCKWASHER LOCK
-
317512566 BOLTBOLT
-
341040688-067 MOUNT,FR.ENGINE,BLK.MOUNT,FR.ENGINE,BLK.
-
357515398 SCREWSCREW
-
367542324 NUTNUT
-
373110067 MOUNT,MOTORMOUNT,MOTOR
-
387080474 CLAMP, HOSECLAMP, HOSE
-
397552603 WASHERWASHER
-
407515417 BOLTBOLT
-
431261171-029 WELD-MANIFOLD,1.625 W/PN,BLKWELD-MANIFOLD,1.625 W/PN,BLK
-
453085556 SHORTY BLOCK EH50PLE-01 SEE NOTE.SHORTY BLOCK EH50PLE-01 SEE NOTE.
-
467051011 VENT,CHECKVALVEVENT,CHECKVALVE
Все узлы модели:
- AIR BOX ASSY.
- BED - REAR
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE (LEFT HAND)
- BRAKE - MASTER CYLINDER W/ BRAKE LINE (RIGHT HAND)
- BRAKE - REAR CALIPER
- BRAKE - REAR CALIPER MOUNTING W/ BRAKE LINES
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVE - MIDDLE
- DRIVE - REAR AXLE
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEAR SELECTOR MOUNTING
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- • MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/02/02)
- OIL TANK (IF BUILT BEFORE 1/02/02)
- RACK AND BUMPER MOUNTING - FRONT
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- SUSPENSION - SWING ARM STABILIZER - REAR
- SUSPENSION - SWING ARM WELDMENT - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR AND MIDDLE
