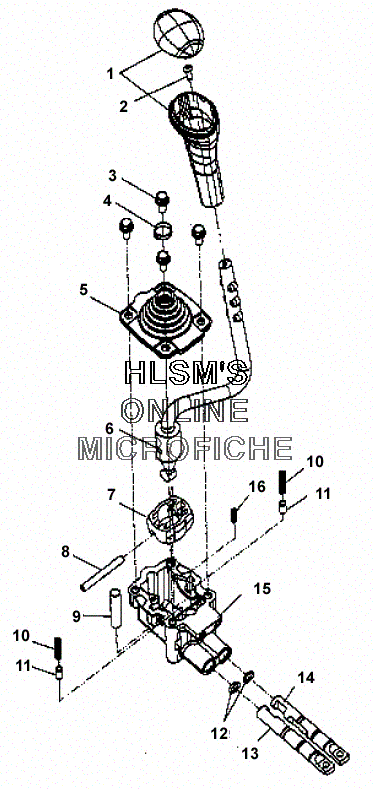

GEAR SELECTOR для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска
-
№АртикулНазвание
-
1A1341271 SELECTOR ASM,GEAR [INCL. 1-16]SELECTOR ASM,GEAR [INCL. 1-16]
-
13233195 GEAR SELECT KNOB,HLR,BLACK,ASM.GEAR SELECT KNOB,HLR,BLACK,ASM.
-
27512024 SCREW,SCREW,
-
33233649 SCREWSCREW
-
43233131 STRAP, WIRESTRAP, WIRE
-
53233648 COVER-GEAR SELECTOR BOOTCOVER-GEAR SELECTOR BOOT
-
63233658 SUBASM-HANDLE GEAR SELECTORSUBASM-HANDLE GEAR SELECTOR
-
73233646 PLASTIC-SPHEREPLASTIC-SPHERE
-
83233754 PIN-DOWELPIN-DOWEL
-
93233644 PIN-DOWELPIN-DOWEL
-
103233642 SPRING-DETENTSPRING-DETENT
-
113233060 BULLET,DETENTBULLET,DETENT
-
123233076 O-RINGO-RING
-
133233639 SLIDE-LOWSLIDE-LOW
-
143233640 SLIDE-HIGH/REVSLIDE-HIGH/REV
-
153233641 GEAR,SELECTOR,BODYGEAR,SELECTOR,BODY
-
163233643 SPRING-CENTERINGSPRING-CENTERING
