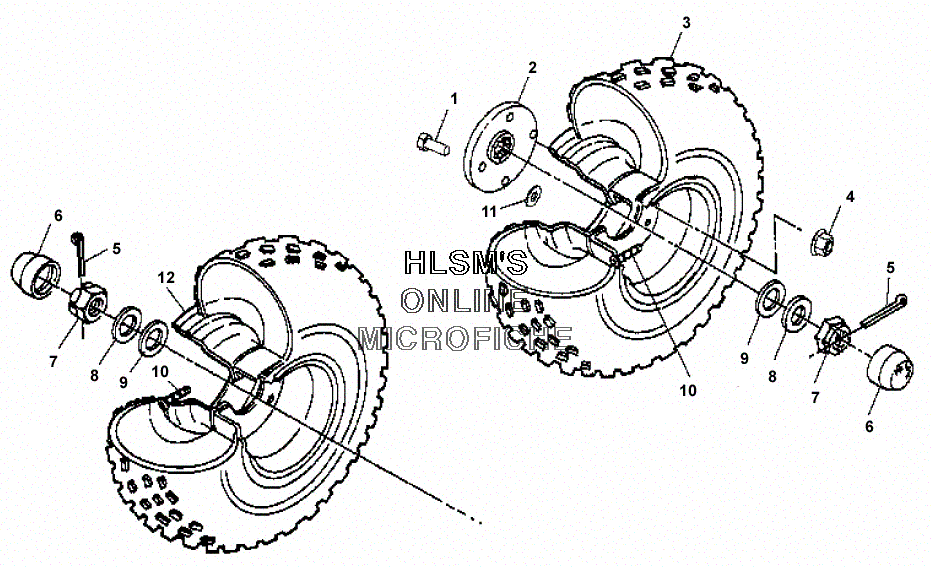

WHEEL - REAR AND MIDDLE для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска
-
№АртикулНазвание
-
17512673 BOLT, WHEELBOLT, WHEEL
-
25131777 HUB,R.WHEEL,LG.FLANGEHUB,R.WHEEL,LG.FLANGE
-
35410948 TIRE, TRACKER [25X11-10]TIRE, TRACKER [25X11-10]
-
47542714 NUT, WHEELNUT, WHEEL
-
57661404 PIN, COTTERPIN, COTTER
-
65411164 DUSTCOVER, HUBDUSTCOVER, HUB
-
77543005 NUT, CASTLENUT, CASTLE
-
87555745 WASHERWASHER
-
97555796 WASHER, CONEWASHER, CONE
-
101525017 VALVE, RIMVALVE, RIM
-
117670081 PUSHNUT, BOLTPUSHNUT, BOLT
-
121520183-117 RIM-REAR, 8.5/10,SILVERRIM-REAR, 8.5/10,SILVER
