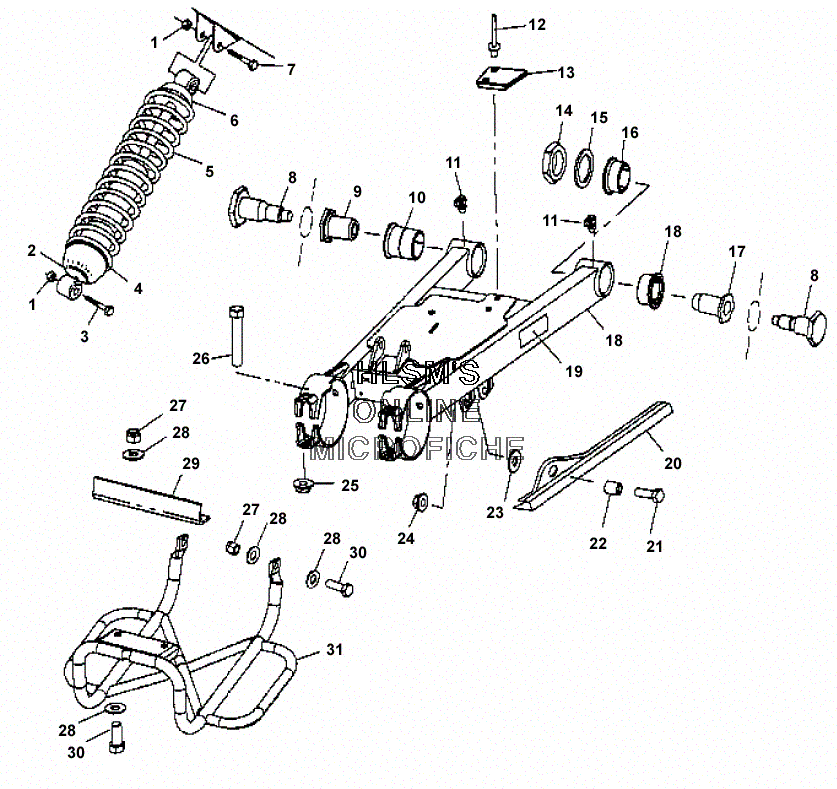

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска
-
№АртикулНазвание
-
17542439 NUT,NYLOKNUT,NYLOK
-
27041962 SHOCK-MID AXLE,6X6SHOCK-MID AXLE,6X6
-
37515438 BOLTBOLT
-
47556142 WASHER,2.085X2.88X.135WASHER,2.085X2.88X.135
-
57041987-067 SPRING-COMP,100/160,13.5LG,BLKSPRING-COMP,100/160,13.5LG,BLK
-
65241147 RETAINER,SHOCKRETAINER,SHOCK
-
77515415 BOLTBOLT
-
85131697 BOLT,SWINGARM PIVOTBOLT,SWINGARM PIVOT
-
95133166 BUSHING-SWING ARM PIVOT,LHBUSHING-SWING ARM PIVOT,LH
-
105434545 BUSHING-SWINGARM,LH,HYBRID,BLKBUSHING-SWINGARM,LH,HYBRID,BLK
-
117080510 FITTING, ZERKFITTING, ZERK
-
127661046 RIVET-POP,3/16[.376-.500]RIVET-POP,3/16[.376-.500]
-
135432727 GUIDE,CHAIN PADGUIDE,CHAIN PAD
-
147547082 NUT,HEX,JAMNUT,HEX,JAM
-
157556035 WASHER,FLATWASHER,FLAT
-
165434546 BUSHING-SWINGARM,RH,HYBRID,BLKBUSHING-SWINGARM,RH,HYBRID,BLK
-
175133167 BUSHING-SWING ARM PIVOT,RHBUSHING-SWING ARM PIVOT,RH
-
181541583 SWING,ARM,ASM.HYBRID,16.85 [INCL. 10,11,16]SWING,ARM,ASM.HYBRID,16.85 [INCL. 10,11,16]
-
197078572 DECAL-''CHAIN FREEPLAY'',HYBRIDDECAL-''CHAIN FREEPLAY'',HYBRID
-
205432854 GUARD,CHAIN,R.AXLEGUARD,CHAIN,R.AXLE
-
217515304 SCREW-FLANGEDSCREW-FLANGED
-
225332828 BUSHINGBUSHING
-
237558402 WASHER STEELWASHER STEEL
-
247542321 NUT LOCKNUT LOCK
-
257542522 NUT,FLANGENUT,FLANGE
-
267512576 BOLTBOLT
-
277542324 NUTNUT
-
287558402 WASHER STEELWASHER STEEL
-
295222221-067 MOUNT,ROCK GUARDMOUNT,ROCK GUARD
-
307512325 BOLTBOLT
-
311013328-067 GUARD,SWING ARM,BLK.GUARD,SWING ARM,BLK.
