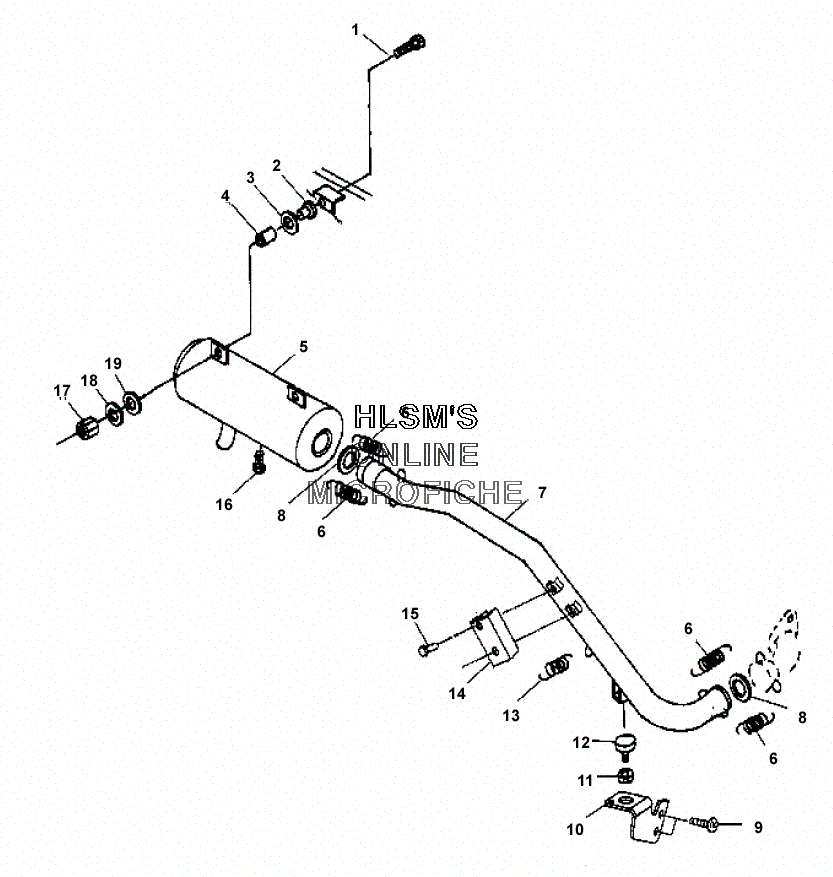

EXHAUST SYSTEM для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска
-
№АртикулНазвание
-
17515316 BOLTBOLT
-
25410241 DAMPENERDAMPENER
-
37555863 BUSHINGBUSHING
-
45010192 BUSHING-RES. MT.BUSHING-RES. MT.
-
51260989-029 SILENCER,BLKSILENCER,BLK
-
67041804 SPRING-EXHAUSTSPRING-EXHAUST
-
71260946-029 EXHAUST PIPE,1.62 O.D.BLKEXHAUST PIPE,1.62 O.D.BLK
-
85243518 SEAL,EXHAUSTSEAL,EXHAUST
-
97512232 BOLTBOLT
-
105242344-067 BRKT,EXH.SUPPORT,BLKBRKT,EXH.SUPPORT,BLK
-
117542301 NUT HEXNUT HEX
-
123110064 MOUNT,TORQUE-STOPMOUNT,TORQUE-STOP
-
137042029 SPRING-EXHAUSTSPRING-EXHAUST
-
145244014 SHIELD-HEAT,EXHAUSTSHIELD-HEAT,EXHAUST
-
157517615 SCREWSCREW
-
167512666 BOLTBOLT
-
177542324 NUTNUT
-
187555716 WASHERWASHER
-
195410436 WASHER,RUBBERWASHER,RUBBER
