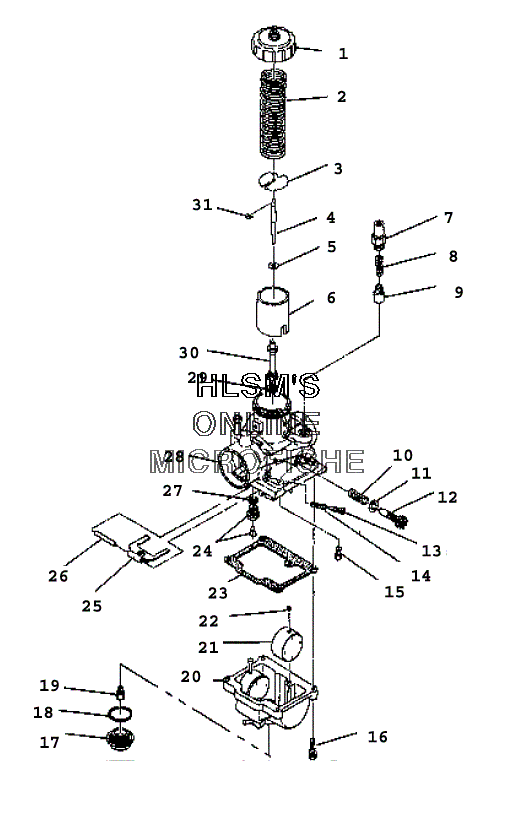

CARBURETOR для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13130184 TOP ASMTOP ASM
-
23130496 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATEPLATE
-
43130476 JET NEEDLE [6CEY6-3]JET NEEDLE [6CEY6-3]
-
53130355 WASHERWASHER
-
63130494 VALVE,THROTTLE,(1.5)VALVE,THROTTLE,(1.5)
-
73130199 HOLDER,GUIDEHOLDER,GUIDE
-
83130006 SPRING,PLUNGERSPRING,PLUNGER
-
93130328 PLUNGER ASM, STARTERPLUNGER ASM, STARTER
-
103130436 SPRING,THROT.ADJ.SPRING,THROT.ADJ.
-
113130447 WASHERWASHER
-
123130009 SCREW,THROTTLE STOPSCREW,THROTTLE STOP
-
133130011 SCREW,AIRSCREW,AIR
-
143130012 SPRING,AIR ADJUSTSPRING,AIR ADJUST
-
153131325 JET,PILOT,#25JET,PILOT,#25
-
163130025 SCREW AND WASHERSCREW AND WASHER
-
173130432 SCREW, GUIDESCREW, GUIDE
-
183130239 O RINGO RING
-
193130549 JET,MAIN,HX.HD#240JET,MAIN,HX.HD#240
-
203130443 BOWL, FLOAT (350)BOWL, FLOAT (350)
-
213130430 FLOAT ASM.FLOAT ASM.
-
223130237 CAP,CAP,
-
233130020 PACKING,FLOAT CHAMBERPACKING,FLOAT CHAMBER
-
243131385 VALVE-NEEDLE, [2.5]VALVE-NEEDLE, [2.5]
-
253130018 ARM,FLOATARM,FLOAT
-
263130361 PIN, FLOATPIN, FLOAT
-
273130047 WASHERWASHER
-
283131404 ASM-CARBURETOR [INCL. 1-31]ASM-CARBURETOR [INCL. 1-31]
-
293130596 RING,MAIN JETRING,MAIN JET
-
303130429 NEEDLE JET ASM.NEEDLE JET ASM.
-
313130003 E-RINGE-RING
