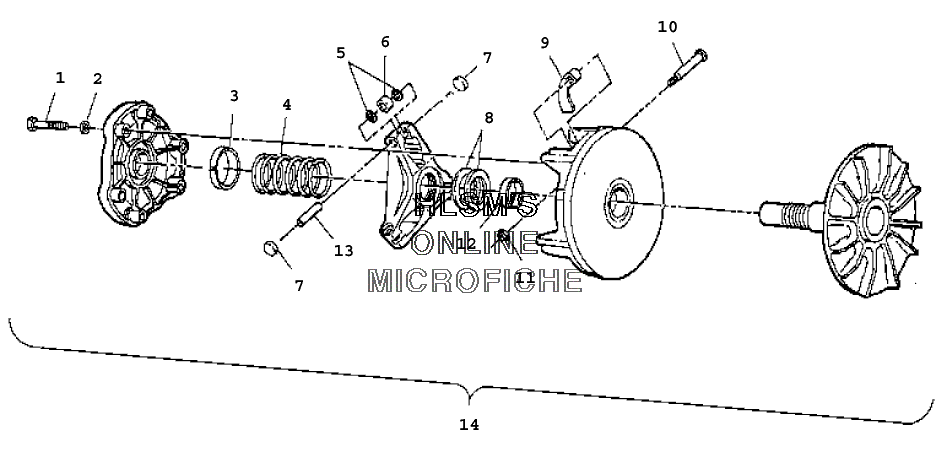

CLUTCH - DRIVE для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска
-
№АртикулНазвание
-
17512176 SCREWSCREW
-
27552801 LOCK WASHERLOCK WASHER
-
33576510 BEARING, COVER,BEARING, COVER,
-
47041132 SPRING-CLUTCHSPRING-CLUTCH
-
55430945 WASHER,WASHER,
-
61321457 ROLLER/BUSHING ASM.(6)ROLLER/BUSHING ASM.(6)
-
75431936 BUTTON,CLUTCHBUTTON,CLUTCH
-
85210752 SPACER [.020]SPACER [.020]
-
85242981 SPACER [.025]SPACER [.025]
-
85210753 SPACER [.032]SPACER [.032]
-
85210754 SPACER [.050]SPACER [.050]
-
95630509 WEIGHT, SHIFT S-55(6) [S-55]WEIGHT, SHIFT S-55(6) [S-55]
-
107512266 BOLT,SPECIALBOLT,SPECIAL
-
117541906 NUT FLEX LOCNUT FLEX LOC
-
123576504 BUSHING, DRIVENBUSHING, DRIVEN
-
135020422 PIN-ROLLER,PIN-ROLLER,
-
141321632 ASM-DRIVE CLUTCH,WIDE [INCL. ALL LESS 4,9] [IF BUILT BEFORE 2/01/02]ASM-DRIVE CLUTCH,WIDE [INCL. ALL LESS 4,9] [IF BUILT BEFORE 2/01/02]
-
141322302 ASM-DRIVE CLUTCH,ATV,BASIC [INCL. ALL LESS 4,9] [IF BUILT AFTER 2/01/02]ASM-DRIVE CLUTCH,ATV,BASIC [INCL. ALL LESS 4,9] [IF BUILT AFTER 2/01/02]
