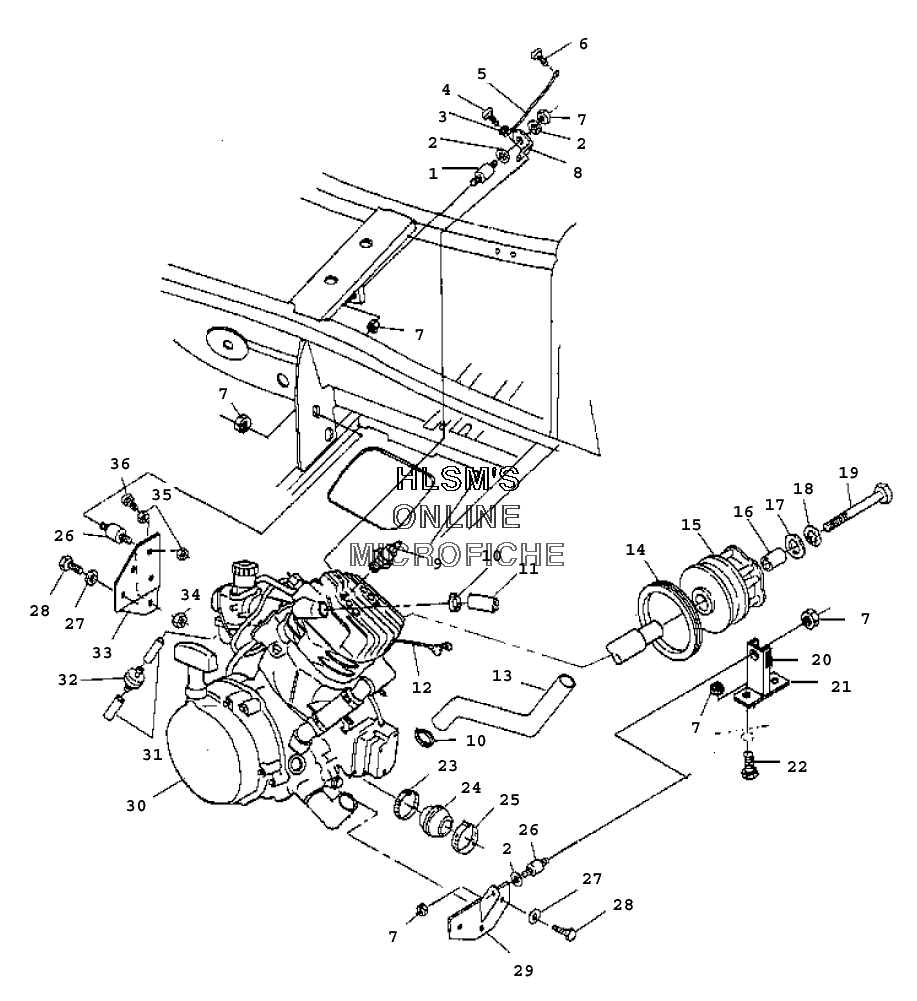

MOUNTING - ENGINE для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13110038 MT.,RUBBER,ENG.MT.,RUBBER,ENG.
-
27555823 WASHERWASHER
-
37552901 LOCK WASHERLOCK WASHER
-
47512315 BOLTBOLT
-
54010132 CABLE,GND-ENGINECABLE,GND-ENGINE
-
67517386 SCREW,SCREW,
-
77547108 NUTNUT
-
85242692-067 BRKT,ENG.MT,TOP,BLK,400BRKT,ENG.MT,TOP,BLK,400
-
93070156 SPARKPLUGSPARKPLUG
-
107080614 CLAMP,HOSE,CLAMP,HOSE,
-
124010218 CABLE-RED,SOL/STRTR,DBLBOOT34''CABLE-RED,SOL/STRTR,DBLBOOT34''
-
165430261 BUSHING - RETAINING BOLTBUSHING - RETAINING BOLT
-
175210748 WASHERWASHER
-
187575202 WASHER LOCKWASHER LOCK
-
197512566 BOLTBOLT
-
208360012-04 EDGE TRIM-BLACK,04 CMEDGE TRIM-BLACK,04 CM
-
211040687-067 MOUNT,FR.ENGINE,BLK.MOUNT,FR.ENGINE,BLK.
-
227515481 BOLTBOLT
-
237080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
245411681 BOOT,CLUTCH INLET,2.4X2.1X5.2BOOT,CLUTCH INLET,2.4X2.1X5.2
-
257080656 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
263110042 MOUNT,RUBBER,ENG.MOUNT,RUBBER,ENG.
-
277552603 WASHERWASHER
-
287512490 SCREWSCREW
-
291040231-067 MOUNT,ENGINEMOUNT,ENGINE
-
303085821 ENGINE - SHORT BLOCK[EC38PLE09] SEE NOTEENGINE - SHORT BLOCK[EC38PLE09] SEE NOTE
-
318360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
327051011 VENT,CHECKVALVEVENT,CHECKVALVE
-
335242463-067 BRKT,ENG.MT,REAR,BLKBRKT,ENG.MT,REAR,BLK
-
347542411 NUT LOCKNUT LOCK
-
357542432 NUT, JAMNUT, JAM
-
363110048 MT,TORQUE STOP,RUBBERMT,TORQUE STOP,RUBBER
