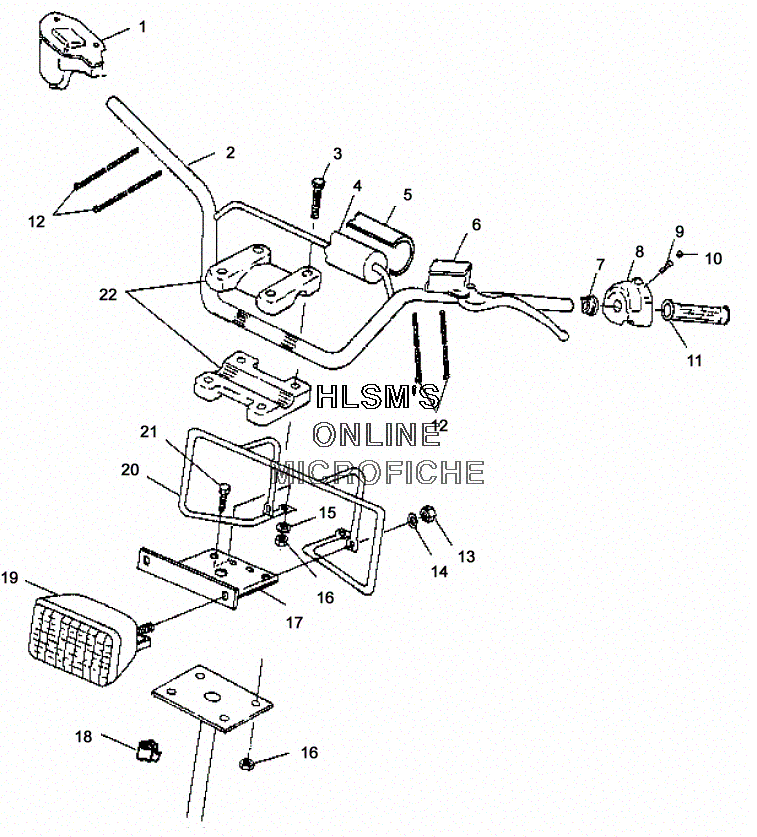

HANDLEBAR - HEADLIGHT для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска
-
№АртикулНазвание
-
21820934-067 HANDLEBAR,BLKHANDLEBAR,BLK
-
37515189 SCREW *SCREW *
-
45521181 PAD, HANDLEBARPAD, HANDLEBAR
-
52682454 COVER PAD,HANDLEBARCOVER PAD,HANDLEBAR
-
75433903 SPACER-SWITCH,LH,99SPACER-SWITCH,LH,99
-
84010423 SWITCH-HANDLEBAR,HI/LO/OFF,2PSWITCH-HANDLEBAR,HI/LO/OFF,2P
-
97517625 SCREW,SETSCREW,SET
-
105432952 PLUG,HOLEPLUG,HOLE
-
115433834-070 GRIP-HNDLBAR,7/8 ID,ATV,BLACKGRIP-HNDLBAR,7/8 ID,ATV,BLACK
-
127080138 STRAP PANDUITSTRAP PANDUIT
-
137542324 NUTNUT
-
147558402 WASHER STEELWASHER STEEL
-
157558301 WASHERWASHER
-
167542122 NUT-LOCKNUT-LOCK
-
175241973-067 BRKT,H/L,BLKBRKT,H/L,BLK
-
187080631 CLIP,CABLE RETAIN,CLIP,CABLE RETAIN,
-
192431016 H/L ASM,35/35W,BOTT.MT.H/L ASM,35/35W,BOTT.MT.
-
194030061 BULB,H/L,30/30 W.BULB,H/L,30/30 W.
-
201040579-067 GUARD,H/L,BLK.GUARD,H/L,BLK.
-
217512240 BOLTBOLT
-
225630616-067 BLOCK,H'BAR RETAINER,BLKBLOCK,H'BAR RETAINER,BLK
-
222200774 KIT-HANDLE BAR BLOCK [INCL. 3,16,22]KIT-HANDLE BAR BLOCK [INCL. 3,16,22]
