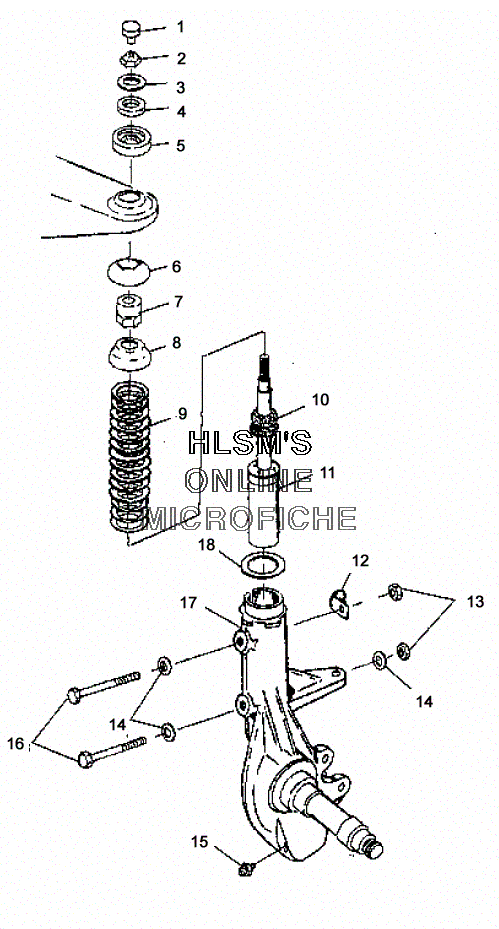

SUSPENSION - FRONT STRUT для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска
-
№АртикулНазвание
-
17052028 GROMMET-TANK FITTINGGROMMET-TANK FITTING
-
27547104 NUTNUT
-
37555749 WASHERWASHER
-
45810291 SPACER, RUBBERSPACER, RUBBER
-
55432872 PIVOT,BALL,TOPPIVOT,BALL,TOP
-
65432871 PIVOT,BALL,BOTTOMPIVOT,BALL,BOTTOM
-
75132062 SPACER-1/2-20,STRUTSPACER-1/2-20,STRUT
-
85243364 RETAINER-SPRING,STRUTRETAINER-SPRING,STRUT
-
97041868-067 SPRING-COMP,55-80#/IN,13.10BLKSPRING-COMP,55-80#/IN,13.10BLK
-
105411608 BUMPER-MCU,17.80MM IDBUMPER-MCU,17.80MM ID
-
117041762 STRUT-FRONT,18X30MM,184.7MM LTSTRUT-FRONT,18X30MM,184.7MM LT
-
127080367 CLAMP, CABLE,CLAMP, CABLE,
-
137542324 NUTNUT
-
147558402 WASHER STEELWASHER STEEL
-
157080306 FITTING,LUBE.W/BALL CK.FITTING,LUBE.W/BALL CK.
-
167515339 BOLTBOLT
-
175131039 SUPPORT,LH,STRUT/SPINDLESUPPORT,LH,STRUT/SPINDLE
-
175131040 SUPPORT,RH,STRUT/SPINDLESUPPORT,RH,STRUT/SPINDLE
-
185211115 WASHER,SPRING RETAINERWASHER,SPRING RETAINER
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BUMPER AND SHIELDS - FRONT
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- COOLING SYSTEM
- CRANKCASE W/ CYLINDER
- CRANKSHAFT W/ PISTON
- DECALS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS - FRAME
- FENDER - REAR W/ SEAT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR - HEADLIGHT
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- SHOCK (FOX/GAS/RESERVOIR)
- SHOCK VALVING
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- • SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
