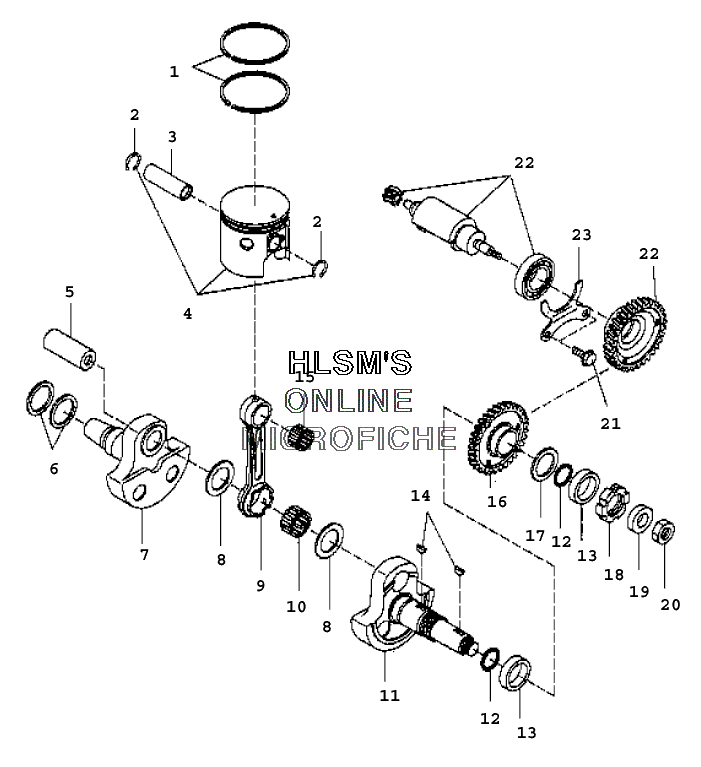

CRANKSHAFT W/ PISTON для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13084737 RING,PISTON, [STD]RING,PISTON, [STD]
-
13084738 RING,PISTON, (0.25MM O/S)RING,PISTON, (0.25MM O/S)
-
13084739 RING,PISTON, (0.50MM O/S)RING,PISTON, (0.50MM O/S)
-
23084167 CLIP,CLIP,
-
33083838 PIN, PISTON *PIN, PISTON *
-
43085886 PISTON SET (STD) [INCL. 2]PISTON SET (STD) [INCL. 2]
-
43085887 PISTON SET (0.25MM O/S) [INCL. 2]PISTON SET (0.25MM O/S) [INCL. 2]
-
43085888 PISTON SET (0.50MM O/S) [INCL. 2]PISTON SET (0.50MM O/S) [INCL. 2]
-
53084152 PIN, CRANK #1PIN, CRANK #1
-
63086765 SPACER-1 [0.2]SPACER-1 [0.2]
-
63086766 SPACER-2 [0.3]SPACER-2 [0.3]
-
73084777 CRANKSHAFT #2,PTO SIDECRANKSHAFT #2,PTO SIDE
-
83084155 SPACER, CRANK PINSPACER, CRANK PIN
-
93084153 ROD, CONNECTINGROD, CONNECTING
-
103084154 BEARING, LARGE ENDBEARING, LARGE END
-
113084776 CRANKSHAFT ASM. * [INCL. 5,7,8,9,10,11]CRANKSHAFT ASM. * [INCL. 5,7,8,9,10,11]
-
113084149 CRANKSHAFT #1,MAG SIDECRANKSHAFT #1,MAG SIDE
-
123084160 O RINGO RING
-
133086763 COLLARCOLLAR
-
143080130 KEY WOODRUFFKEY WOODRUFF
-
153084168 BEARING, SMALL ENDBEARING, SMALL END
-
163084156 GEAR, DRIVE *GEAR, DRIVE *
-
173086764 WASHER-GUIDEWASHER-GUIDE
-
183086762 NUT,SLITNUT,SLIT
-
193086767 WASHERWASHER
-
203083905 LOCKNUTLOCKNUT
-
213084174 BOLT, FLANGEBOLT, FLANGE
-
223087042 BALANCERBALANCER
-
233086768 PLATEPLATE
