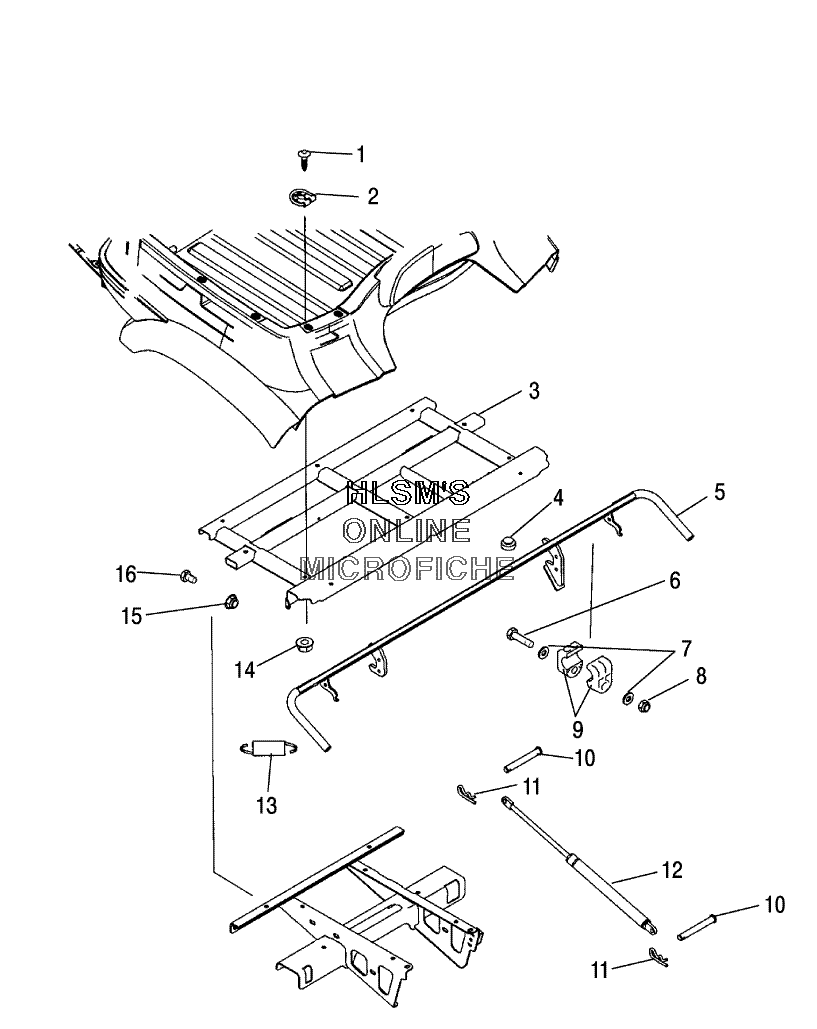

BOX FRAME для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска
-
№АртикулНазвание
-
17518235 SCREWSCREW
-
27081101 RING TIE DOWNRING TIE DOWN
-
31014655-067 WELD BOX FRAME ATP KITWELD BOX FRAME ATP KIT
-
45412067 BUMPER RUBBERBUMPER RUBBER
-
51014146-067 WELD BOX LATCH (REAR/BLACK)WELD BOX LATCH (REAR/BLACK)
-
67515319 BOLTBOLT
-
77558402 WASHER FLATWASHER FLAT
-
87542324 NUT NYLOKNUT NYLOK
-
95434226 BUSHING BOX LATCHBUSHING BOX LATCH
-
107661163 PIN CLEVISPIN CLEVIS
-
117661644 PIN HITCHPIN HITCH
-
127042268 SHOCK DUMP BOXSHOCK DUMP BOX
-
137041687 SPRINGSPRING
-
147542343 NUT FLANGENUT FLANGE
-
157542449 NUT FLANGE LOCKNUT FLANGE LOCK
-
167512492 SCREWSCREW
