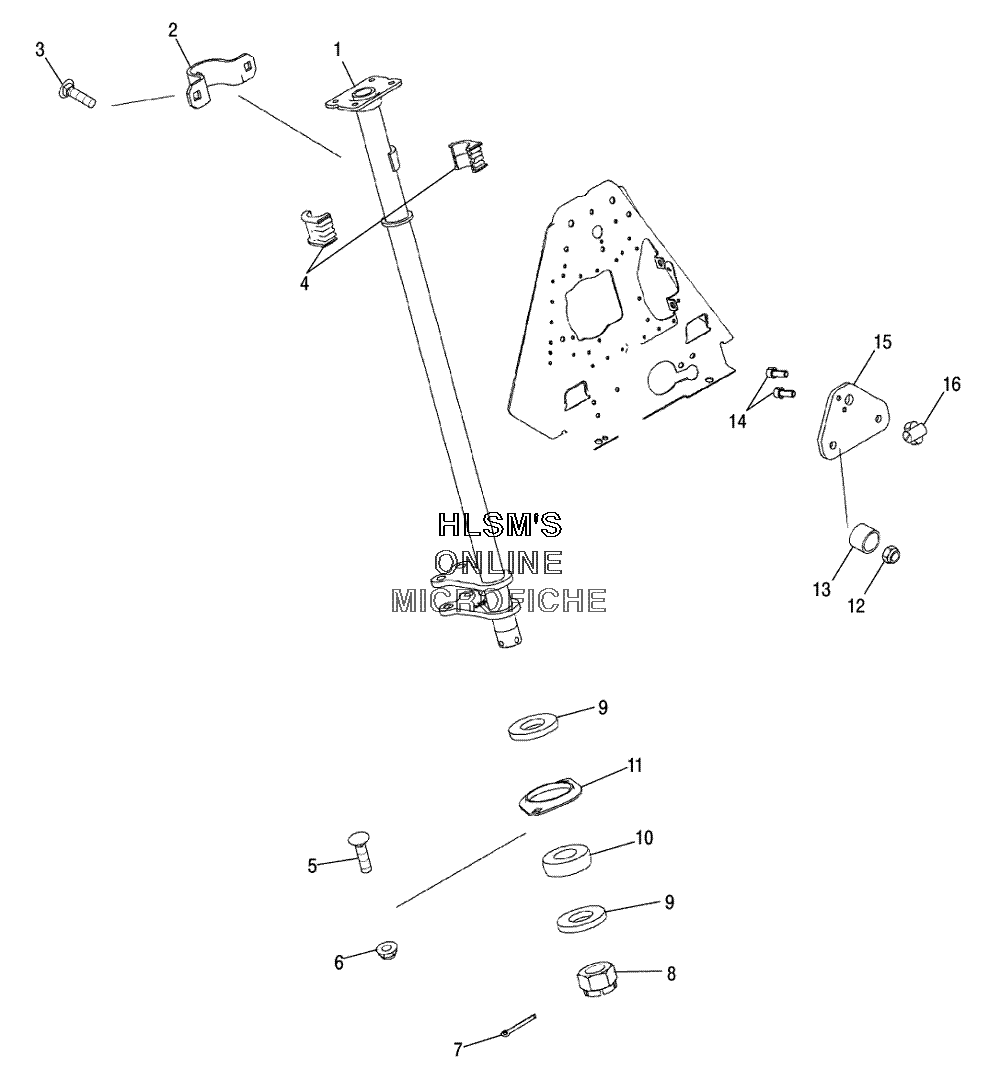

STEERING POST для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска
-
№АртикулНазвание
-
11014892-067 POST STEERING WITH LOCK (BLACK)POST STEERING WITH LOCK (BLACK)
-
25134869 BRACKET (UPPER)BRACKET (UPPER)
-
37515383 BOLT CARRIAGEBOLT CARRIAGE
-
45433866 BUSHING (UPPER)BUSHING (UPPER)
-
57517428 BOLTBOLT
-
67542343 NUT FLANGENUT FLANGE
-
77661633 PIN COTTERPIN COTTER
-
87547158 NUT SLOTTED HEXAGONNUT SLOTTED HEXAGON
-
97556162 BUSHINGBUSHING
-
103514352 BEARINGBEARING
-
115222393 FLANGETTE (2 BOLT)FLANGETTE (2 BOLT)
-
127542324 NUT NYLOKNUT NYLOK
-
135134868 GUARD NUT TAMPER RESISTANTGUARD NUT TAMPER RESISTANT
-
147518457 SCREW PIN IN HEADSCREW PIN IN HEAD
-
155248556-067 PLATE STEERING LOCK (BLACK)PLATE STEERING LOCK (BLACK)
-
167081224 STEERING LOCKSTEERING LOCK
