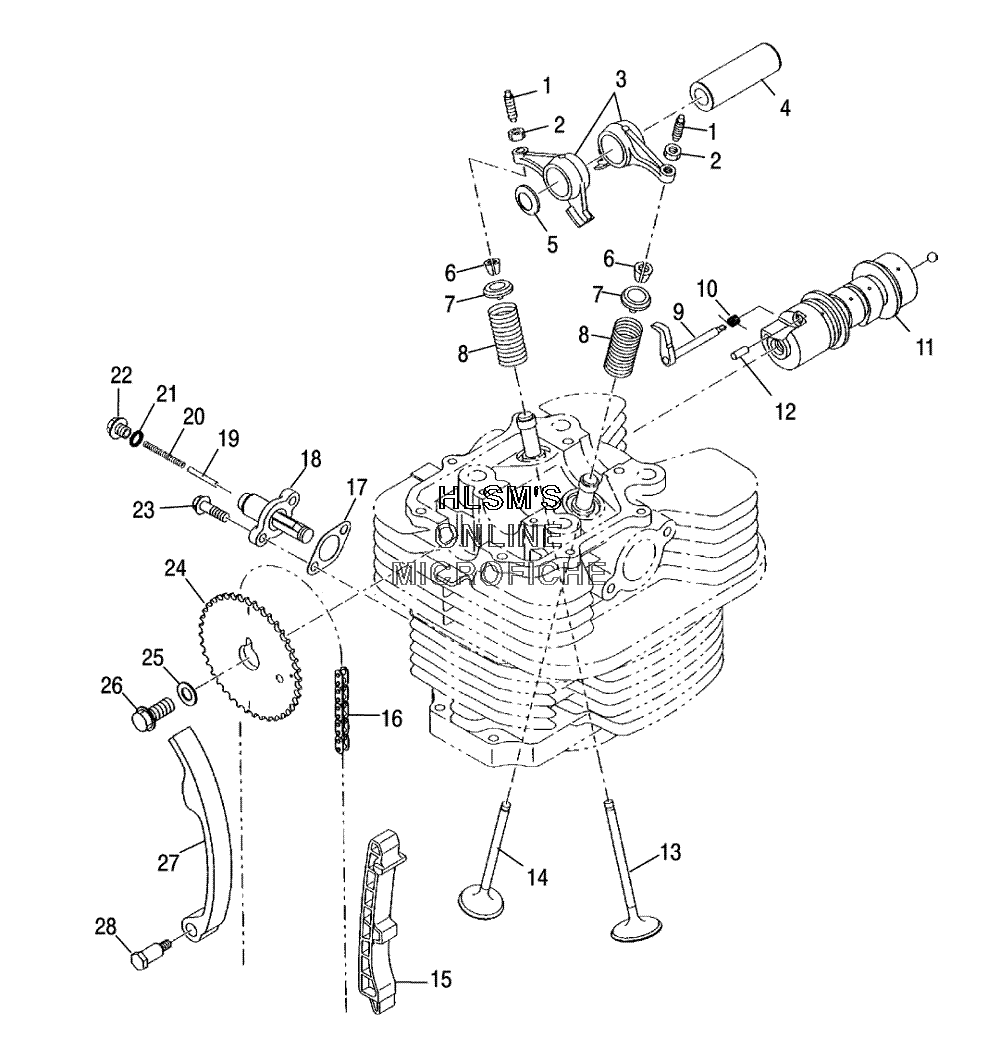

CAMSHAFT W/ VALVE ASSY. для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска
-
№АртикулНазвание
-
13084911 SCREW ADJUSTERSCREW ADJUSTER
-
23084912 NUTNUT
-
33084910 ROCKER ARM INTAKE ASSY (INCL. 1-3)ROCKER ARM INTAKE ASSY (INCL. 1-3)
-
43087053 SHAFT ROCKERSHAFT ROCKER
-
53085836 WASHER WAVEWASHER WAVE
-
63084908 COLLET VALVECOLLET VALVE
-
73087203 RETAINER VALVE SPRINGRETAINER VALVE SPRING
-
83087248 SPRING VALVESPRING VALVE
-
93086439 LEVER RELEASE ASSYLEVER RELEASE ASSY
-
103086804 SPRING RETURNSPRING RETURN
-
113087247 CAMSHAFT ASSY (INCL. 9-12)CAMSHAFT ASSY (INCL. 9-12)
-
123084899 PIN DOWELPIN DOWEL
-
133085778 VALVE INTAKEVALVE INTAKE
-
143086441 VALVE EXHAUSTVALVE EXHAUST
-
153086445 GUIDE CHAINGUIDE CHAIN
-
163086444 CHAIN TIMINGCHAIN TIMING
-
173086448 GASKET TENSIONERGASKET TENSIONER
-
183086493 TENSIONER ASSY (INCL. 19-22)TENSIONER ASSY (INCL. 19-22)
-
193087132 PINPIN
-
203087131 SPRING TENSIONERSPRING TENSIONER
-
213087130 GASKET PLUGGASKET PLUG
-
223087129 PLUGPLUG
-
233083361 BOLT FLANGEBOLT FLANGE
-
243086443 SPROCKETSPROCKET
-
253087249 WASHERWASHER
-
263086449 BOLT FLANGEBOLT FLANGE
-
273086446 LEVER ASSYLEVER ASSY
-
283084924 BOLT, PIVOT LEVER ASSYBOLT, PIVOT LEVER ASSY
