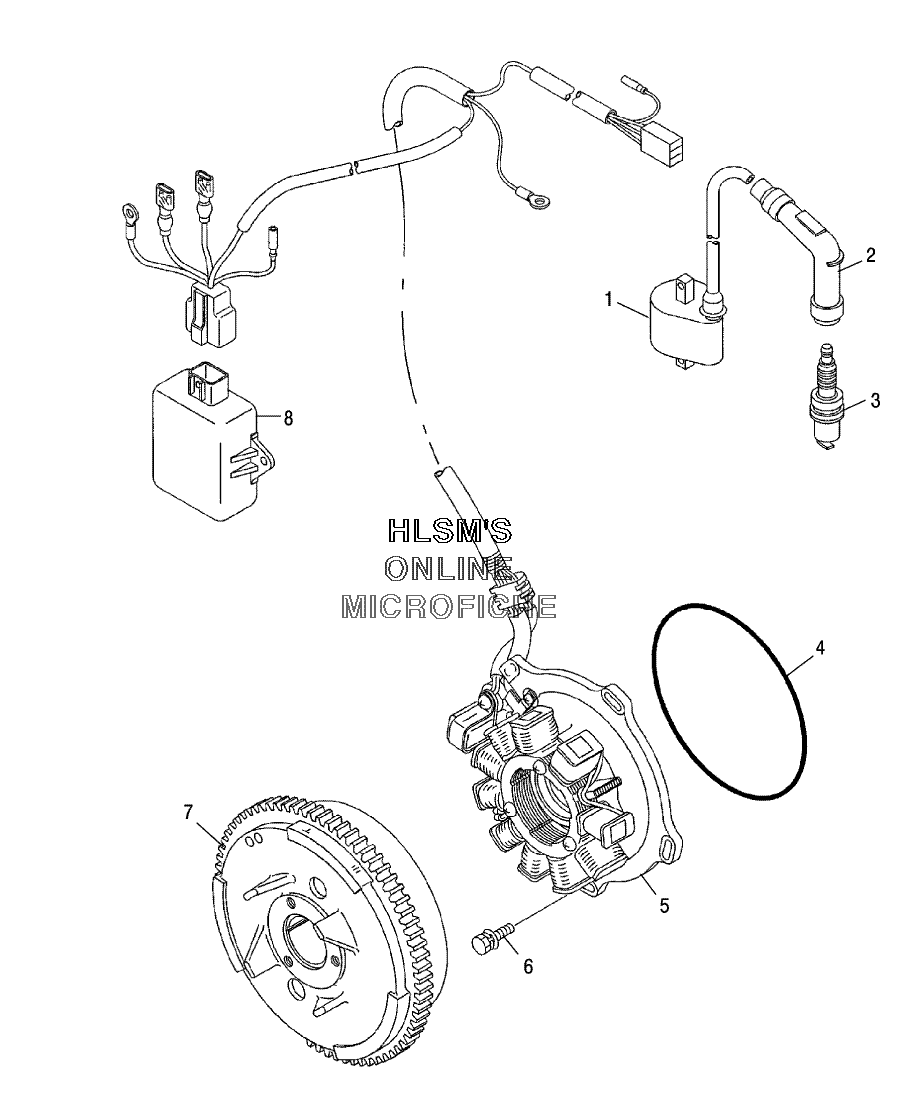

MAGNETO для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска
-
№АртикулНазвание
-
13087036 IGNITION COIL ASSY (INCL. 2)IGNITION COIL ASSY (INCL. 2)
-
23087037 CAP SPARK PLUGCAP SPARK PLUG
-
33070172 SPARK PLUG BKR6ESPARK PLUG BKR6E
-
43084978 O-RINGO-RING
-
53089275 STATOR PLATE ASSYSTATOR PLATE ASSY
-
63081657 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73089717 FLYWHEELFLYWHEEL
-
83089718 CDI SYSTEMCDI SYSTEM
