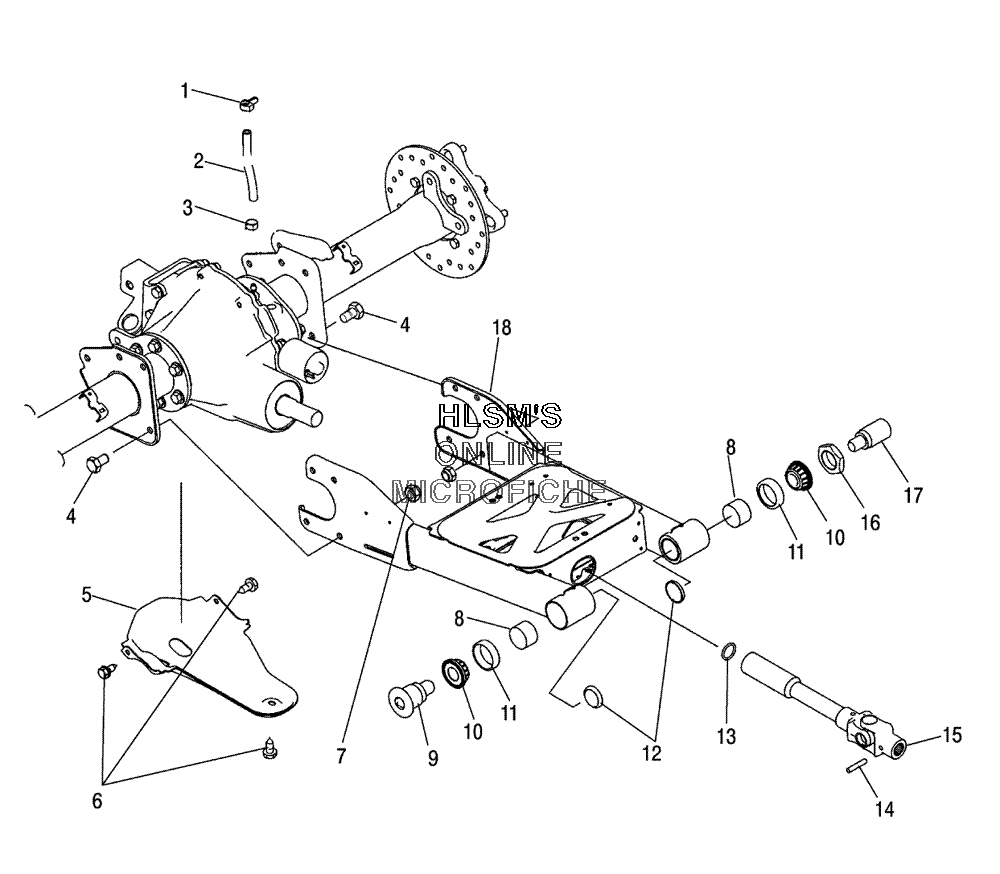

SUSPENSION - REAR SWING ARM W/ AXLE для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
28450003 LINE FUELLINE FUEL
-
37080307 CLAMP HOSECLAMP HOSE
-
47512457 BOLTBOLT
-
55246228-067 PLATE SKID HOUSING (REAR/BLACK)PLATE SKID HOUSING (REAR/BLACK)
-
67512399 SCREWSCREW
-
77542439 NUT NYLOKNUT NYLOK
-
83514398 BEARING TAPE ROLLER CUP (RED)BEARING TAPE ROLLER CUP (RED)
-
95133389 PIVOT THREADED SWINGARM (RIGHT)PIVOT THREADED SWINGARM (RIGHT)
-
103514399 BEARING TAPE ROLLER CONE (RED)BEARING TAPE ROLLER CONE (RED)
-
115812447 FOAMFOAM
-
125246225 PLUGPLUG
-
135412202 O-RINGO-RING
-
147661913 PIN SPRINGPIN SPRING
-
151380195 PROP SHAFT ASSY (REAR)PROP SHAFT ASSY (REAR)
-
165133387 NUT JAMNUT JAM
-
175133388 PIVOT THREADED (LEFT)PIVOT THREADED (LEFT)
-
181541781 SWINGARM, ASSY (INCL. 8, 10-12)SWINGARM, ASSY (INCL. 8, 10-12)
