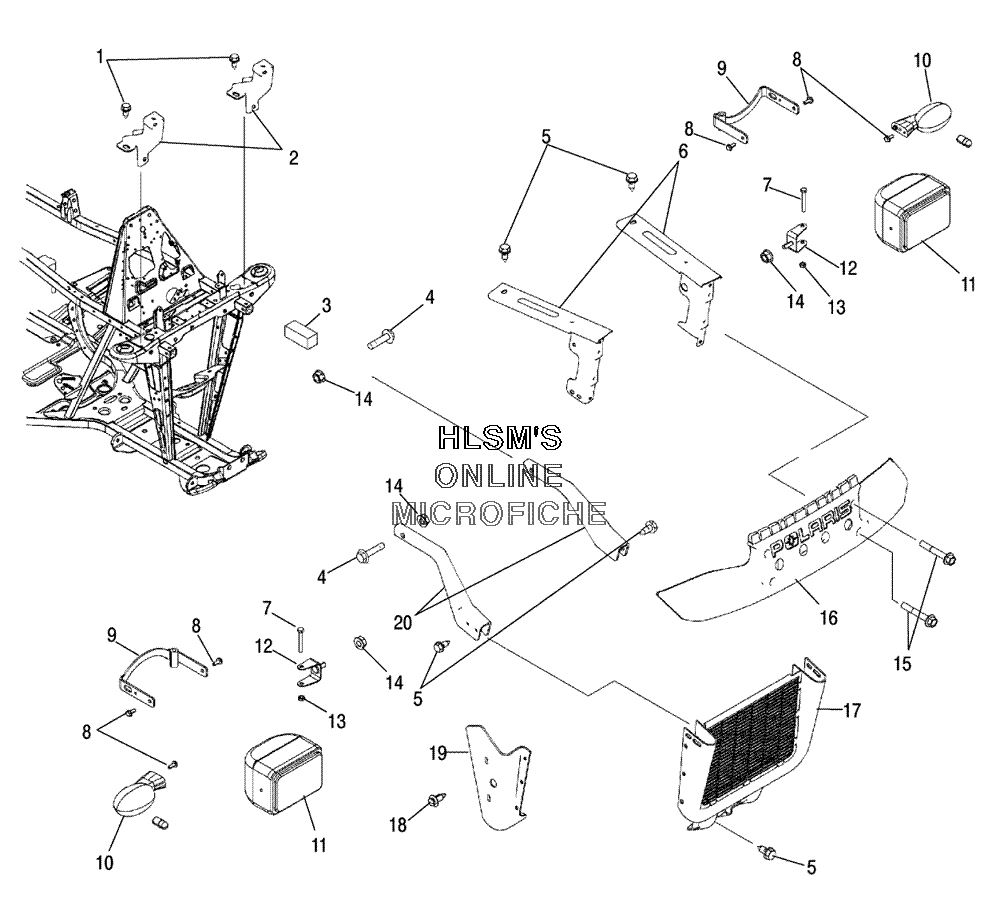

BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY. для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска`
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
21013744-067 WELD SUPPORT RACK (FRONT/LEFT/BLACK)WELD SUPPORT RACK (FRONT/LEFT/BLACK)
-
21013746-067 WELD SUPPORT RACK (FRONT/RIGHT/BLACK)WELD SUPPORT RACK (FRONT/RIGHT/BLACK)
-
35810467 PLUG FRAMEPLUG FRAME
-
47518341 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
57515399 SCREWSCREW
-
61014099-067 WELD RACK MOUNT (LEFT/BLACK)WELD RACK MOUNT (LEFT/BLACK)
-
61014101-067 WELD RACK MOUNT (RIGHT/BLACK)WELD RACK MOUNT (RIGHT/BLACK)
-
77517238 SCREWSCREW
-
87517915 SCREWSCREW
-
91014930-067 WELD BRACKET HEADLIGHT TURN (BLACK)WELD BRACKET HEADLIGHT TURN (BLACK)
-
102410490 SIGNAL INC (FRONT/LEFT/BLACK)SIGNAL INC (FRONT/LEFT/BLACK)
-
102410491 SIGNAL INC (FRONT/RIGHT/BLACK)SIGNAL INC (FRONT/RIGHT/BLACK)
-
104010742 BULB SINGLE FILAMENTBULB SINGLE FILAMENT
-
112410540 HEADLIGHT ASSYHEADLIGHT ASSY
-
125248553 BRACKET WITH STUDBRACKET WITH STUD
-
137542153 NUT NYLOK FLANGEDNUT NYLOK FLANGED
-
147542343 NUT FLANGENUT FLANGE
-
157517977 BOLT FLANGEBOLT FLANGE
-
165432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
171013772-067 WELD BRUSH GUARD (BLACK)WELD BRUSH GUARD (BLACK)
-
187661855 RIVET TUFLOK (.315 .325X.787)RIVET TUFLOK (.315 .325X.787)
-
195433923 SHIELD RADIATOR SIDE (LEFT)SHIELD RADIATOR SIDE (LEFT)
-
195433924 SHIELD RADIATOR SIDE (RIGHT)SHIELD RADIATOR SIDE (RIGHT)
-
205244729-067 EXTENSION FRAME (LEFT/BLACK)EXTENSION FRAME (LEFT/BLACK)
-
205244730-067 EXTENSION FRAME (RIGHT/BLACK)EXTENSION FRAME (RIGHT/BLACK)
