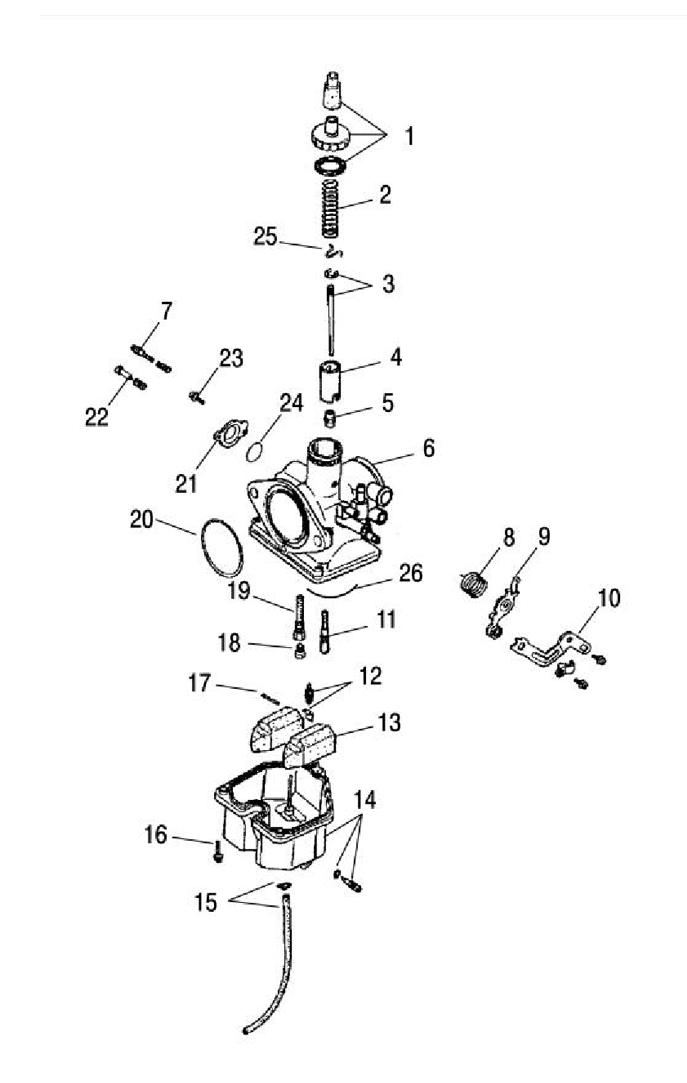

CARBURETOR для Polaris SAWTOOTH 200 (A07SB20AA) (RED) - 2007 года выпуска
-
№АртикулНазвание
-
10452544 CAP ASM.CAP ASM.
-
20453758 SPRING-CARBSPRING-CARB
-
30452551 JET NEEDLE ASM.JET NEEDLE ASM.
-
40453525 VALVE-THROTTLE,(3.5)VALVE-THROTTLE,(3.5)
-
50452539 NEEDLE-JETNEEDLE-JET
-
60453757 ASM., CARBURETORASM., CARBURETOR
-
70452537 SCREW ASM.SCREW ASM.
-
80452543 SPRINGSPRING
-
90452538 CHOKE-LEVERCHOKE-LEVER
-
100453080 SUPPORT-CABLESUPPORT-CABLE
-
110453524 JET-PILOT,#40JET-PILOT,#40
-
120452533 VALVE-FLOATVALVE-FLOAT
-
130452546 FLOATFLOAT
-
140452535 ASM-FLOATBODYASM-FLOATBODY
-
150452552 DRAIN TUBE ASM.DRAIN TUBE ASM.
-
160452540 SCREW ASM.SCREW ASM.
-
170452534 PIN-FLOATPIN-FLOAT
-
183131608 JET-MAIN,98 KEIHINJET-MAIN,98 KEIHIN
-
190452545 VALVE-NEEDLEVALVE-NEEDLE
-
200452536 O-RINGO-RING
-
210452547 COVER-DIAPHRAGMCOVER-DIAPHRAGM
-
220452549 SCREW ASM.SCREW ASM.
-
230452541 SCREW ASM.SCREW ASM.
-
240452550 O-RINGO-RING
-
250452542 CLIP-NEEDLE (USE POSITION #4)CLIP-NEEDLE (USE POSITION #4)
-
260453032 GASKET-CARB,FLOAT BOWL,PHOENIXGASKET-CARB,FLOAT BOWL,PHOENIX
