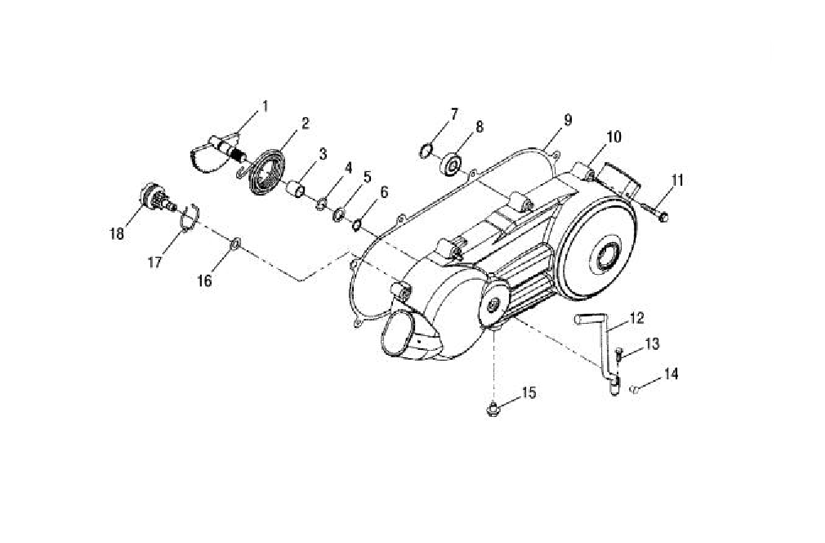

CRANKCASE COVER - LEFT для Polaris SAWTOOTH 200 (A07SB20AA) (RED) - 2007 года выпуска
-
№АртикулНазвание
-
10453548 SPINDLE-KICK STARTSPINDLE-KICK START
-
20452360 SPRING-KICK STARTSPRING-KICK START
-
30452361 SPACER-KICK STARTSPACER-KICK START
-
40452394 O-RINGO-RING
-
50452363 WASHER-FLATWASHER-FLAT
-
60452364 CLIP-RETAINERCLIP-RETAINER
-
70452339 CLIP RETAINERCLIP RETAINER
-
80453978 BEARING-BALLBEARING-BALL
-
90452328 GASKET-CRANK CASE COVERGASKET-CRANK CASE COVER
-
100453450 COVER-CLUTCH, LEFT HANDCOVER-CLUTCH, LEFT HAND
-
110452331 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
120453219 ASM-KICK STARTASM-KICK START
-
130451704 BOLT,HEX FLANGEBOLT,HEX FLANGE
-
140451746 CAP-SHAFT,KICK STARTERCAP-SHAFT,KICK STARTER
-
150452126 BOLT-HEX,WASHER FACEBOLT-HEX,WASHER FACE
-
160452367 WASHER-FLATWASHER-FLAT
-
170452366 SPRING-KICK START GEARSPRING-KICK START GEAR
-
180452365 GEAR-KICK START,DRIVENGEAR-KICK START,DRIVEN
