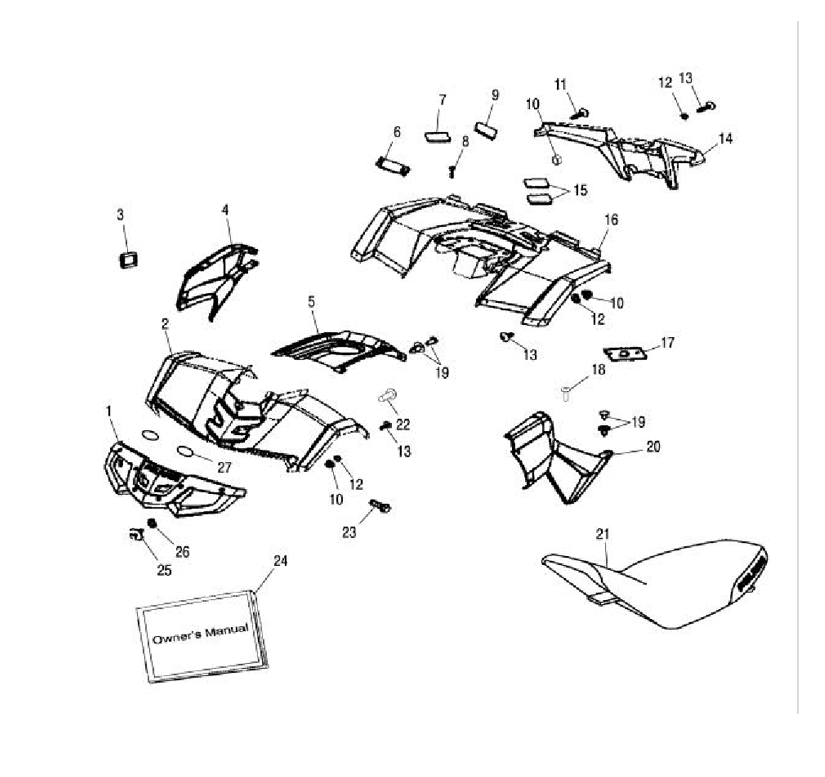

FENDER - REAR W/ SEAT для Polaris SAWTOOTH 200 (A07SB20AA) (RED) - 2007 года выпуска`
-
№АртикулНазвание
-
10453056-070 BUMPER-FRONT, BLACKBUMPER-FRONT, BLACK
-
20453797-293 ASM-CAB,FRT,W/WRN DECALS,REDASM-CAB,FRT,W/WRN DECALS,RED
-
30452662 BOOT-RUBBER,SHIFTBOOT-RUBBER,SHIFT
-
40453060-293 PANEL-SIDE,SUV, RIGHT HAND,REDPANEL-SIDE,SUV, RIGHT HAND,RED
-
50453067-070 COVER-TANK, BLACKCOVER-TANK, BLACK
-
60452660 STRAP-BATTERY,RUBBERSTRAP-BATTERY,RUBBER
-
70452778 PAD-RUBBER,BATTERYPAD-RUBBER,BATTERY
-
80452215 BOLT-HEXBOLT-HEX
-
90450346 FOAM,BATTERY PADFOAM,BATTERY PAD
-
100450741 NUT,LOCKNUT,LOCK
-
110453258 SCREWSCREW
-
120450710 WASHER-PLAINWASHER-PLAIN
-
130450622 BOLT-PHILLIPSBOLT-PHILLIPS
-
140453063-070 FASCIA-REAR, BLACKFASCIA-REAR, BLACK
-
150452779 PAD-RUBBER,BATTERYPAD-RUBBER,BATTERY
-
160453795-293 ASM-CAB,REAR,SAWTH,W/WRN,REDASM-CAB,REAR,SAWTH,W/WRN,RED
-
170453229 FOAM-PAD,PROTECTORFOAM-PAD,PROTECTOR
-
180453259 BOLT-PHILLIPS W/WASHERBOLT-PHILLIPS W/WASHER
-
190451076 RIVET,PLASTICRIVET,PLASTIC
-
200453059-293 PANEL-SIDE,SUV, LEFT HAND,REDPANEL-SIDE,SUV, LEFT HAND,RED
-
210453066 BASE-SEAT W/FOAMBASE-SEAT W/FOAM
-
220450040 SCREW-TAPPINGSCREW-TAPPING
-
230450824 BOLT-W/WSHR,HEXBOLT-W/WSHR,HEX
-
249920895 MAN-OWN,07 SAWTOOTH 200 2X4MAN-OWN,07 SAWTOOTH 200 2X4
-
250450701 BOLT-HEX WASHERBOLT-HEX WASHER
-
260452337 WASHER-FLATWASHER-FLAT
-
270453798 O-RINGO-RING
