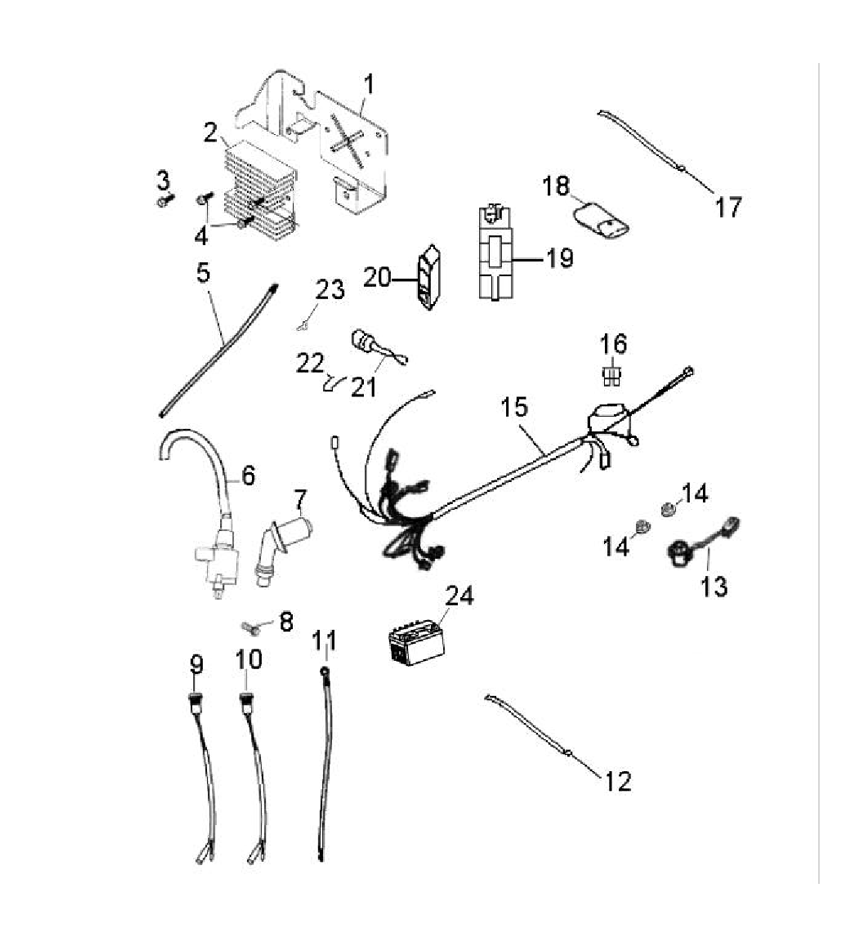

ELECTRICAL COMPONENTS для Polaris SAWTOOTH 200 (A07SB20AA) (RED) - 2007 года выпуска
-
№АртикулНазвание
-
10452764 BRACKET-ELECTRICBRACKET-ELECTRIC
-
20453375 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
30452917 BOLT-HEX,WASHER FACEBOLT-HEX,WASHER FACE
-
40450701 BOLT-HEX WASHERBOLT-HEX WASHER
-
50453296 CONNECTOR (INCL. 4)CONNECTOR (INCL. 4)
-
60452309 ASM-COIL,IGNITION (INCL. 7)ASM-COIL,IGNITION (INCL. 7)
-
70453364 CAP, SPARK PLUGCAP, SPARK PLUG
-
80452763 BOLT-HEX,SEMSBOLT-HEX,SEMS
-
90452766 INDICATOR-REVERSEINDICATOR-REVERSE
-
100453776 SWITCH-INDICATOR,NEUTRAL,PHXSWITCH-INDICATOR,NEUTRAL,PHX
-
110452767 ASM-CABLE,BATTERYASM-CABLE,BATTERY
-
120450559 STRAPSTRAP
-
130452761 ASM-STARTER RELAYASM-STARTER RELAY
-
140450150 NUT-FLANGE,HEXNUT-FLANGE,HEX
-
150453234 ASM-MAIN WIRE HARNESS,SAWTOOTHASM-MAIN WIRE HARNESS,SAWTOOTH
-
160452744 FUSE, MAIN HARNESSFUSE, MAIN HARNESS
-
170450721 STRAPSTRAP
-
180452762 POUCH, TOOLPOUCH, TOOL
-
190453100 CDICDI
-
200452759 PAD-RUBBERPAD-RUBBER
-
210453991 ASM-SWITCH,MAIN,SAWTOOTHASM-SWITCH,MAIN,SAWTOOTH
-
220450549 ASM-SWITCH,MAIN,PRED90ASM-SWITCH,MAIN,PRED90
-
230453372 KEY-BLANK,2006, LEFT HANDKEY-BLANK,2006, LEFT HAND
-
230453143 KEY-BLANK,2006KEY-BLANK,2006
-
240452746 BATTERY-YUASA,YTX12,YOUTHBATTERY-YUASA,YTX12,YOUTH
