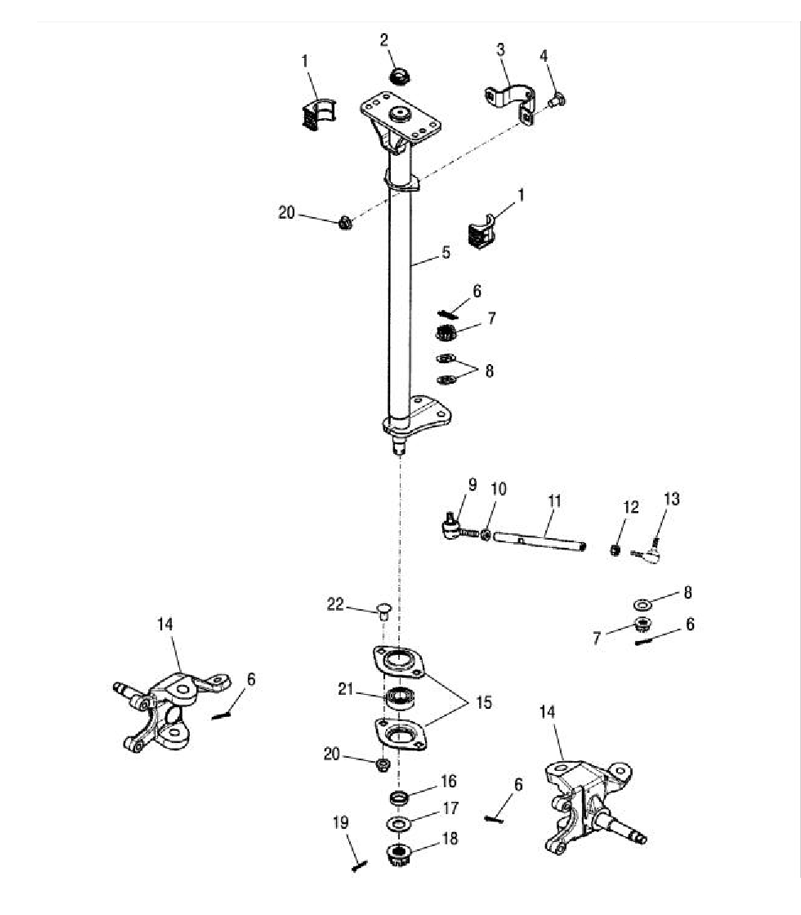

STEERING POST для Polaris SAWTOOTH 200 (A07SB20AA) (RED) - 2007 года выпуска
-
№АртикулНазвание
-
10452709 BUSHING-STEERING,UPPERBUSHING-STEERING,UPPER
-
20453125 CAP-RUBBERCAP-RUBBER
-
30452713 BRKT-BUSHING,UPPERBRKT-BUSHING,UPPER
-
40452716 BOLT-CARRIAGEBOLT-CARRIAGE
-
50453775-067 POST-STEERING,PHOENIX,BLK (INC 2)POST-STEERING,PHOENIX,BLK (INC 2)
-
60450719 PIN-COTTERPIN-COTTER
-
70450502 NUT-LOCKNUT-LOCK
-
80450279 WASHERWASHER
-
90453129 ROD END-LEFT HANDROD END-LEFT HAND
-
100453131 NUT-HEX, LEFT HANDNUT-HEX, LEFT HAND
-
110453802 TIE RODTIE ROD
-
120450224 NUT-HEXNUT-HEX
-
130453128 ROD END-RIGHT HANDROD END-RIGHT HAND
-
140452274 KNUCKLE-PHOENIX,LHKNUCKLE-PHOENIX,LH
-
140452275 KNUCKLE-PHOENIX,RHKNUCKLE-PHOENIX,RH
-
150452707 FLANGETTE-TWO BOLTFLANGETTE-TWO BOLT
-
160452719 SPACER-RINGSPACER-RING
-
170452671 WASHER-18X35X2.0WASHER-18X35X2.0
-
180452669 NUT-CASTLENUT-CASTLE
-
190450395 PIN-COTTERPIN-COTTER
-
200450882 NUT-LOCK,NYLONNUT-LOCK,NYLON
-
210453978 BEARING-BALLBEARING-BALL
-
220452776 BOLT-CARRIAGEBOLT-CARRIAGE
